1.2L REVOTRON ENGINE
142

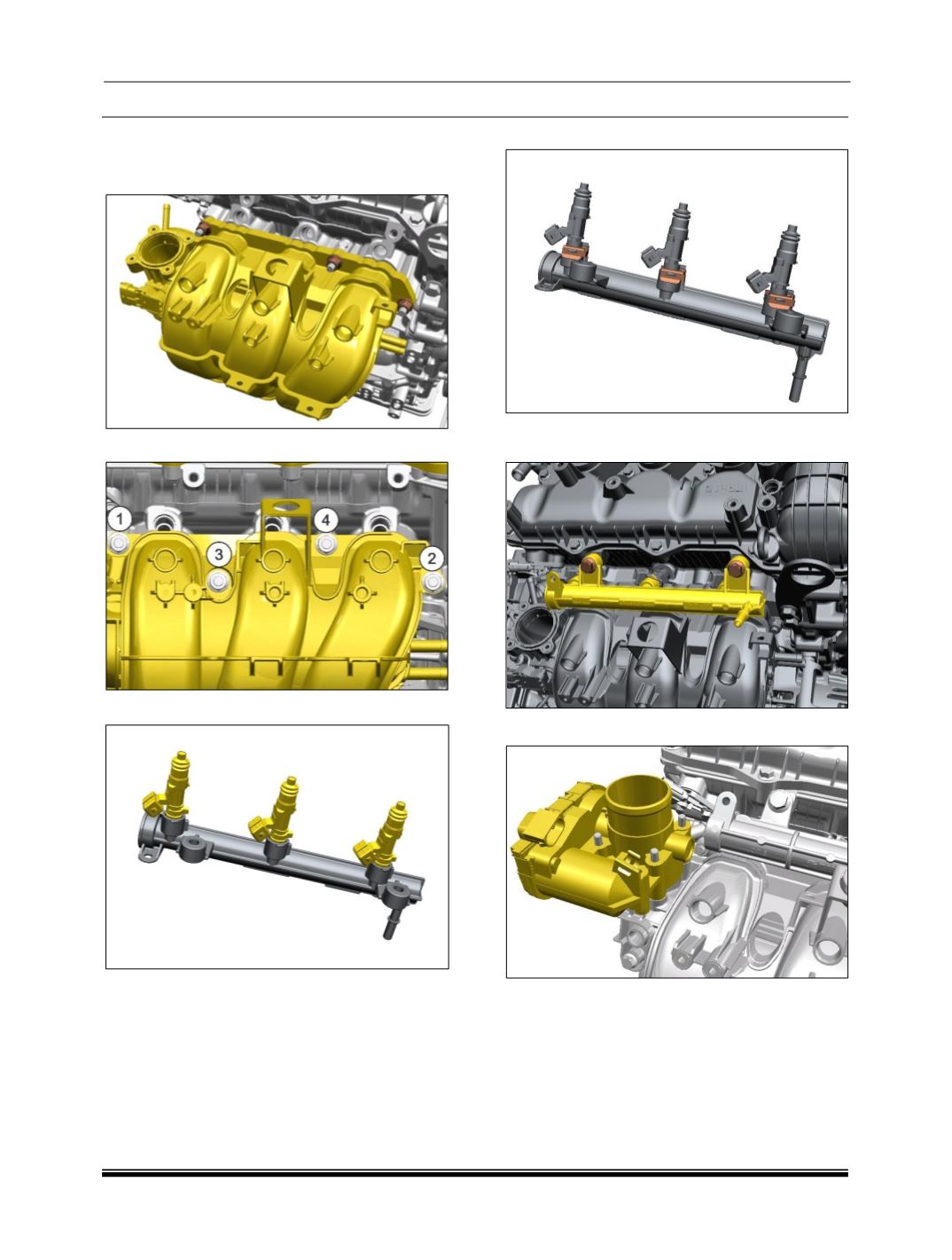

X. Assembly of Intake Manifold :
1. Refit the Intake Manifold by tightening the 5
no of fasteners.
2. Follow the tightening sequence.
3. Refit the Injectors.
4. Refit the Injector Retainer.
5. Assemble the Fuel Rail along with the
injectors.
6. Place the Electronic Throttle Body on studs.
