1.2L REVOTRON ENGINE

120

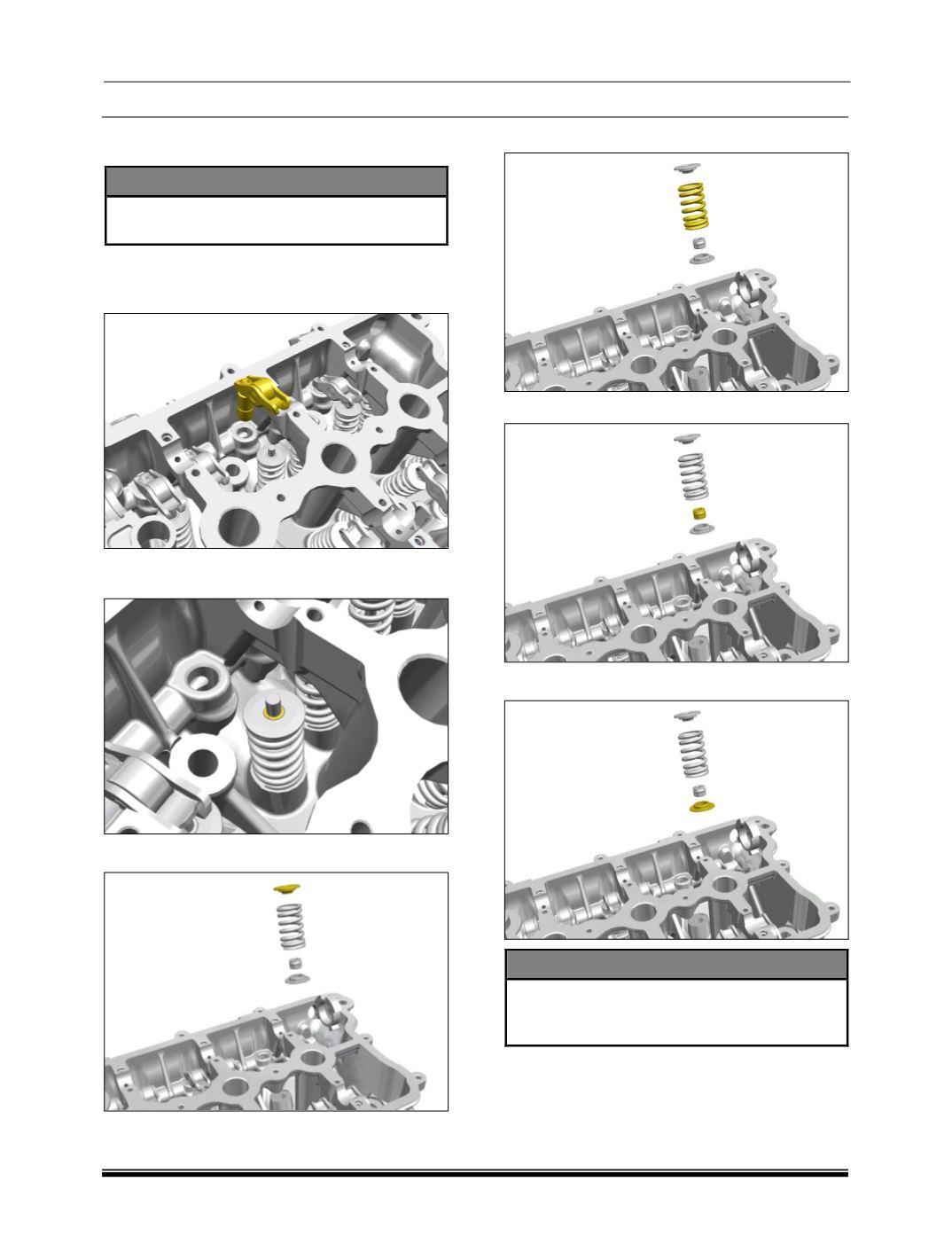

VIII. Removal of Cylinder Head Sub-

Assemblies

NOTE



To avoid damage to valve tips, do not

rotate the camshaft.

1. Remove the RFF along with Hydraulic Lash

Adjuster from the cylinder head as shown in

below figure.

2. Using Special Tool, to compress and remove

the valve spring lock halves.

3. Remove the valve spring retainer.

4. Remove the valve spring.

5. Remove the valve guide seal.

6. Remove the spring seat.

NOTE



Valve guide cannot be removed directly as

it is press fit, first tilt the head and remove

valves from bottom.
