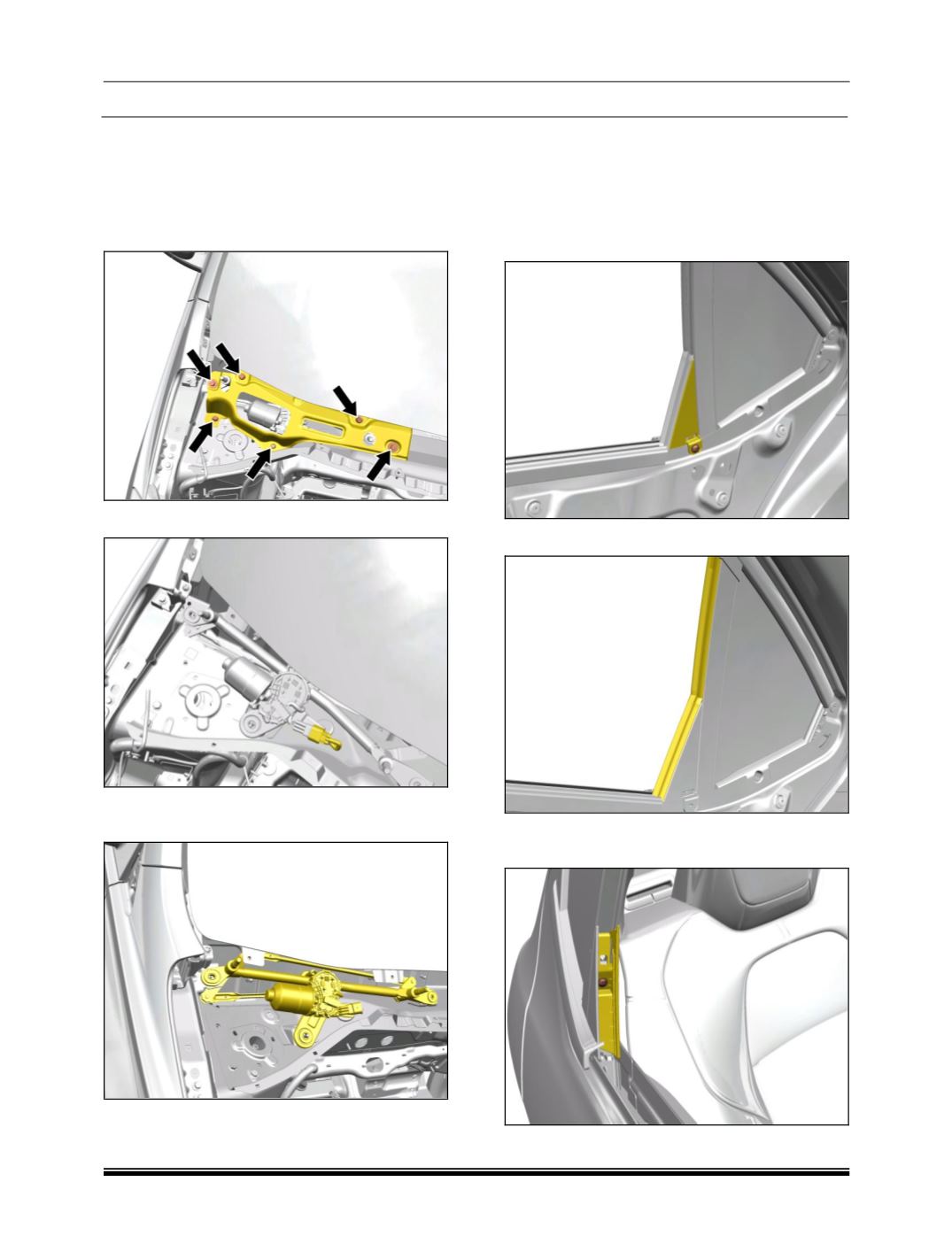

5. Remove Plenum Cover assembly.
(For
procedure refer Plenum Cover assembly
removal process).
6. Loosen and remove mounting bolts of Wiper
mounting bracket and remove the Wiper
mounting bracket.
7. Remove the wiper motor electrical connection.
8. Remove Wiper motor assembly complete with
linkages.
FITMENT
For fitment follow reverse procedure of removal.
9.2.45 REAR DOOR CHEATER COVER
1. Pull the window glass down and remove the
rear door trim.
(For removal refer rear door
removal process).
2. Remove inner rear door cheater mounting
screw on the door panel.
3. Remove the side glass run mould.
4. Remove inner rear door cheater side mounting
screw and take out the inner cheater.
