1.2L REVOTRON ENGINE
101

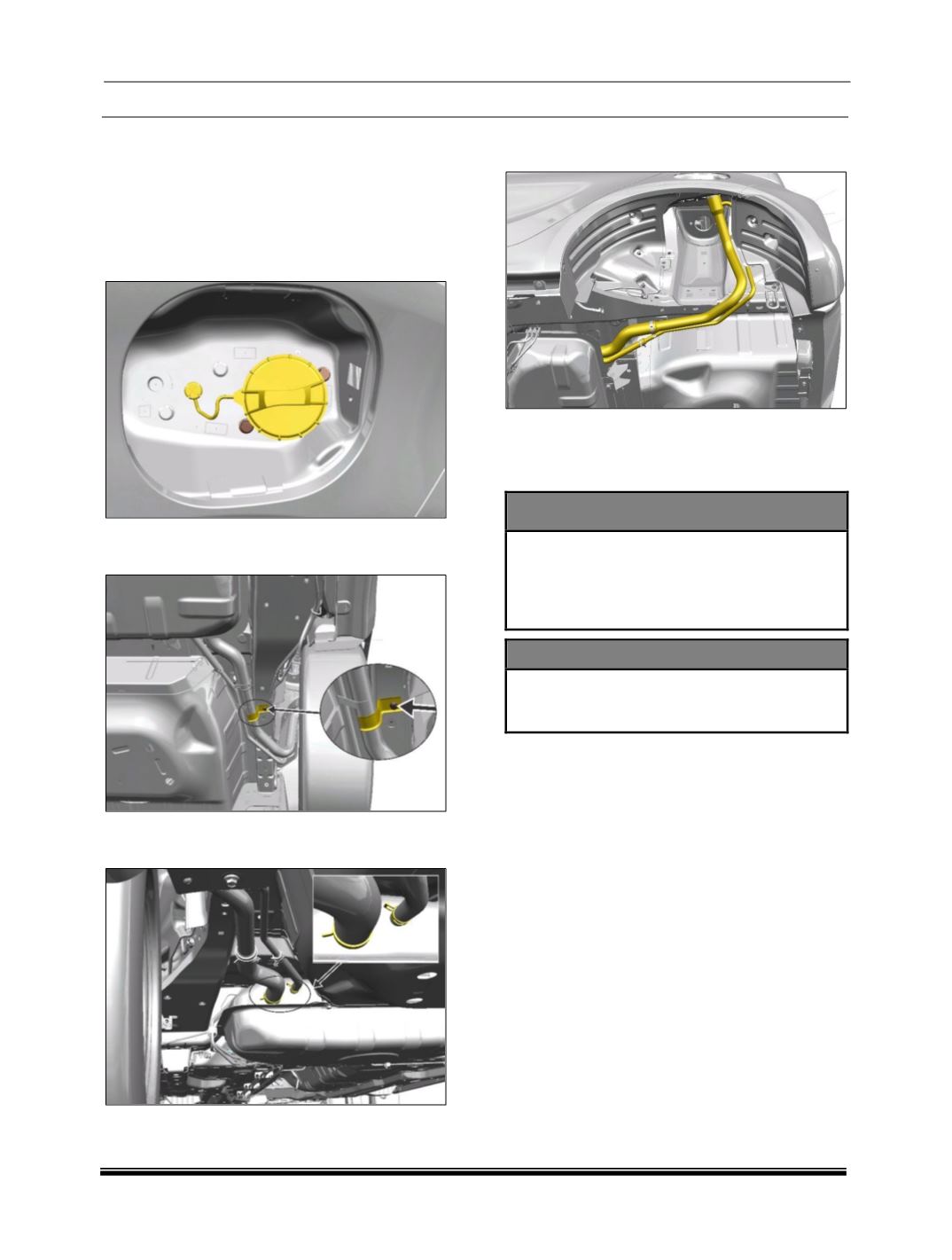

FUEL FILLER AND BREATHER HOSE
REMOVAL
1. Place the vehicle in a 2 poster lift.
2. Refer precautions and relive fuel pressure.
3. Remove fuel filler cap by removing fuel filler
mounting hex flange bolts.
4. Remove the hose holding bracket by
unscrewing the fastener.
5. Remove the fuel filler and breather hose
clamps from tank side.
6. Take out fuel filler assembly along with
breather from body shell.
INSPECTION
Check if dust has blocked the 2 way cap, change
cap if found defective.
WARNING
A small amount of fuel may be released
after fuel lines are disconnected. To avoid
the chance of injury, cover the pipe to be
disconnected with cotton cloth. Do not use
cotton waste..
CAUTION
To avoid damage to vapour hoses while
disconnecting, slide back the clamps then
twist the lines as you pull.
FITMENT
Follow the reverse order of removal for fitment.
