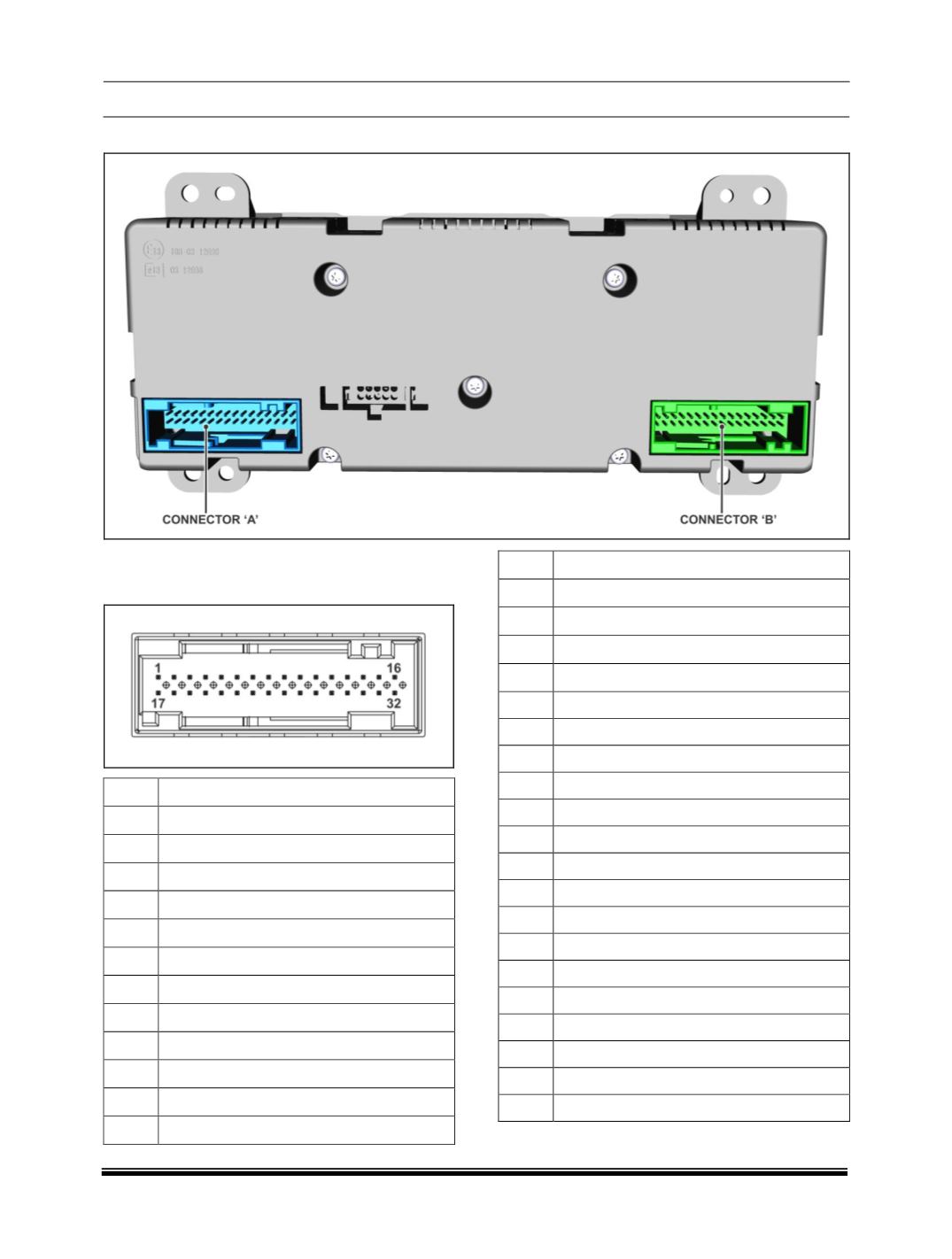

1.5. CONTROL PANEL CONNECTOR DETAILS
PINOUT DETAILS
CONNECTOR A
PIN DESCRIPTION
1
Air Inlet Motor Poti Supply
2
Air Temperature Poti Supply
3
Air Distribution Poti Supply
4
Air Temperature Poti Signal
5
Not Connected
6
Not Connected
7
Not Connected
8
Sensor Temperature Evaporator Signal
9
Air Distribution Poti Signal
10
Air Inlet Motor Poti Signal
11
Air Temperature Motor B
12
Air Inlet Motor A
PIN DESCRIPTION
13
Air Inlet Motor B
14
Air Distribution Motor A
15
Air Distribution Motor B
16
Air Temperature Motor A
17
Air Inlet Motor Poti GND
18
Air Temperature Poti GND
19
Air Distribution Poti GND
20
Sensor Temperature Evaporator GND
21
Sensor AQS GND
22
Engine Coolant Sensor GND
23
Not Connected
24
Face/Foot Outlet Temp Sensor GND
25
Not Connected
26
Interface BBM PWM
27
BBM Diagnostic Feedback
28
Not connected
29
Not connected
30
Not Connected
31
Not Connected
32
Not Connected
CONNECTOR B
