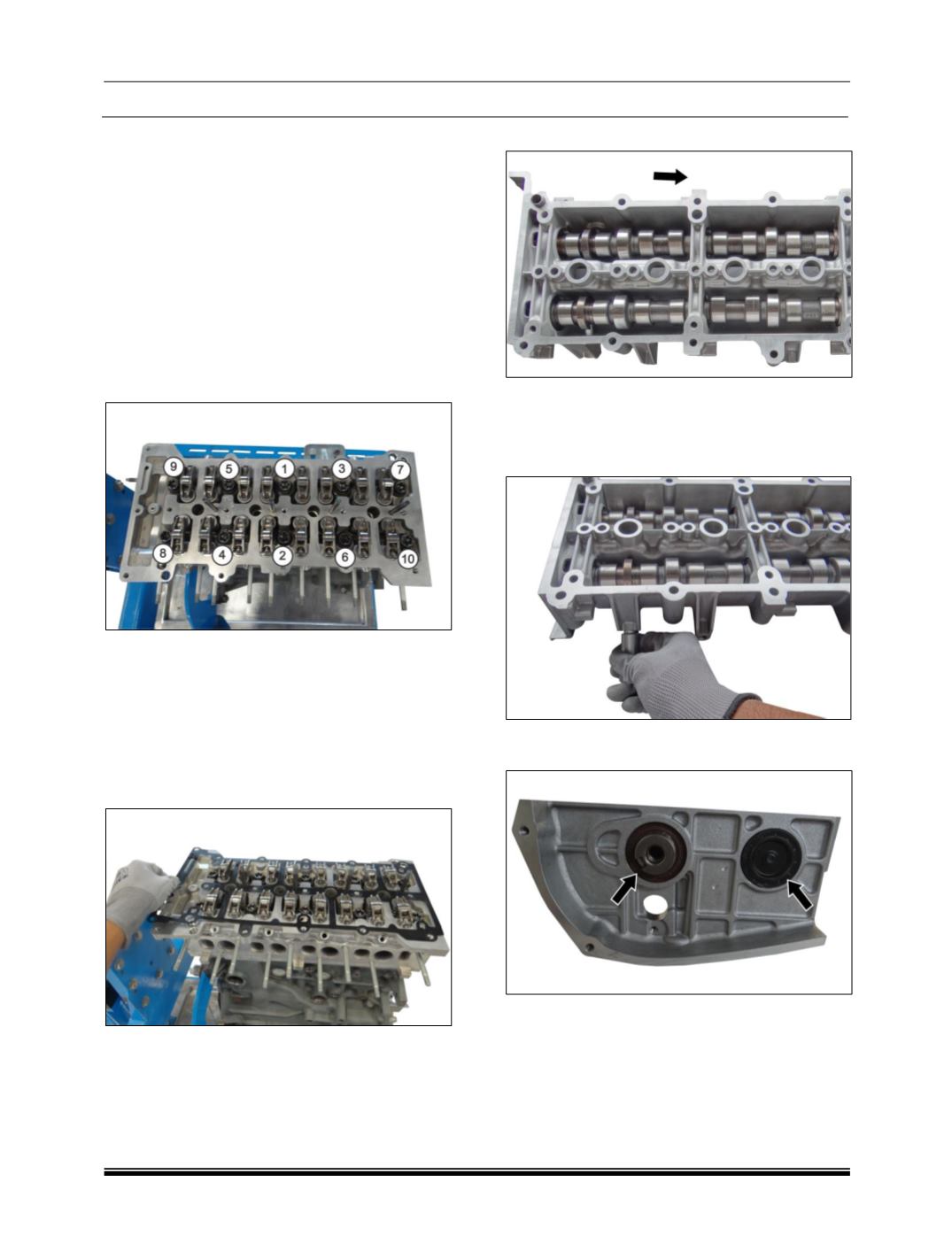

KRYOTEC ENGINE
109
2. Bring the first cylinder to TDC and further rotate
the crankshaft counterclockwise the equivalent
of two teeth on the crankshaft sprocket to lower
the piston thus avoiding any interference with
the valves during the installation of the cylinder
head.
NOTE
The engine block to cylinder head centering
bushings are shorter (12.5 mm) compared to the
cylinder head to cylinder head cover centering
bushings, so be careful not to reverse them as
engine damage may occur.
3. In the order shown, tighten the cylinder head
bolts to the proper (Torque Specifications).
NOTE
Do not to reverse them as it may impair the
efficiency of the engine.
Use new bolts while installing.
The value of 65 N·m (48 ft. lbs.) must be done with
a combination of 20 N·m (15 ft. lbs.) and
subsequently an increase of 45 N·m (33 ft. lbs.).
4. Place cylinder head cover gasket.
NOTE
Use new gasket while installing.
5. Install both camshaft in head cover.
NOTE
Camshaft are not interchangeable.
6. Align and lock the camshaft using cam shaft
locking pin.
7. Install exhaust camshaft oil seal and intake
camshaft end cover.
(Drift -: 2704 5890 3316).
NOTE
Use new seals while installing.
