SUSPENSION
28

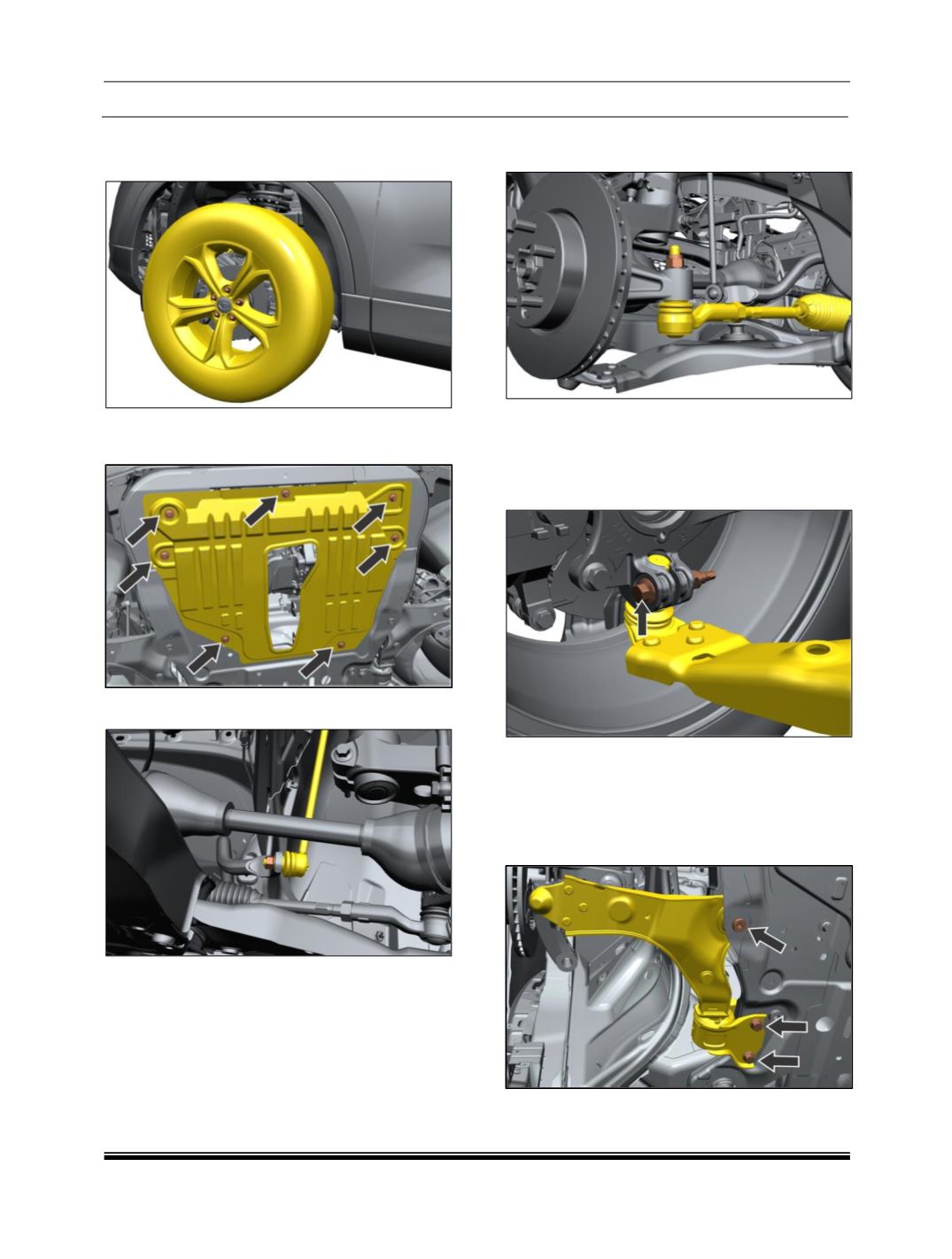

14. REMOVAL OF SUBFRAME ASSEMBLY
1. Remove the front wheel.
2. Remove the mounting bolts and take out the
engine guard underbody.
3. Disconnect the anti-roll bar joint from ARB link.
4. Disconnect the steering tie rod ball joint from
the knuckle.
CAUTION:
Avoid damage to the tie rod ball joint boot.
5. Remove Lower Link mounting on Knuckle on
both sides.
CAUTION:
Avoid damage to the ball joint boot.
6. Remove the sub frame assemble and Tie
mounting bolts and take out the sub frame
assembly.
