SUSPENSION

26

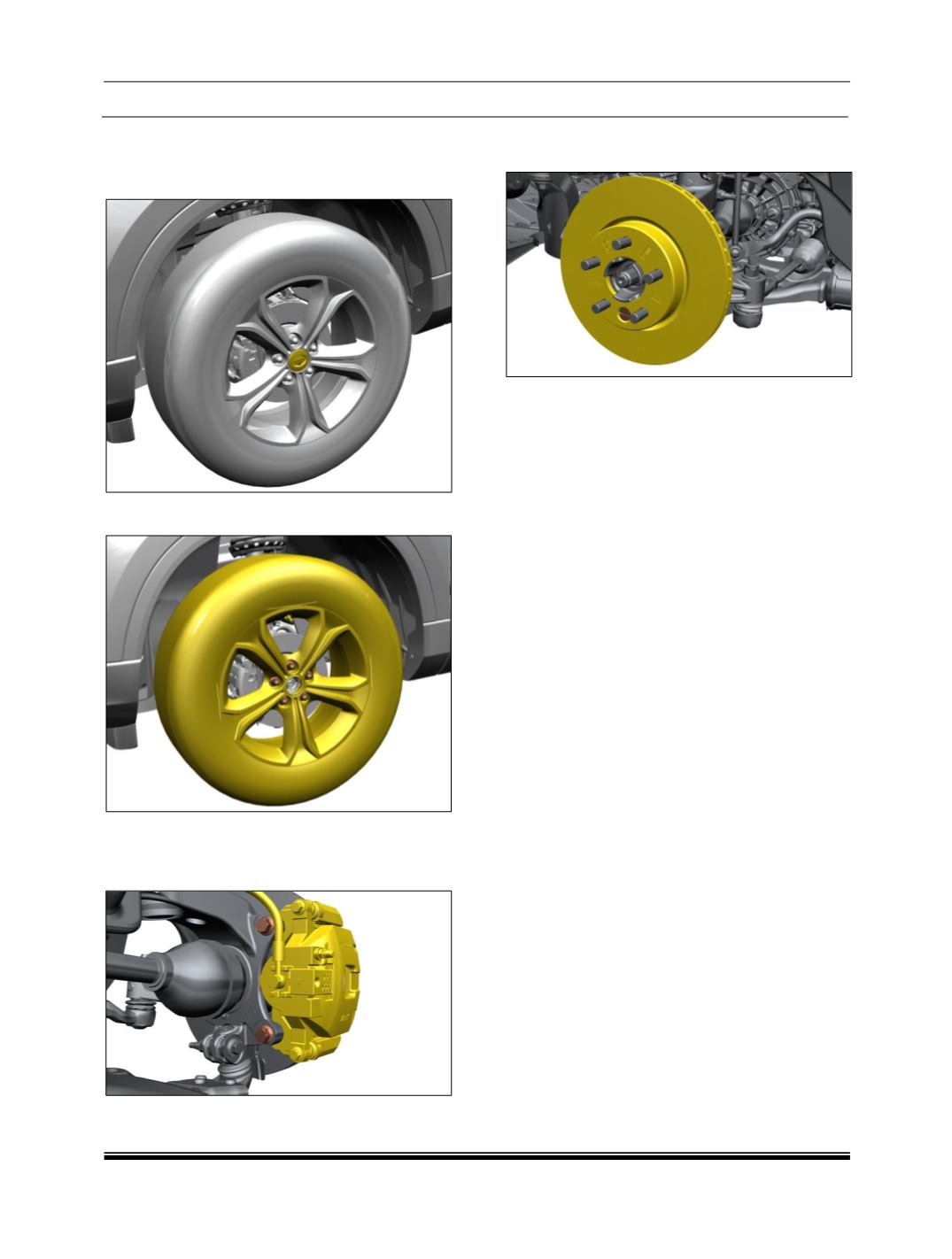

12. REMOVAL AND ASSEMBLY OF WHEEL

DISC

1. Remove wheel Cap.

2. Remove wheel nut & take out wheel.

3. Remove Hex flange screw mountings on

Brake caliper and separate brake caliper

along with brake pipe.

4. Hang Brake caliper assembly using S hook

5. Unscrew the disc holding screws and remove

the disc.

ASSEMBLY OF WHEEL DISC

Follow the reverse procedure.
