KRYOTEC ENGINE
94

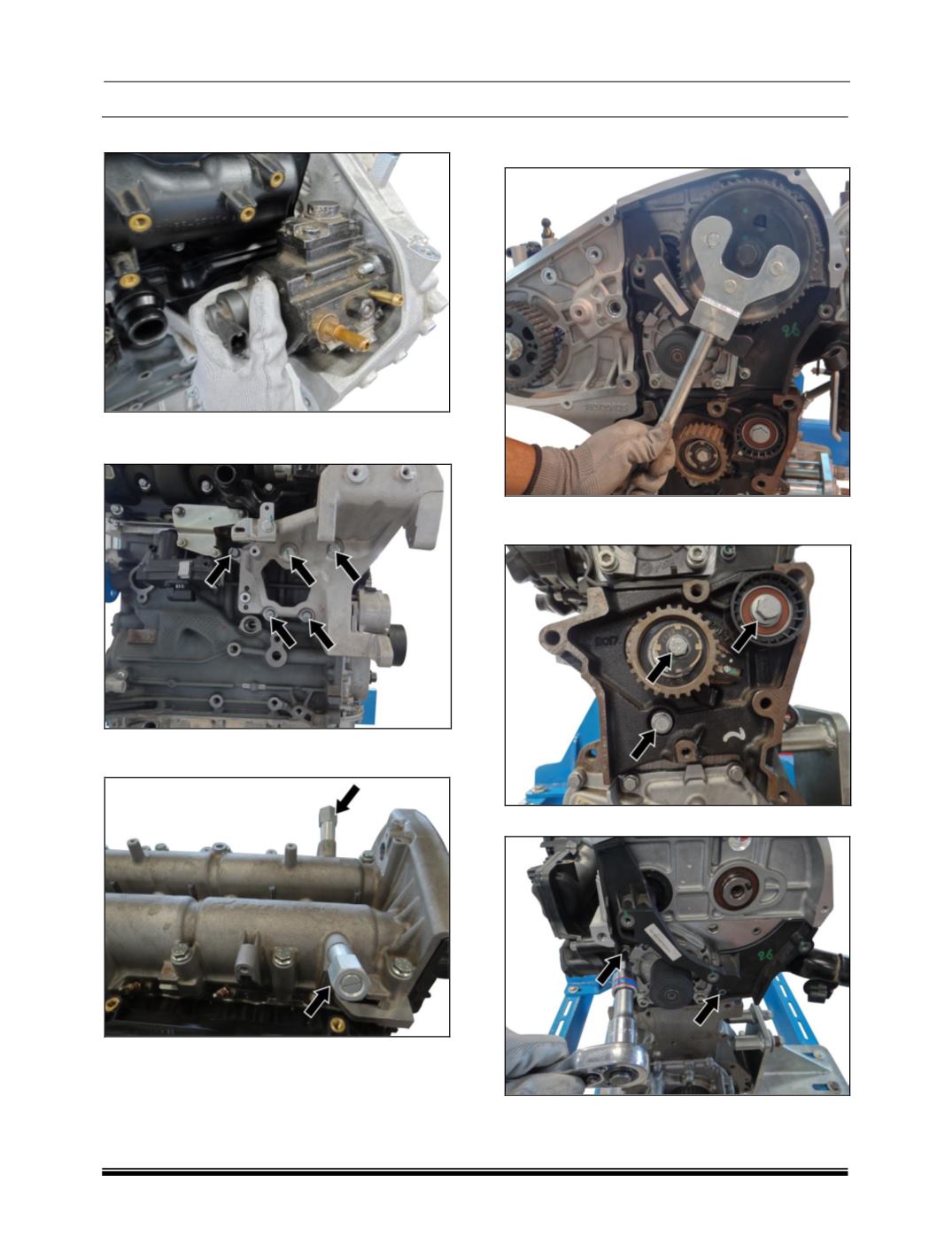

9. Remove the fuel pump and gear assembly.
10. Remove mounting bolts and take out fuel
pump bracket.
11. Lock both camshafts using locking special
tools.
NOTE
Check the correct insertion of the tool into its seat
by rotating the gear until the tools spring pin clicks
into the correct location on the camshaft.
12. Remove camshaft timing gear.
(Camshaft
locking tool -: 5412 5890 0604).
13. Remove mounting bolts and take out belt
tensioner and idler pulley bracket.
14. Remove the water pump cover.
