SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
21
CURTAIN AIRBAG
In the vehicle, folded curtain airbag is installed on
the cantrail behind roof headliner on side of the
vehicle. When collision occurs the curtain airbag
is deployed, pushes the headliner out of the way
and position itself between occupant and side
window of the vehicle to protect the occupant's
head from having hard contact with side structure
of vehicle or with the intruding external objects.
The curtain airbag also enhances protection for
the second row outboard occupant.
ON VEHICLE REPAIR
REMOVAL
NOTE
Disconnect the vehicle battery and wait for 10 min
before commencing work on side airbag.
1. Remove “A, B and C” pillar trims.
(For
procedure refer Cab section.)
2. Disconnect the electrical connections of roof
liner assembly from “A-Pillar” at both ends.
3. Disconnect the rear washer pipe joint from the
“A-pillar”.
4. Remove the sunvisor.
(For procedure refer
sunvisor removal in CAB section.)
5. Remove all the grab handles and goggle case
from driver side.
(For removal procedures refer
CAB section.)
6. Remove front, middle and rear roof consoles.
(For procedure refer removal in CAB section.)

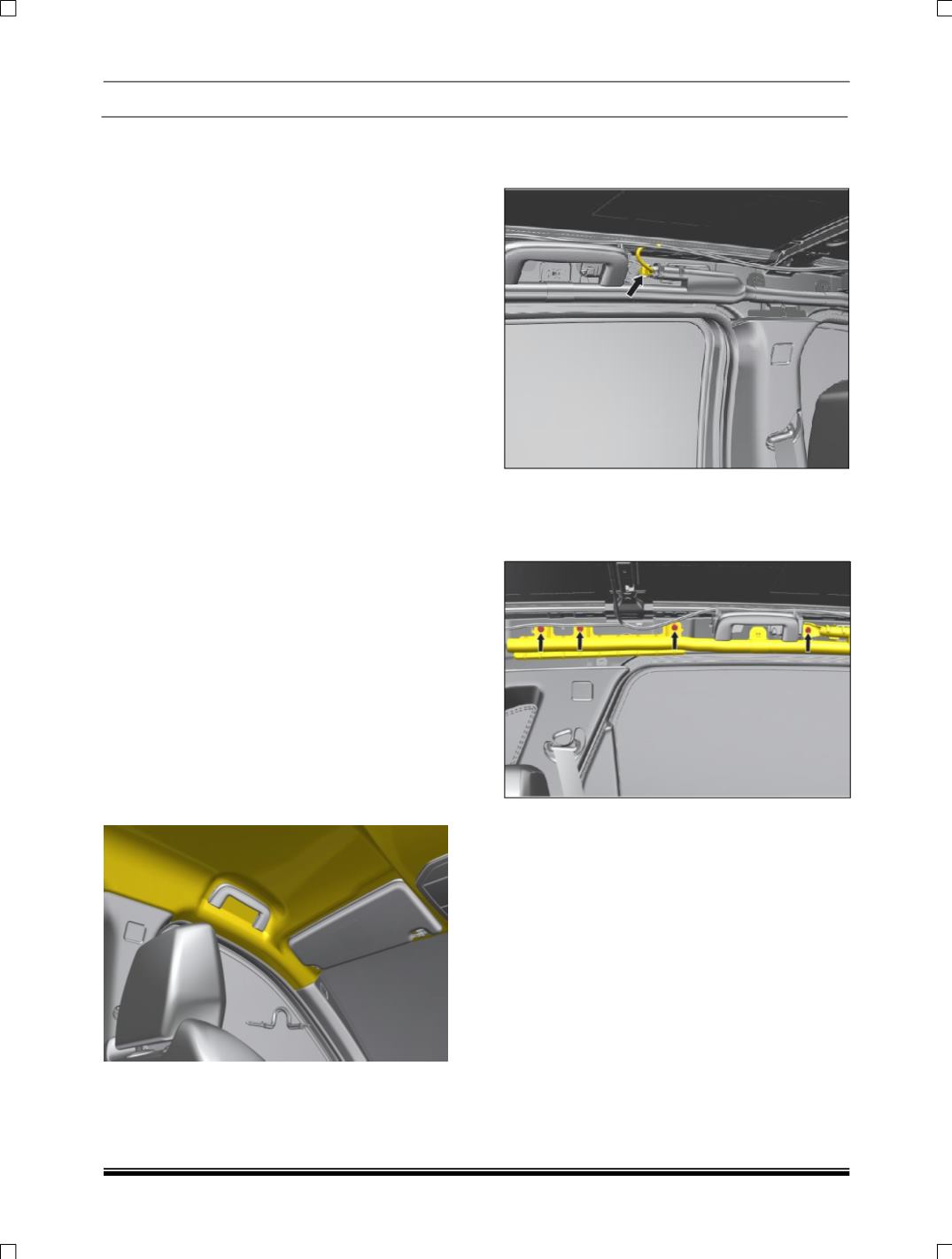

7. Loosen and remove the mounting screw which
is located below the rear roof console.
8. Remove the roof liner assembly.
9. Pull out the roof liner assembly and disconnect
the curtain air bag connection, which is near
“B- pillar”.
10.Loosen and remove five mounting bolts of
curtain air bag assembly and carefully remove
the air bag assembly lugs. Follow the same
procedure for other end also.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
After fitment connect the diagnostic tool and clear
all fault codes.
