SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
16

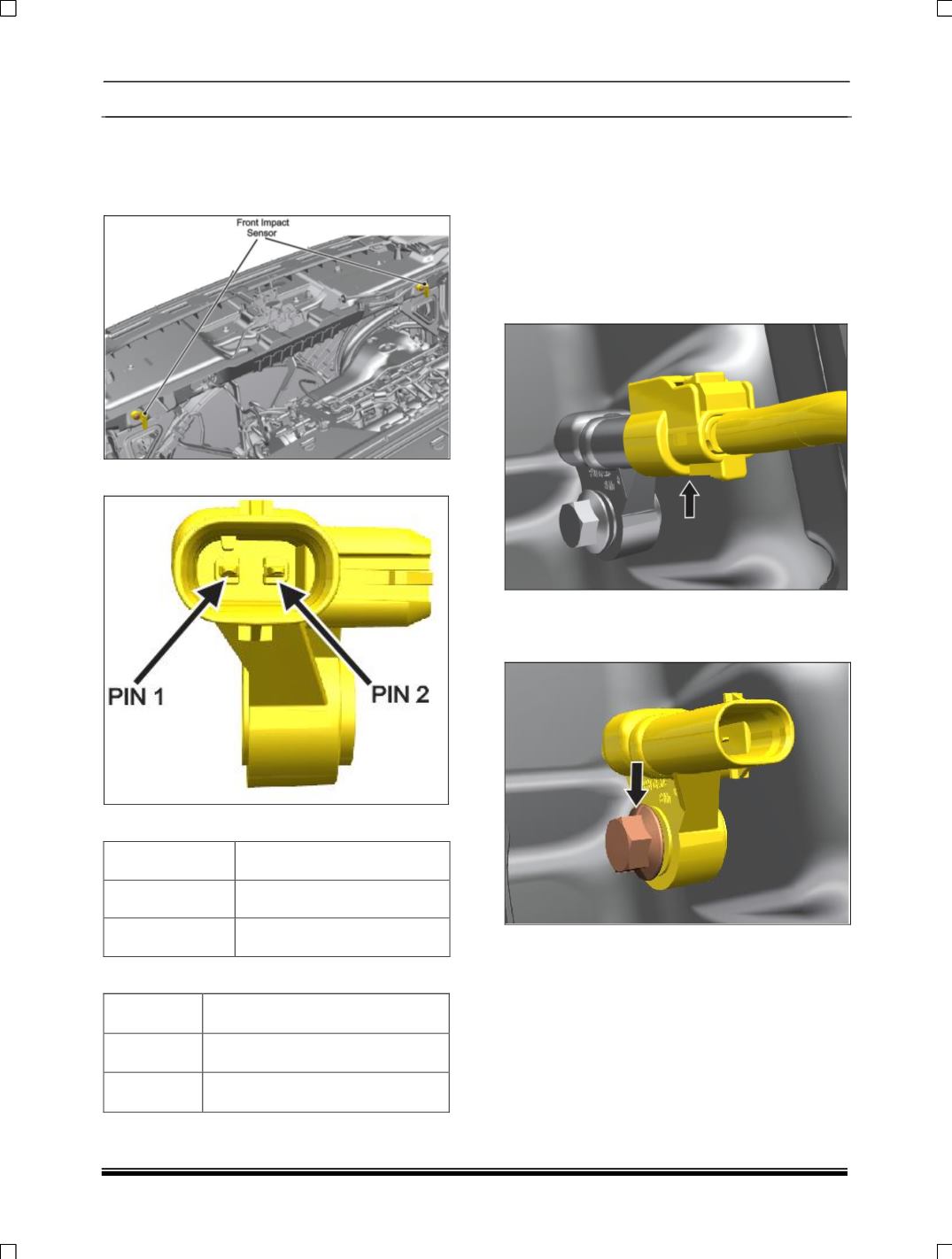

LOCATION
A)
Front Impact sensors are mounted on vertical
members of front end module on the both side
i.e. RH & LH.
CONNECTOR
PINOUTS
PIN NO.
PIN DESCRIPTION
1
SIGNAL
2
GROUND
SUPPLY VOLTAGE LEVEL
Minimum
5.25 V
Nominal
6.20 V
Maximum
16.5 V
ON VEHICLE SERVICE
REMOVAL
1. Open Bonnet.
2. Remove the battery connection.
3. Remove headlamp. (For removal refer
Electrical section)
4. Disconnect the electrical connection from the
front impact sensor.
5. Loosen and remove the mounting flange bolt
and take out the front impact sensor from the
vehicle.
