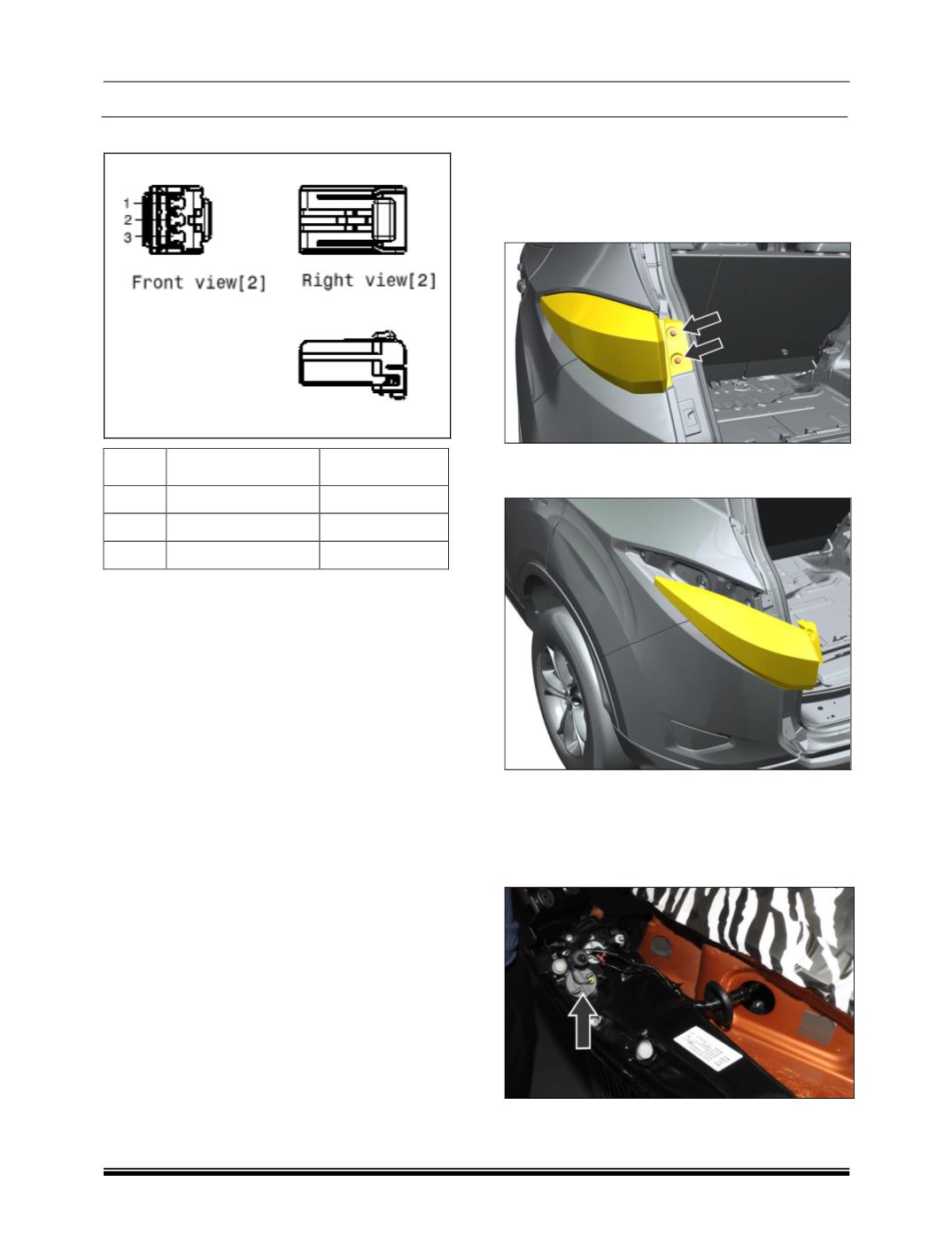

TRUNK TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Tail/Position
Green
2
Reverse
Yellow
3
Ground
Grey
REMOVAL
1. Open Tailgate & ensure all lamps in OFF
condition.
2. Loosen and remove the mounting bolt of tail
lamp.
3. Pull the Lamp Outside (-X Axis) Disengaging
From Catcher.
4. Pull the lamp at catcher points to release from
BIW & take lamp out from vehicle.
5. Rotate the turn signal bulb holder in anti-clock
wise direction to unlock the bulb holder from
lamp.
