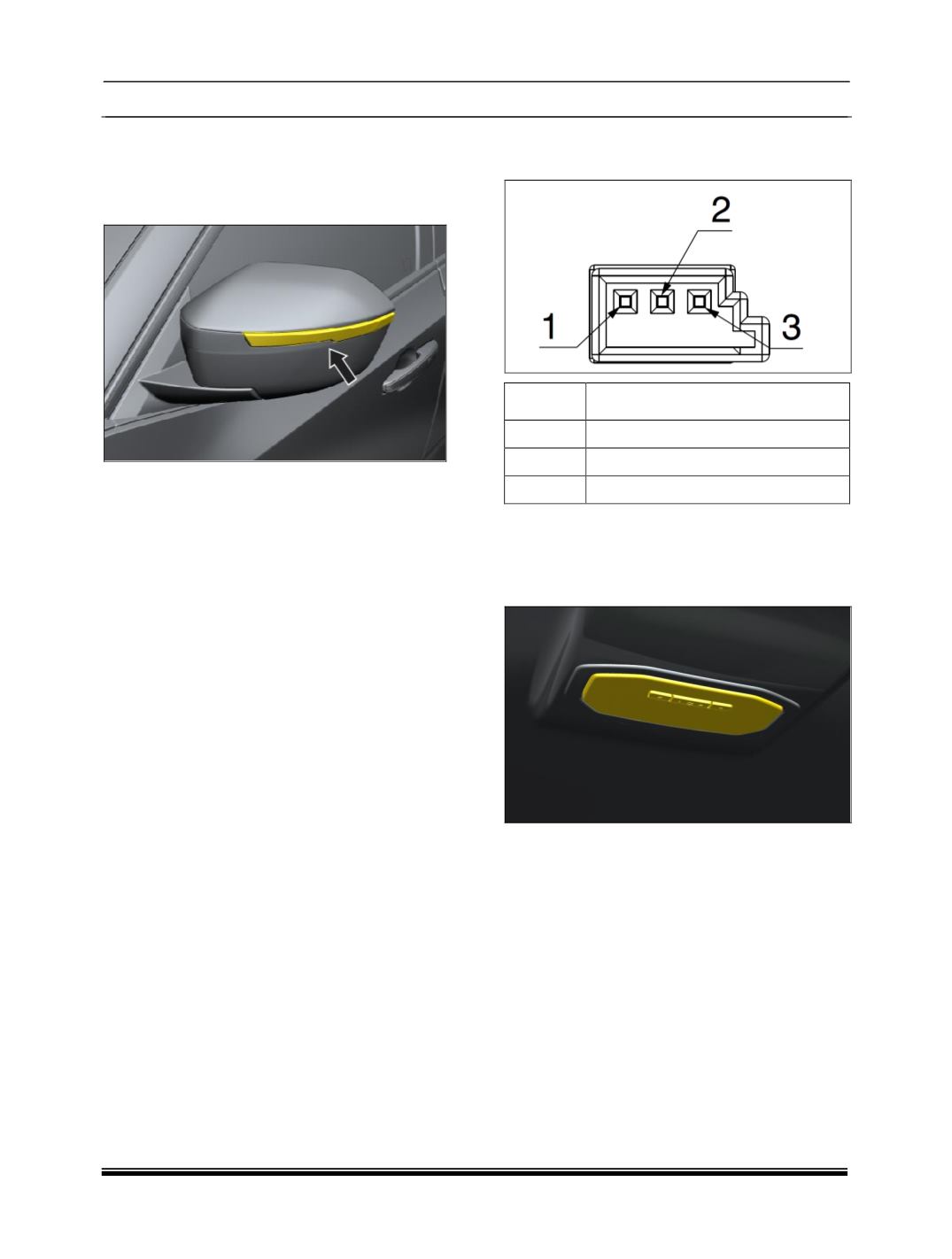

7.6 SIDE REPEATER LAMP (LH/RH)
There are two different types of side repeater
lamp fitting on the vehicle.
A. Side Repeater Lamp on ORVM
REMOVAL AND REFITMENT OF SIDE
REPEATER LAMP
REMOVAL
A. Side Repeater on Fender (if applicable)
1. Gently pry open the lamp by pressing the snap
lock and pull out the lamp from panel.
2. Remove the connection and secure wiring
harness on fender. Wiring harness should not
go inside.
REFITMENT
A. Side Repeater on ORVM
Please refer Body Section for removal and
refitment of side repeater lamp on ORVM.
7.7 ROOF LAMP
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
Door
3
+ve
REMOVAL AND REFITMENT OF ROOF LAMP
REMOVAL
1. Gently pry out the middle roof lamp assembly
from the bezel roof lamp by inserting wedge.
