BODY
11

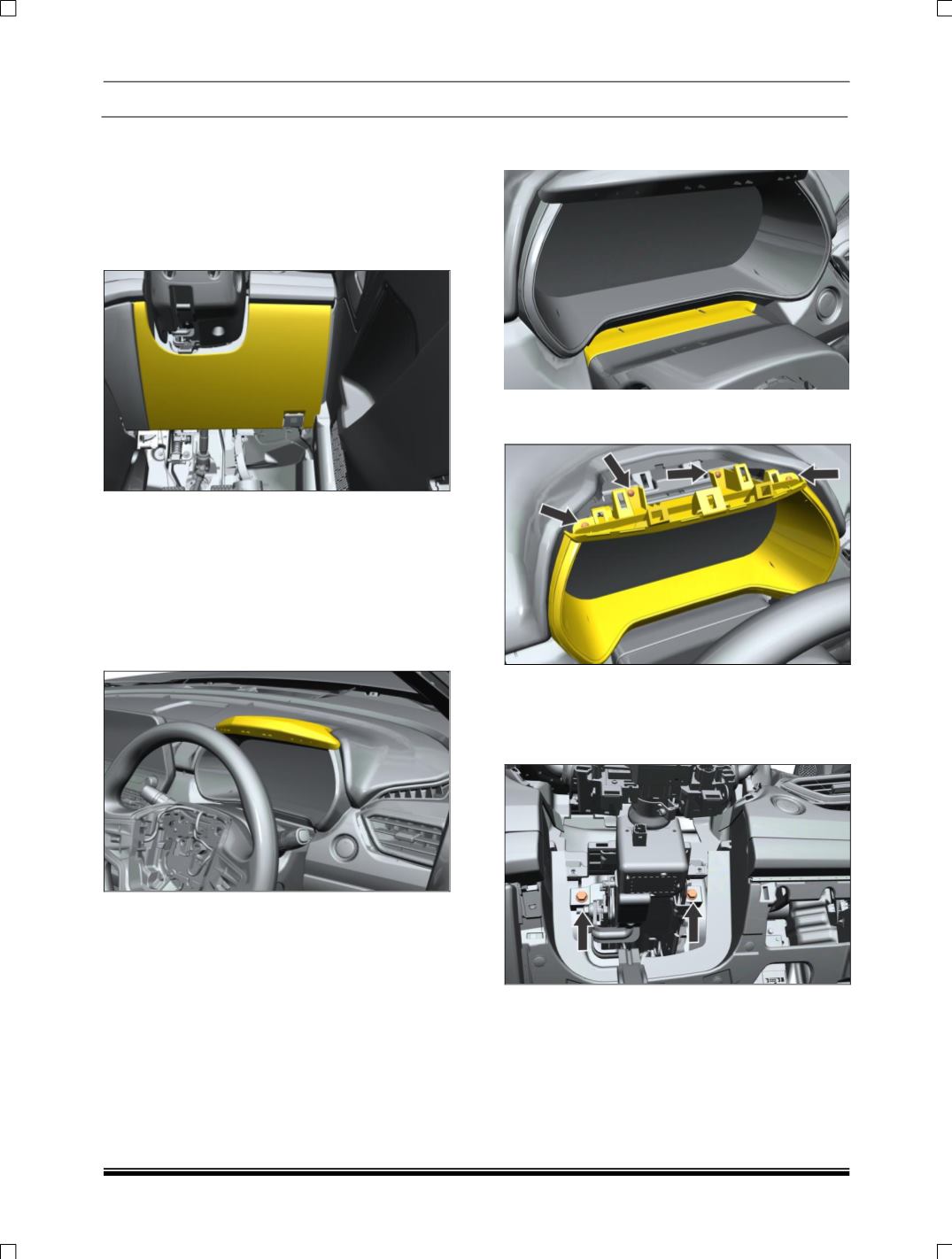

2.4 DASHBOARD SKIN
REMOVAL
1. Remove steering wheel with Driver air bag (if
applicable) (For procedure refer steering wheel
removal process in steering section.)
2. Pull out Driver lower panel.
3. Remove nacelle Assembly. (For removal refer
steering column removal process in steering
section.)
4. Remove combination switch assembly and
ignition switch assembly (For procedure refers
combination switch and ignition switch removal
process in Electrical section.)
5. Pull out instrument cluster hood.
6. Pull out gap hider fitted on the dashboard sub
assembly.
7. Loosen and remove the mounting screw and
take out cluster bezel
8. Remove instrument cluster. (For procedure
refer instrument cluster removal process in
Electrical section.)
9. Remove two steering column mounting nuts.
