HARRIER BOOK 1

BODY

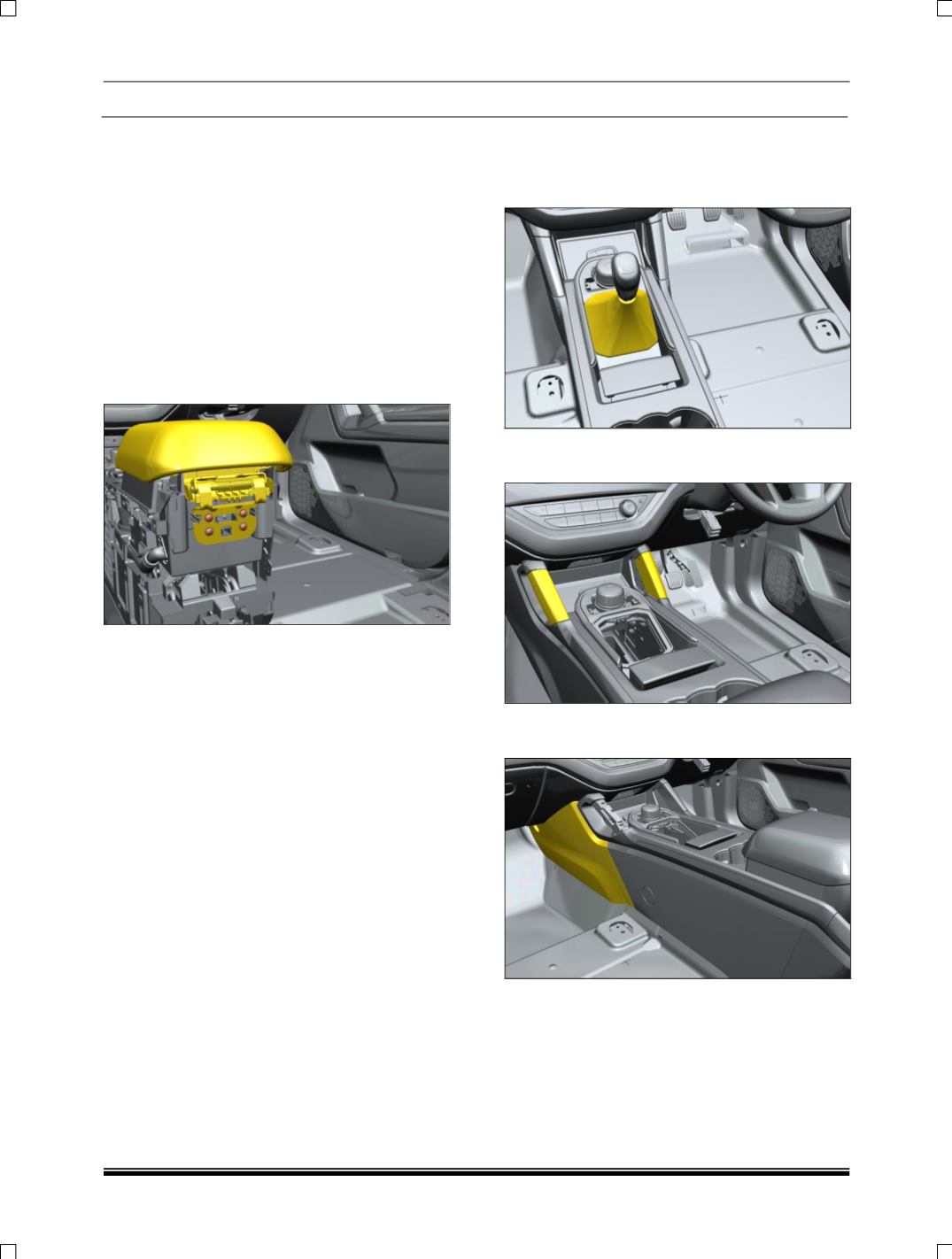

2.2 ARM REST

REMOVAL

NOTE

For ease of removal and fitment the hand brake

cable can be loosened from the rear end. (For the

hand brake adjustment, refer brake section.)

1. Remove the gear lever boot.

(For procedure

refer the gear lever boot removal process.)

2. Remove rear console

(For procedure refer the

console removal process.)

3. Remove the four mounting screw and take out

the rest arm

2.3

FLOOR CONSOLE

REMOVAL

1. Pull out gear shifter bezel.

2. Pull out the console handle with leather LH

and RH sub assy

3. Pull out the floor console side panel LH and

RH side
