BRAKES
45

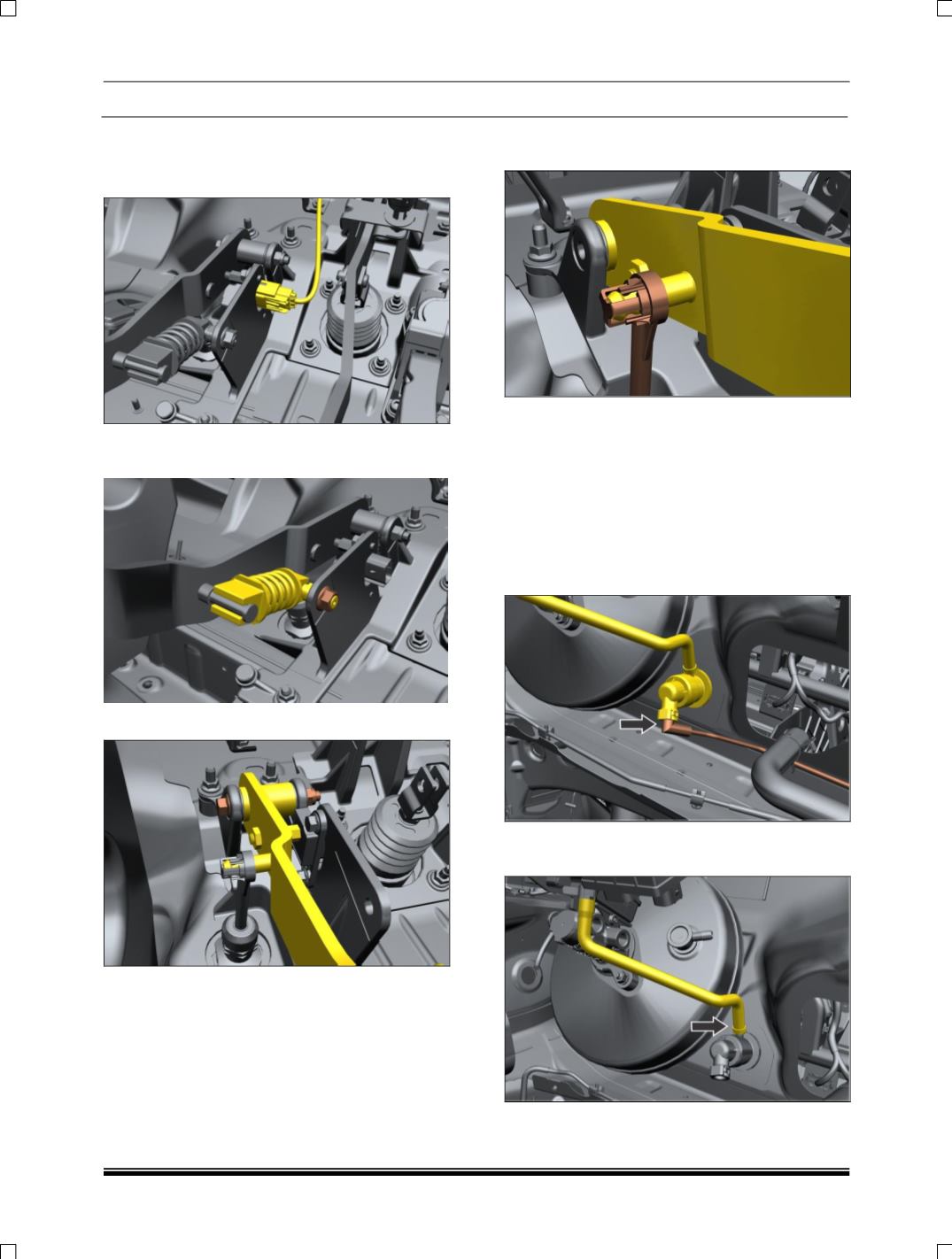

REMOVAL OF CLUTCH PEDAL
1. Remove
Electrical
connection
from
contactless clutch sensor.
2. Remove Hex FL nut M10 & take out spring
seat assembly.
3. Remove Nyloc Nut M8 on clutch pedal.
4. Release clutch pedal by Pulling out snap of
clutch master cylinder on clutch pedal.
5. Lastly take out clutch pedal.
FITMENT OF CLUTCH PEDAL
For fitment follow the reverse procedure of clutch
pedal removal.
REMOVAL OF CLUTCH MASTER CYLINDER
ASSEMBLY
1. Remove CMC connector connection to clutch
master cylinder.
2. Remove connection to TMC (Tandem master
Cylinder) from CMC.
