292 / 948
SUSPENSION
25

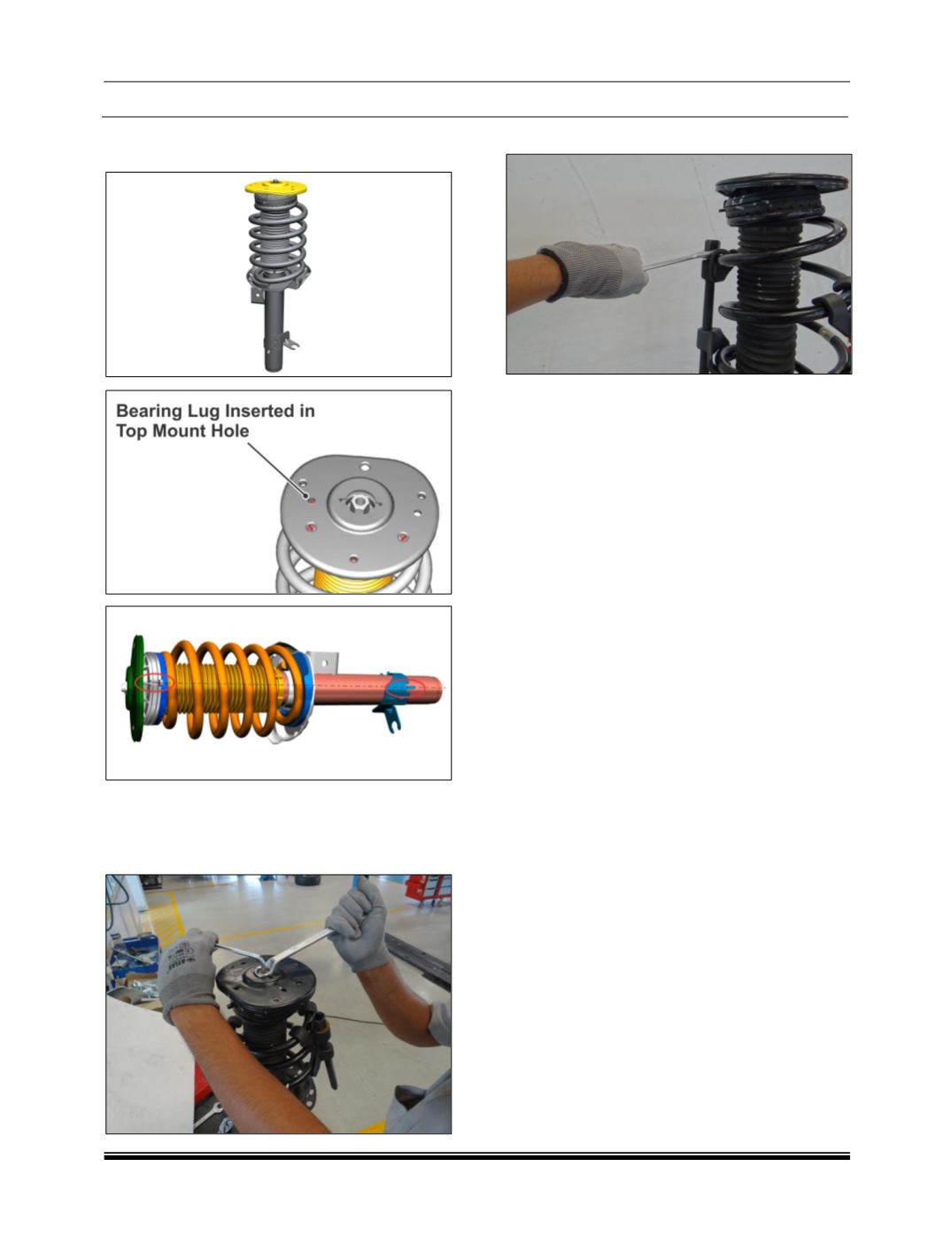

mount locating hole and also aligned top
mount with brake hose bracket lug).
11. Fit Hex nut (1 in fig) and tighten to 67-74 Nm
torque. Hold the piston rod by Allen key (A/F:
6 mm) to stop piston rod rotation during
tightening of nut.
12. Remove spring compression tool carefully.
13. Lock the dust cover with striker cap on bottom
and with the bearing on top.
