SUSPENSION
21

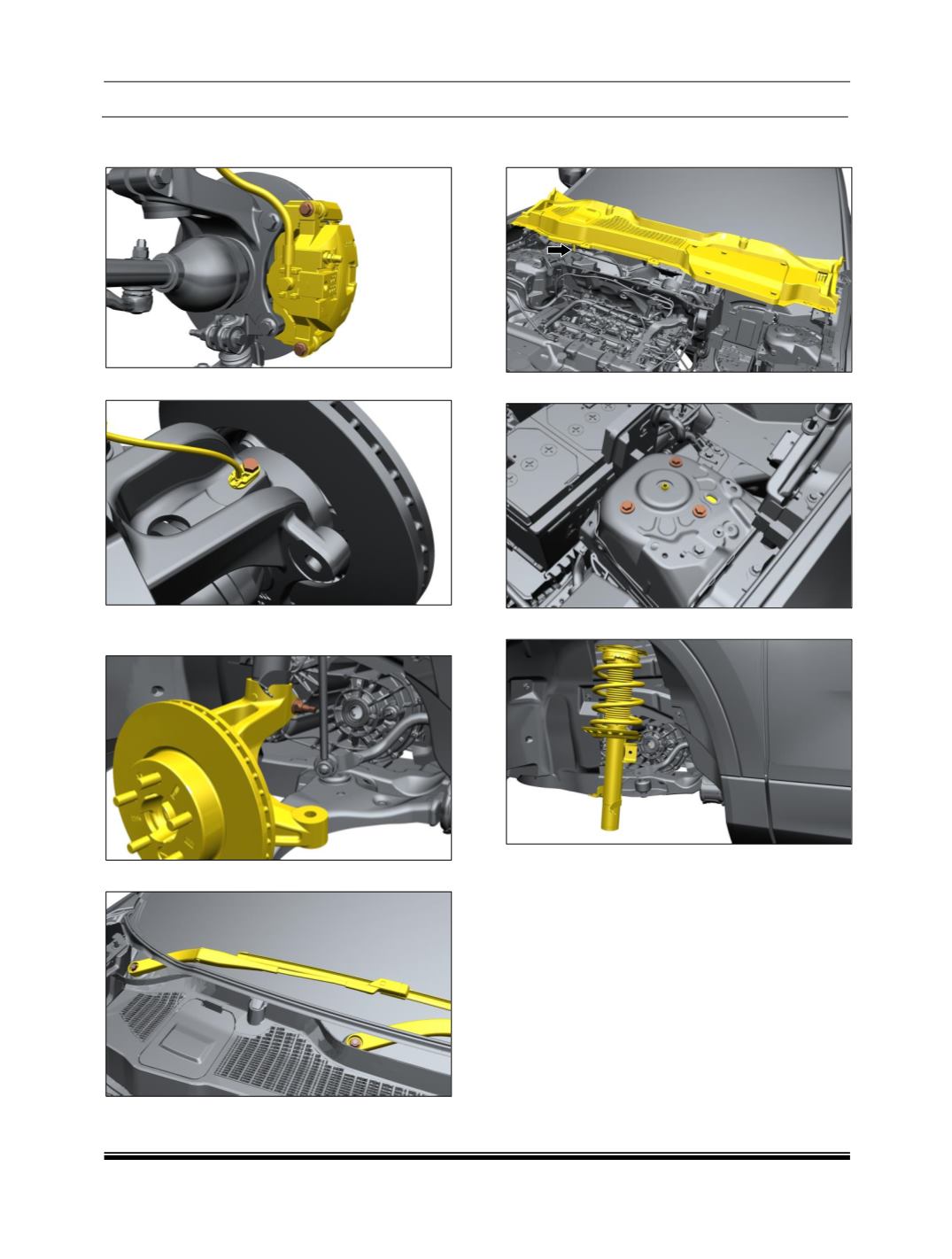

13. Remove Hex flange screw mountings on
Brake caliper.
14. Remove wheel speed sensor.
15. Remove front strut holding Nyloc nut
mounting on knuckle.
16. Remove Wiper blades.
17. Remove Leaf screen Assembly by
disconnecting washer pipe connection.
18. Remove three mountings on Front strut.
19. Separate the Front strut from vehicle.
FITMENT:
Follow the reverse procedure.
NOTE:
1. Tighten all bolts and nuts to specified torque
mention in Torque table.
2. Do not reuse the fastener of lower arm to
knuckle assembly.
3. Apply ADH thread locker wicking grade
ANABOND 124 at nut end and bolt thread.
Ensure that the threads are free from
oil/grease.
CAUTION:
1. Ensure that brake hose does not damage
