168 / 948
C635 TRANSAXLE
31

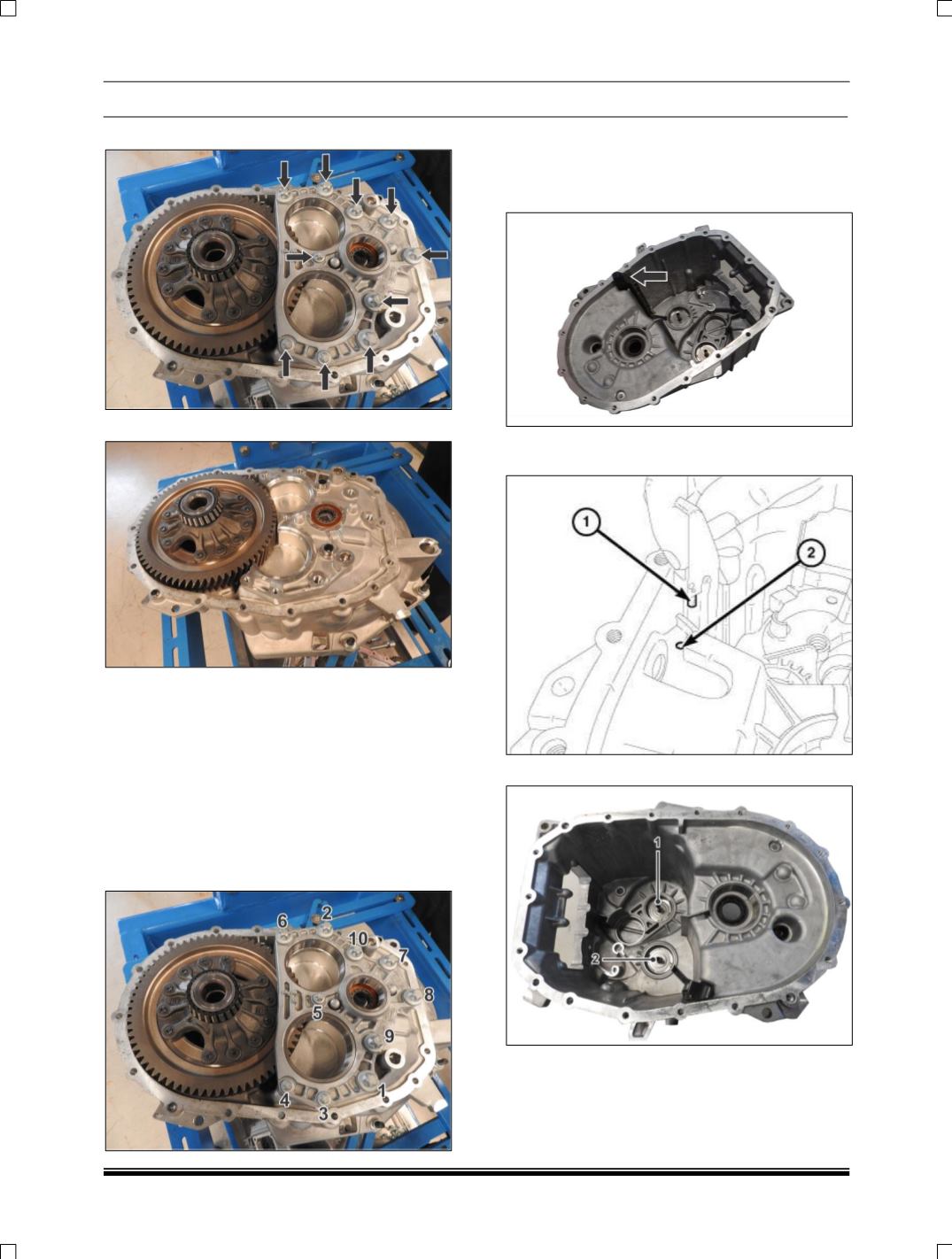

5. Remove Bearing Race Plate.
6. Install the differential.
7. Install the bearing race plate and tighten the
bolts in four steps using the sequence shown:
Step 1 - Tighten bolts 9-10-6-8-1 to 20 N·m
(15 ft. lbs.) in order.
Step 2 - Tighten bolts 3-5-4 to 25 N·m
(18 ft. lbs.) in order.
Step 3 - Tighten bolts 2-7 to 80 N·m
(59 ft. lbs.) in order.
Step 4 - Tighten bolts 9-10-6-8-1 to 80 N·m (59 ft.
lbs.) in order.
NOTE:
The following tools are to be used in conjunction
with
8. Install the lubricating duct.
9. Ensure that the oil duct locating pin is in the
locating hole.
10.Install the correct shim to the case.
