KRYOTEC ENGINE
106
8.

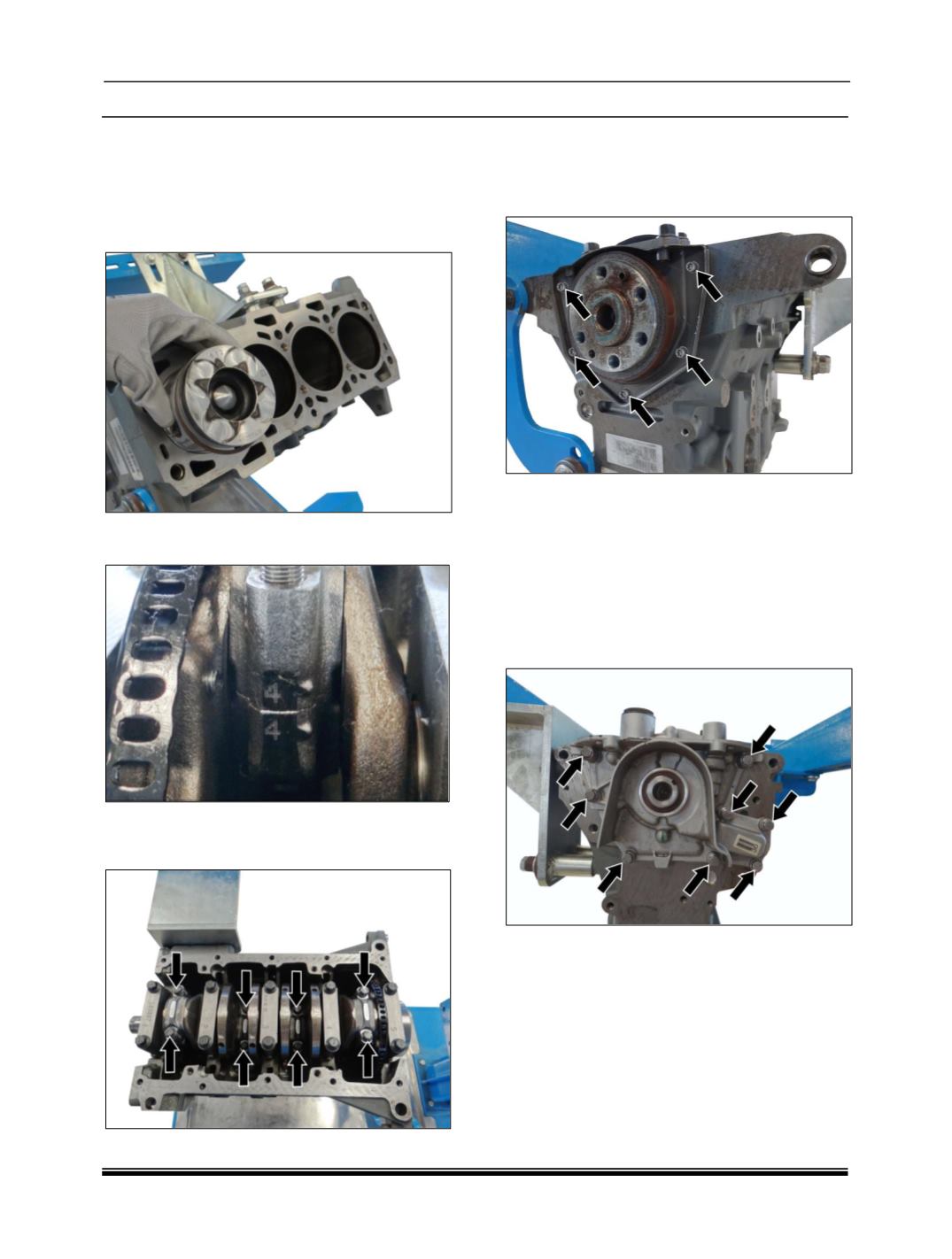

Push the piston assemblies into the cylinders
using mallet.
NOTE
Ensure that the arrow mark on the piston crown is
towards the exhaust manifold side and facing at
Engine Front of the block.
9.
Verify serial numbers on connecting rod
bearing caps and connecting rods.
10.
Turn
the Crankshaft to adjust the position of
the pistons and install the connecting rod
bearing cap mounting bolts.
NOTE
Use new bolts while installing.
11. Apply sealant to the cover. Install the
crankshaft oil seal cover.
NOTE
Clean the excess sealant from the mating surface
of the oil seal retainer.
Use new bolt while installing.
12. Fit the crankshaft oil seal.
NOTE
Use new seal while installing.
13. Install oil pump.
NOTE
Use new bolts and gasket while installing.
14. Install oil pump oil seal. (
Drift -: 5412 5890
0616)
.
NOTE
Use new seal while installing.
