ELECTRICAL
29

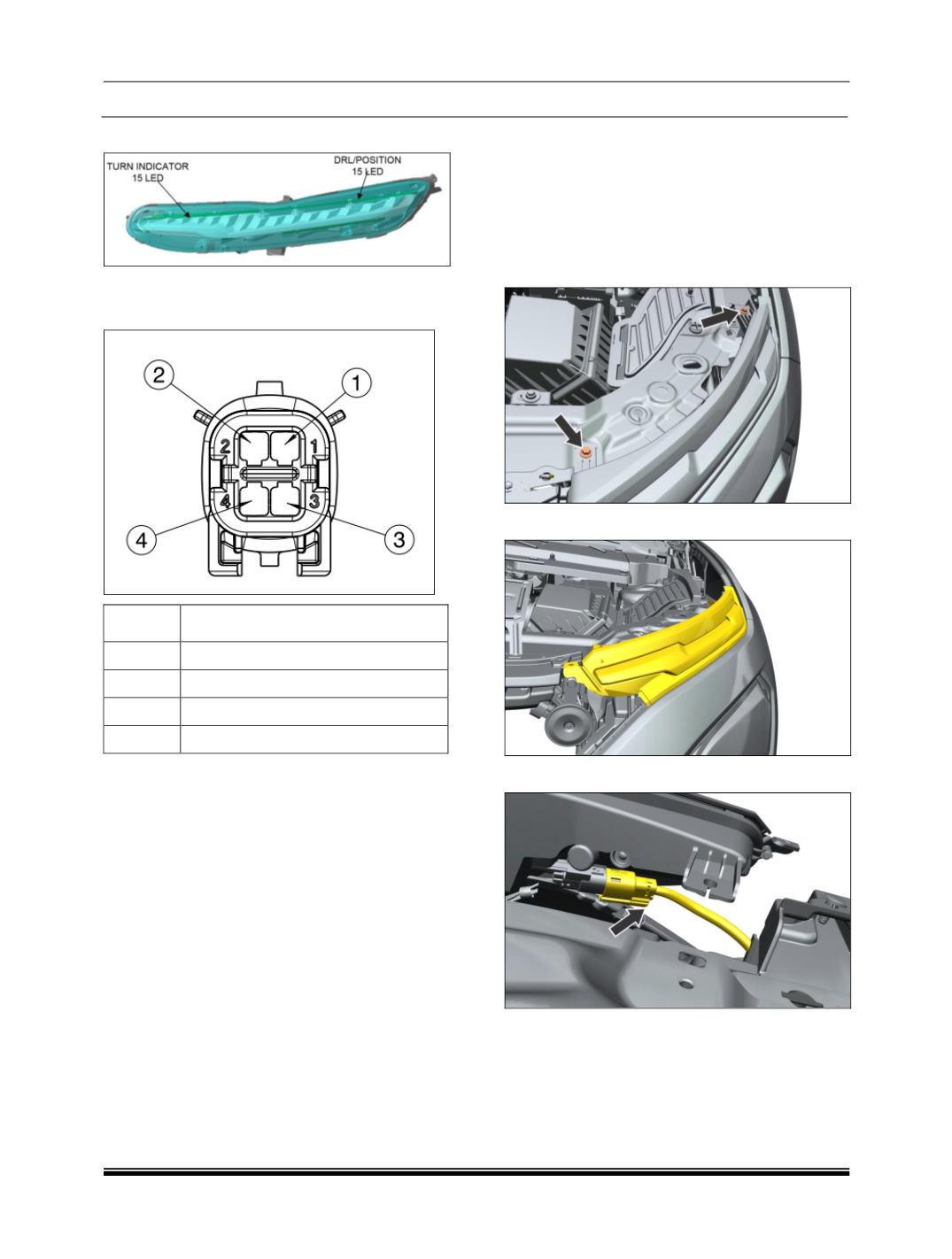

7.5 DRL Assembly
PINOUT DETAILS
DLR connector
PIN
DESCRIPTION
1
DRL
2
POSITION
3
TURN
4
GROUND
REMOVAL OF DRL
REMOVAL
1. Remove the front Grill (For procedure refer
Front bumper removal process in Body
section.)
2. Loosen and remove the DRL lamp two top
mounting fasteners.
3. Pull outside the DRL assay.
4. Disconnect DRL connectors.
FITMENT
For fitment follow the reverse procedure of
removal.
