KRYOTEC ENGINE
37

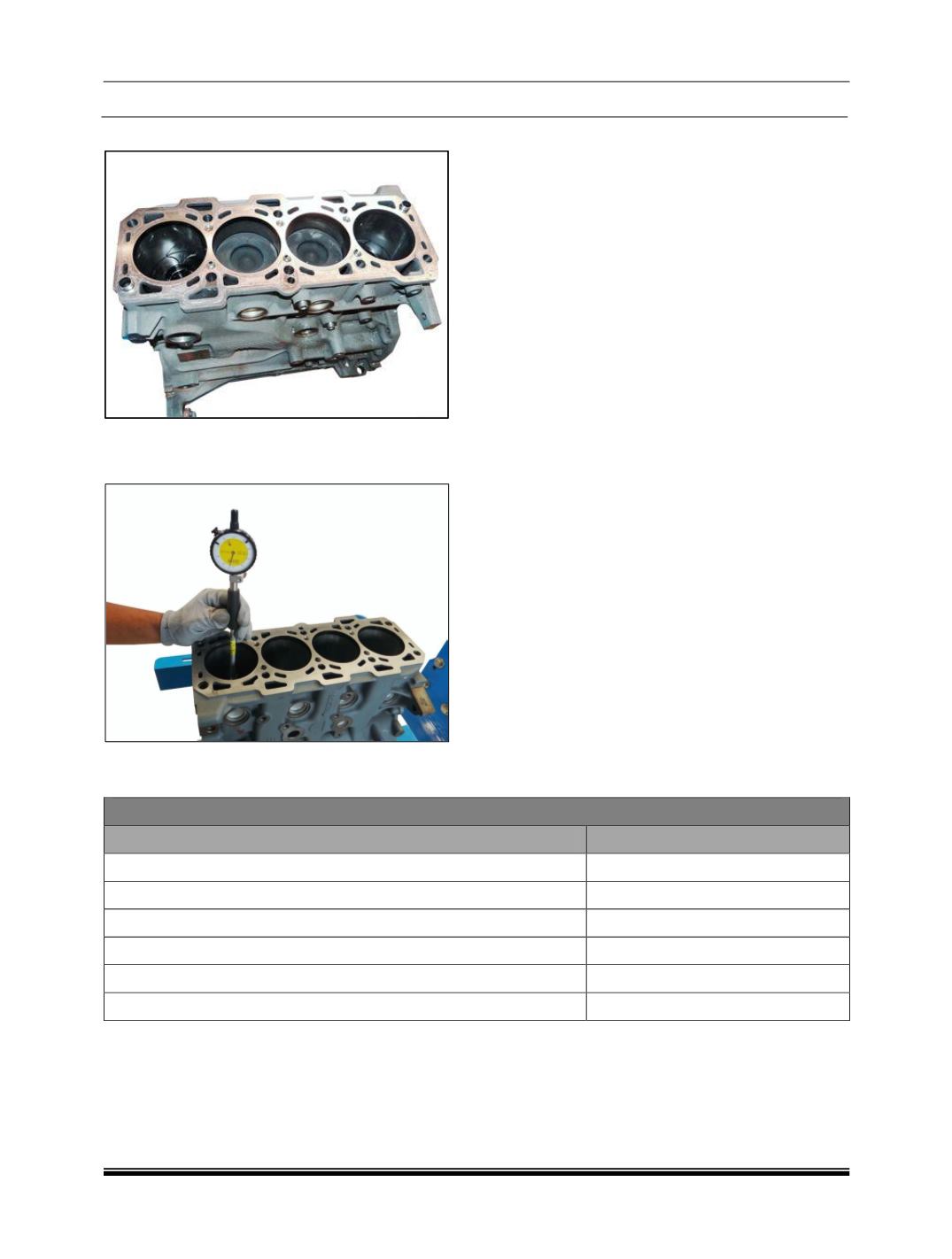

E. CRANKCASE
1. Inspect visually for crack or leakage in seals
2. Check cylinder bore for run outs.
3. Check cylinder bore for taper.
4. Check for scratch marks inside cylinder bore.
NOTE
In the case of refinishing, all cylinders bores must undergo the same increase.
CYLINDER BORE
Measure
Value
Internal diameter cylinder Bore - Class A (mm)
83.000 - 83.010
Internal diameter cylinder Bore - Class B (mm)
83.010 - 83.020
Internal diameter cylinder Bore - Class C (mm)
83.020 - 83.030
Cylinder Bore Out of Round (mm)
< 0.05
Cylinder Bore Taper
< 0.005
Oversize inner diameter cylinder bore (mm)
0.1
