BRAKES
56

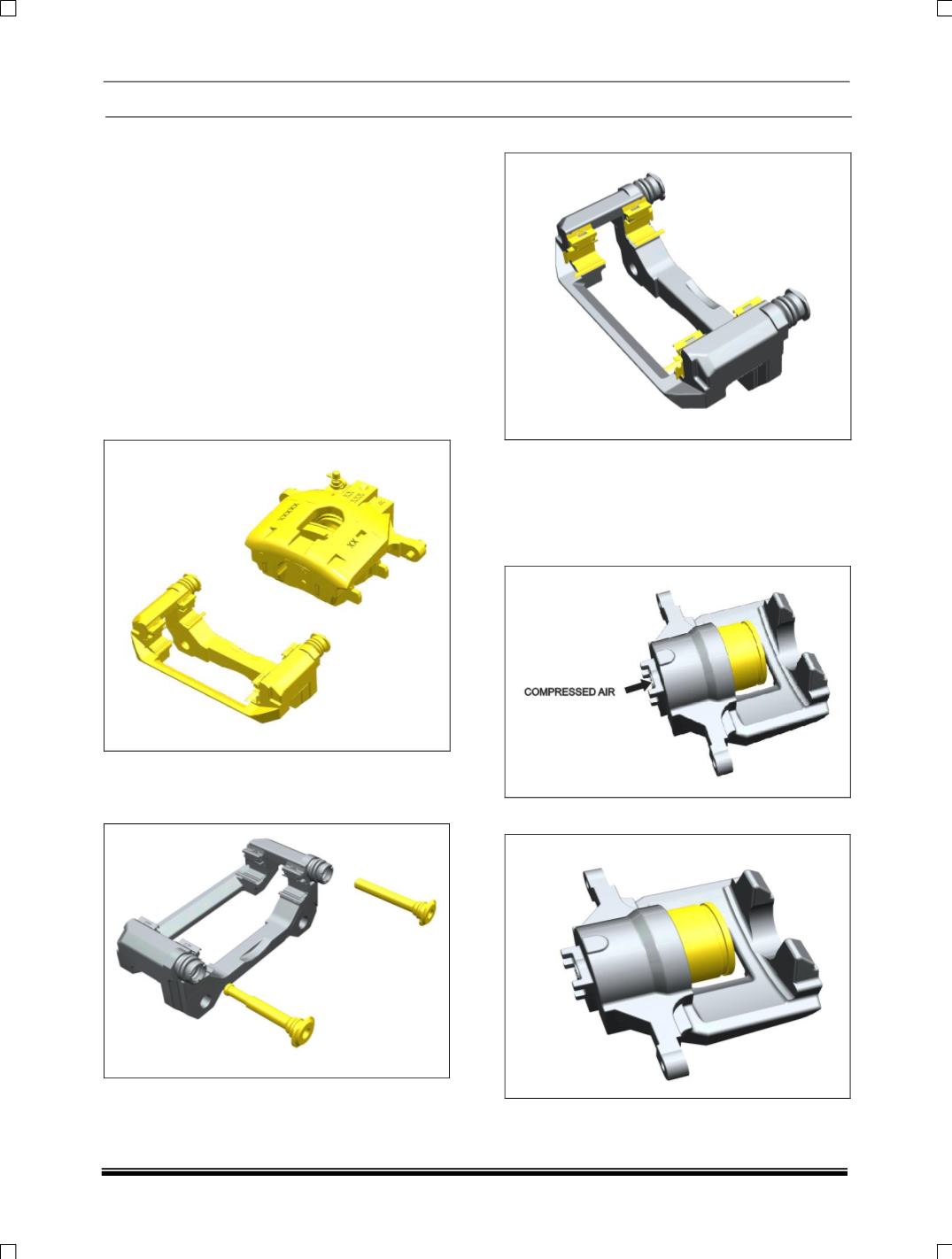

DISMANTLING
NOTE
To overhaul caliper assembly, the carrier
assembly need not be removed from the vehicle.
(Refer the note at the end of caliper assembly with
carrier removal in this section.)
1. Remove the caliper pads.
(For procedure
refer caliper pad replacement process in this
section.)
2. Remove the front Caliper assembly from the
vehicle.
(For procedure refer caliper assembly
removal process in this section.)
3. Loosen and remove the pin bolts.
4. Separate the caliper housing from the carrier.
5. Remove the sliding pin boot along with the
sliding pin from the carrier and separate the
sliding pin boot and the sliding pin.
6. Pull out the anti rattle clip from the carrier.
7. Keep the wooden piece in between the
plunger and the caliper housing and blow dry
compressed air into the caliper gradually
through the inlet port
(Where banjo bolt is
connected).
Now you will observe the piston
coming out of the caliper gradually.
8. Remove the piston from the caliper housing.
