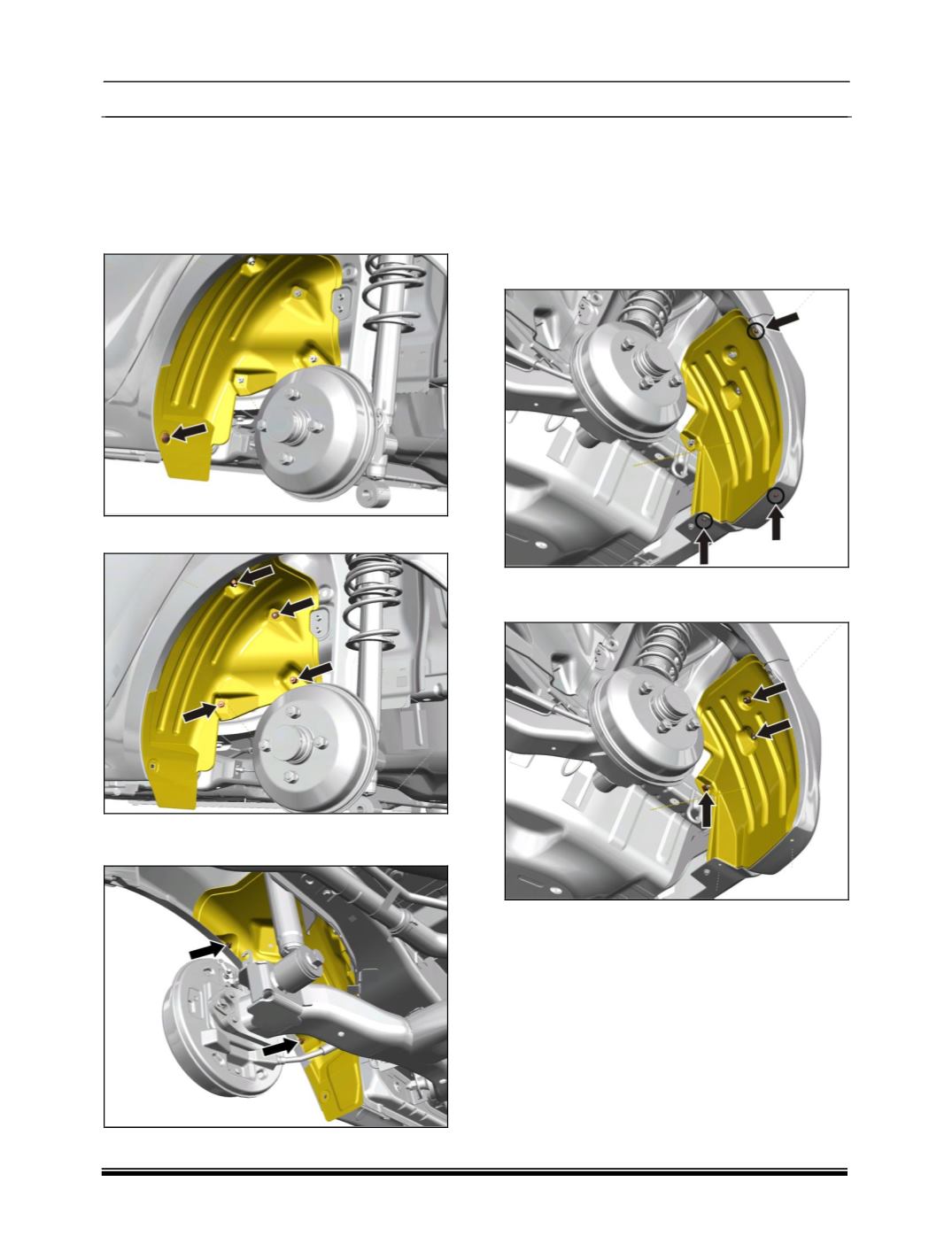

9.2.42 REAR WHEEL ARCH LINER



REAR WHEEL ARCH FRONT

REMOVAL

1. Remove tree clip mounting on rear wheel arch

liner front side.

2. Remove four push on nuts as shown in figure.

3. Remove two push on nuts located inside rear

wheel arch front side.

4. Remove rear wheel arch front.

FITMENT

For fitment follow reverse procedure of removal.



REAR WHEEL ARCH REAR

REMOVAL

1. Remove three rear bumper mounting screw.

2. Remove three push on nuts located inside rear

wheel arch.

3. Remove rear wheel arch rear.

FITMENT

For fitment follow reverse procedure of removal.
