1.2L REVOTRON ENGINE
117

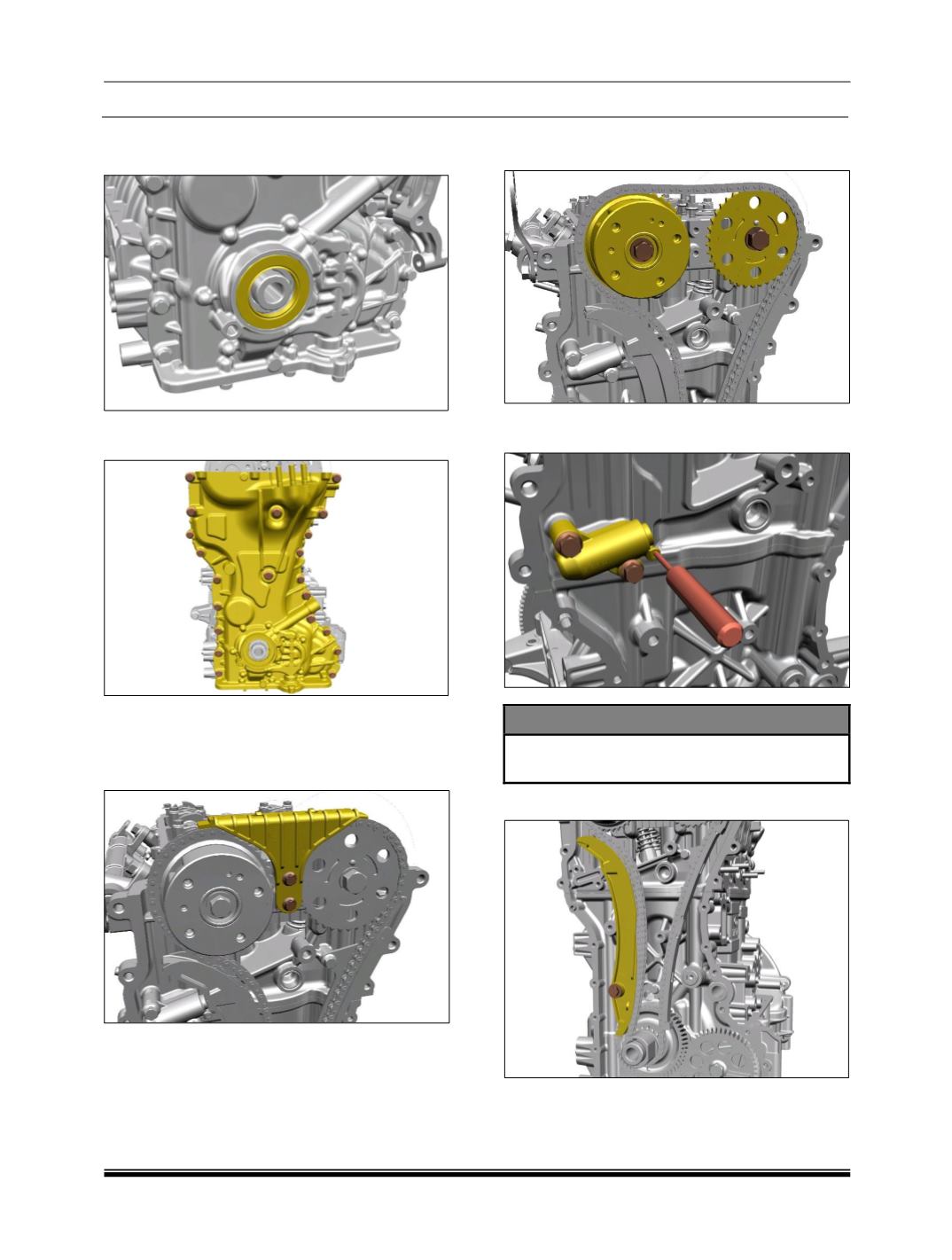

VI. Removal of Timing Chain
1. Remove crankshaft front oil seal.
2. Remove Timing Cover Front with front oil
seal.
3. Keep the piston at top dead center by rotating
crankshaft.
4. Lock the flywheel
5. Remove the camshaft carrier.
6. Soft loosen the VCT and exhaust camshaft
sprocket before removal of timing chain
7. Lock the tensioner by using locking pin and
remove the tensioner.
SPECIAL TOOL
Pin-Timing chain tensioner plunger locking
–
5424 5890 06 04
8. Remove movable guide rail.
