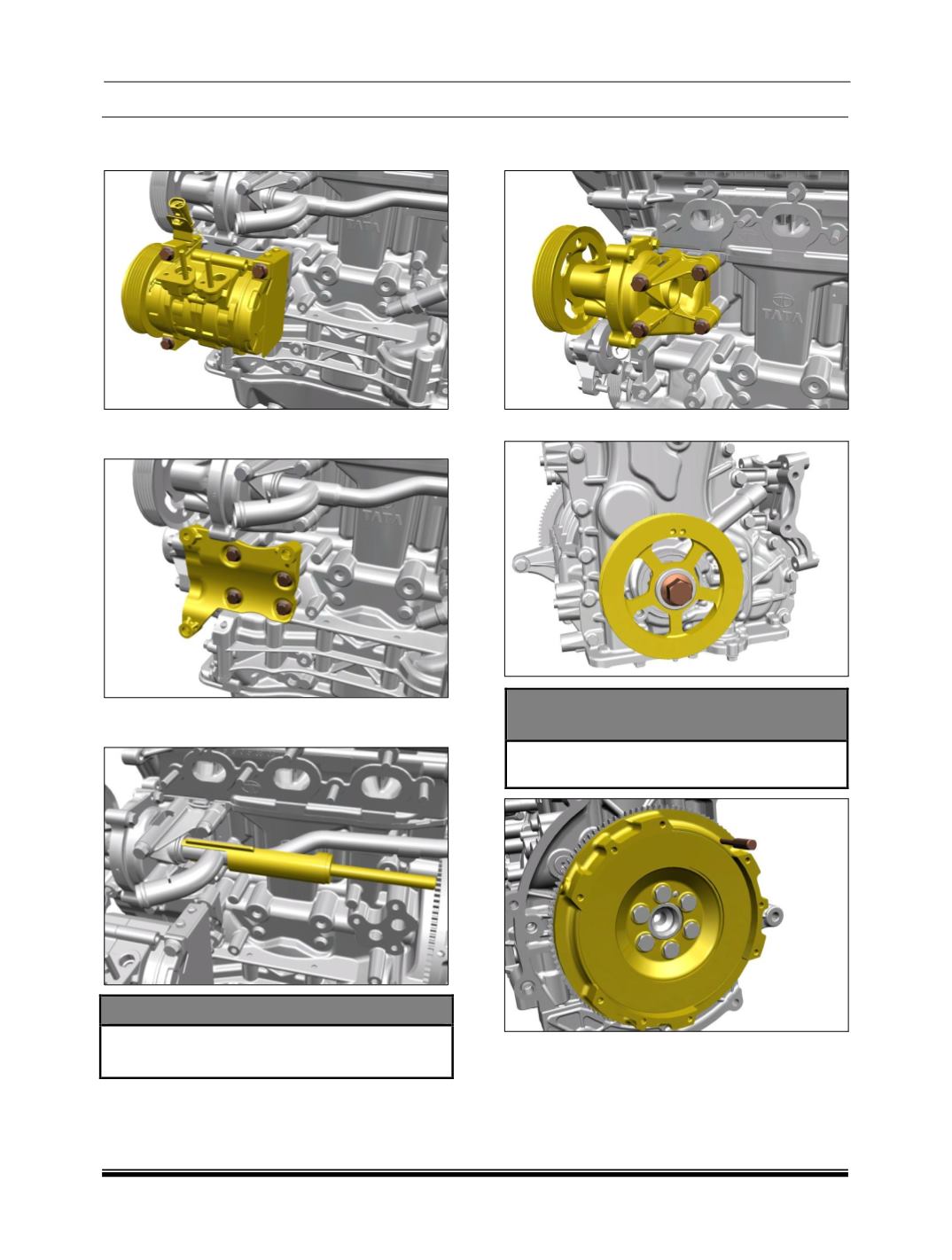

12. Remove the Compressor by removing the
three fasteners.
13. Remove the Compressor mounting bracket by
removing the four fasteners.
14. Remove the water bypass tube by removing 2
bolts and pulling out by special tool.
SPECIAL TOOL
Tool-Water pipe installation
–
5424 5890 20 02
15. Remove the water pump by removing the four
fasteners.
16. Remove crankshaft Pulley.
NOTE
Ensure the flywheel in lock position during
crankshaft pulley removal as given below.
