ELECTRICAL
99

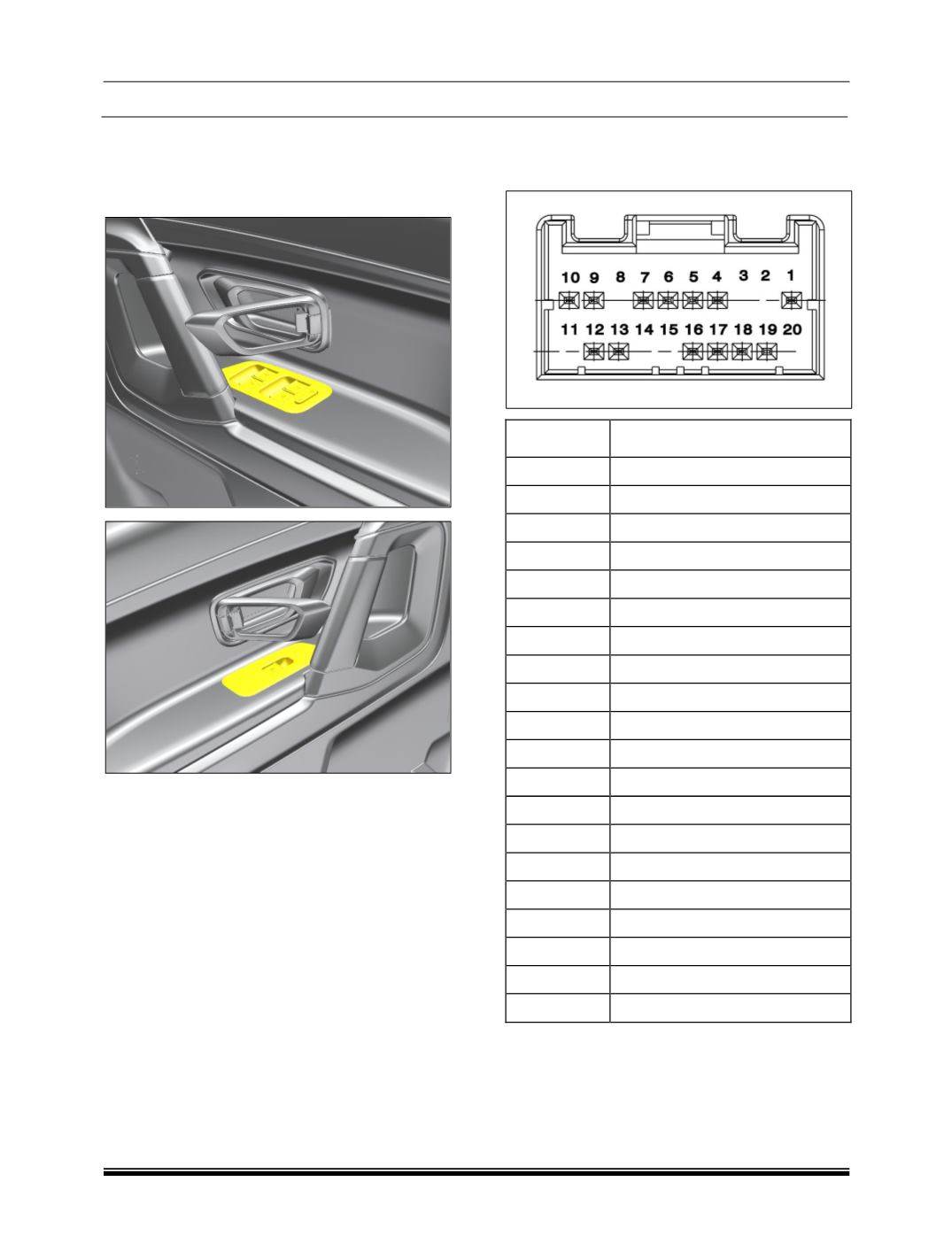

LOCATION
Window winding switches are provided on RH side
front door. Separate individual switch is provided
on front door LH & rear RH / LH doors.
The switch will function when ignition key is turned
to ‟ON‟ position.
For taking window glass “UP”, Pull the knob. And
for window glass “Down”, Push the knob .
Do not press switch further when window glass is
at its extreme position.
Do not operate window glass frequently, otherwise
Window winding motor may get over heated and
stop working till it cools down
Driver Door Window winding switch is 20
pin connector. For pin out details refer below
table.
PIN
DESCRIPTION
1
WINDOW LOCK
2
BLANK
3
BLANK
4
REAR RH (UP)
5
REARRH(DOWN)
6
EARTH
7
REAR LH(DOWN)
8
BLANK
9
REAR LH(UP)
10
+VE FORW/LOCK INDICATOR
11
BLANK
12
FRONT LH (DOWN)
13
FRONT LH(UP)
14
BLANK
15
BLANK
16
-VE LED ILLUMINATION
17
+VE LED ILLUMINATION
18
FRONT RH(UP)
19
FRONT RH(DOWN)
20
BLANK
