ELECTRICAL
32

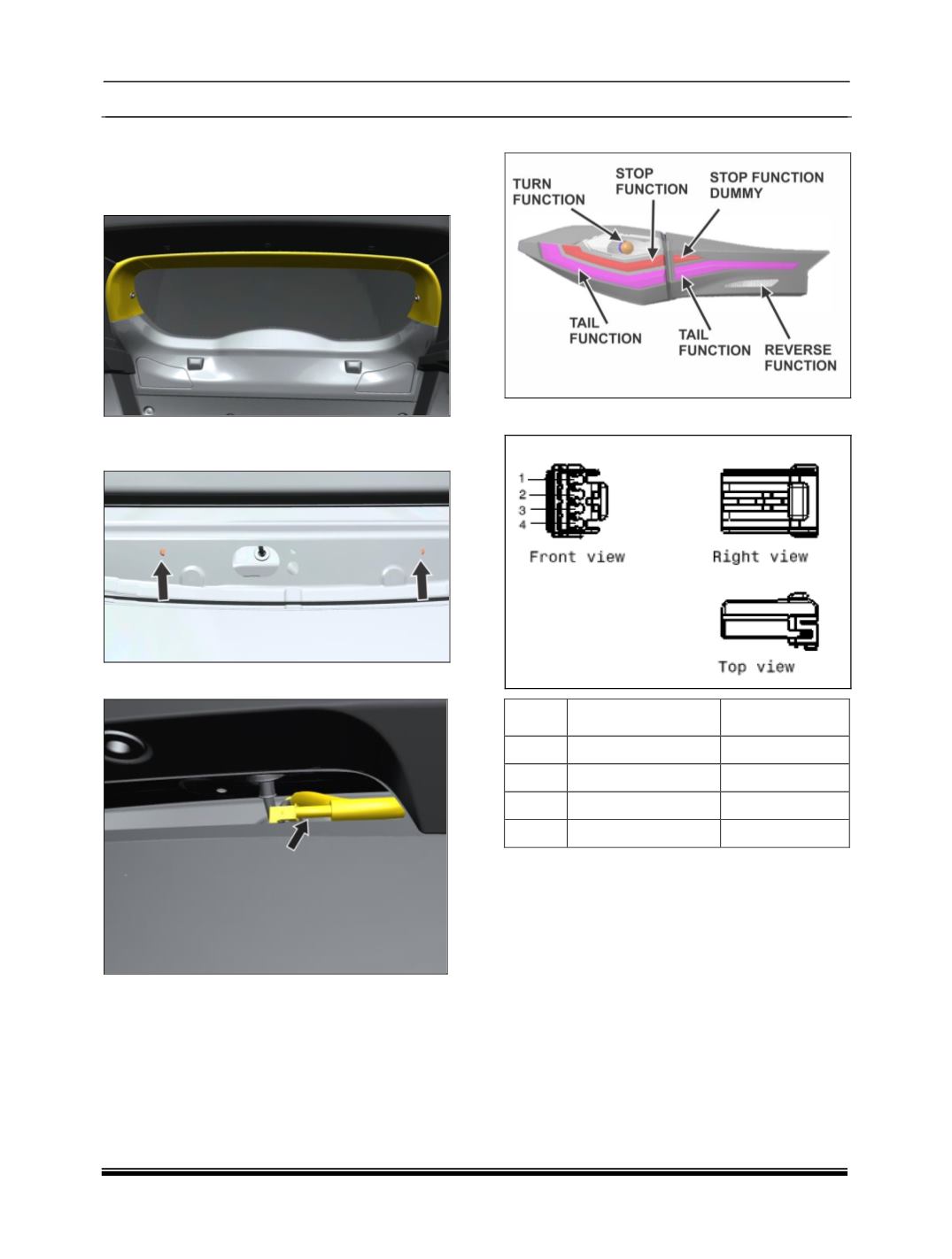

REMOVAL
1. Remove the Tailgate trim (For procedure refer
Tailgate trims removal process in Body
section.)
5. Loosen and remove the Stop Lamp two top
mounting fasteners.
2. Disconnect the electrical connection.
REFITMENT
Follow the removal procedure in reverse.
7.9 TAIL LAMP
BSO SIDE TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Turn
Orange
2
Stop
Red
3
Tail/Position
Green
4
Ground
Grey
