FOR EMERGENCY LOCKING RETRACTOR

REMOVAL (ELR)

REMOVAL

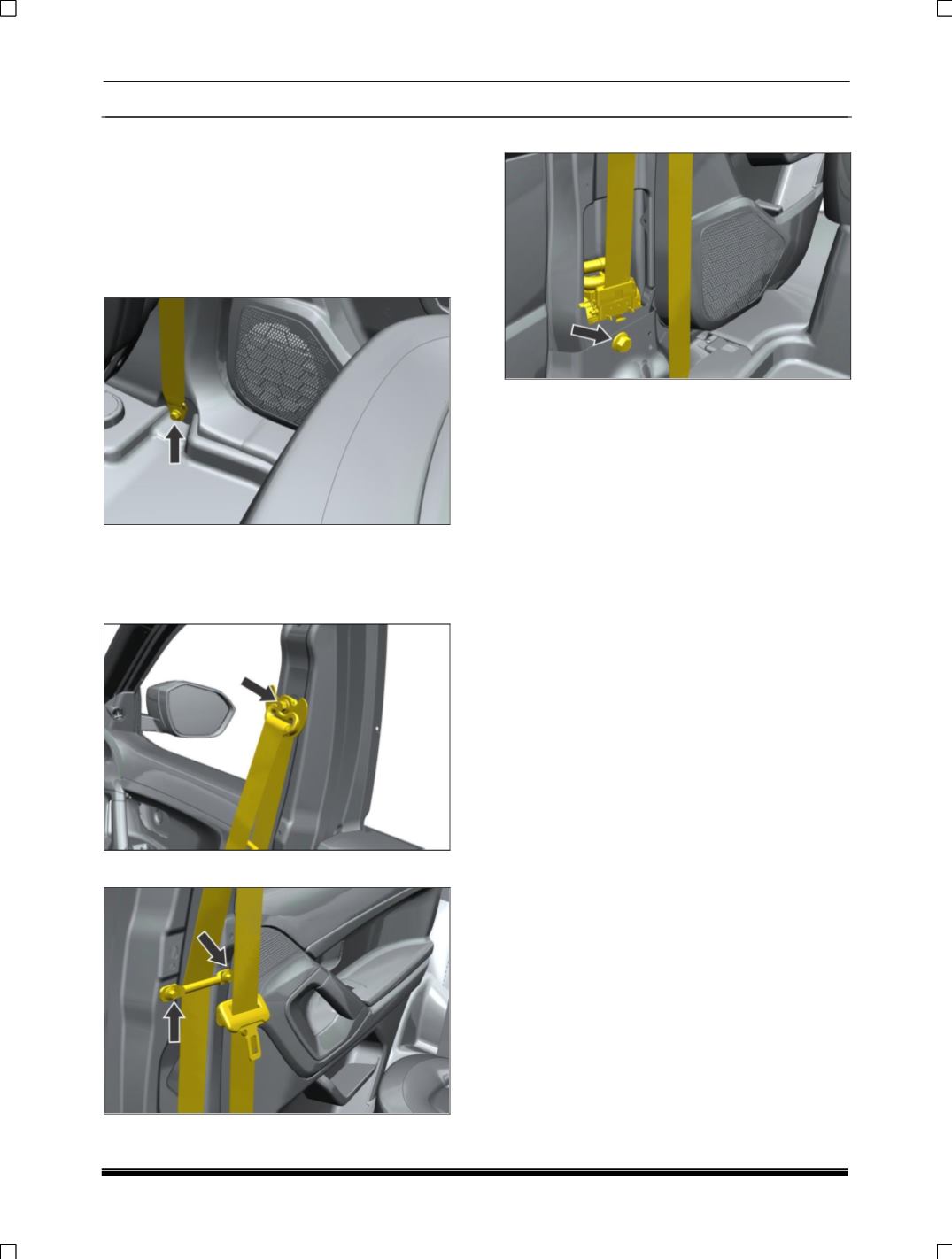

1. Fold the front seat to have easy access for

the belt removal.

2. Loosen and remove the lower mounting bolt of

seat belt.

3. Remove lower “B” pillar trim. (For procedure

refer “B” pillar trim removal procedure in Body

section.)

4. Remove front seat belt anchor mounting bolt.

5. Remove front seat belt mid mounting bolts

6. Loosen and remove the RPLL mounting bolt.

7. Remove the front seat belt assembly.

FITMENT

For fitment follow reverse procedure of removal
