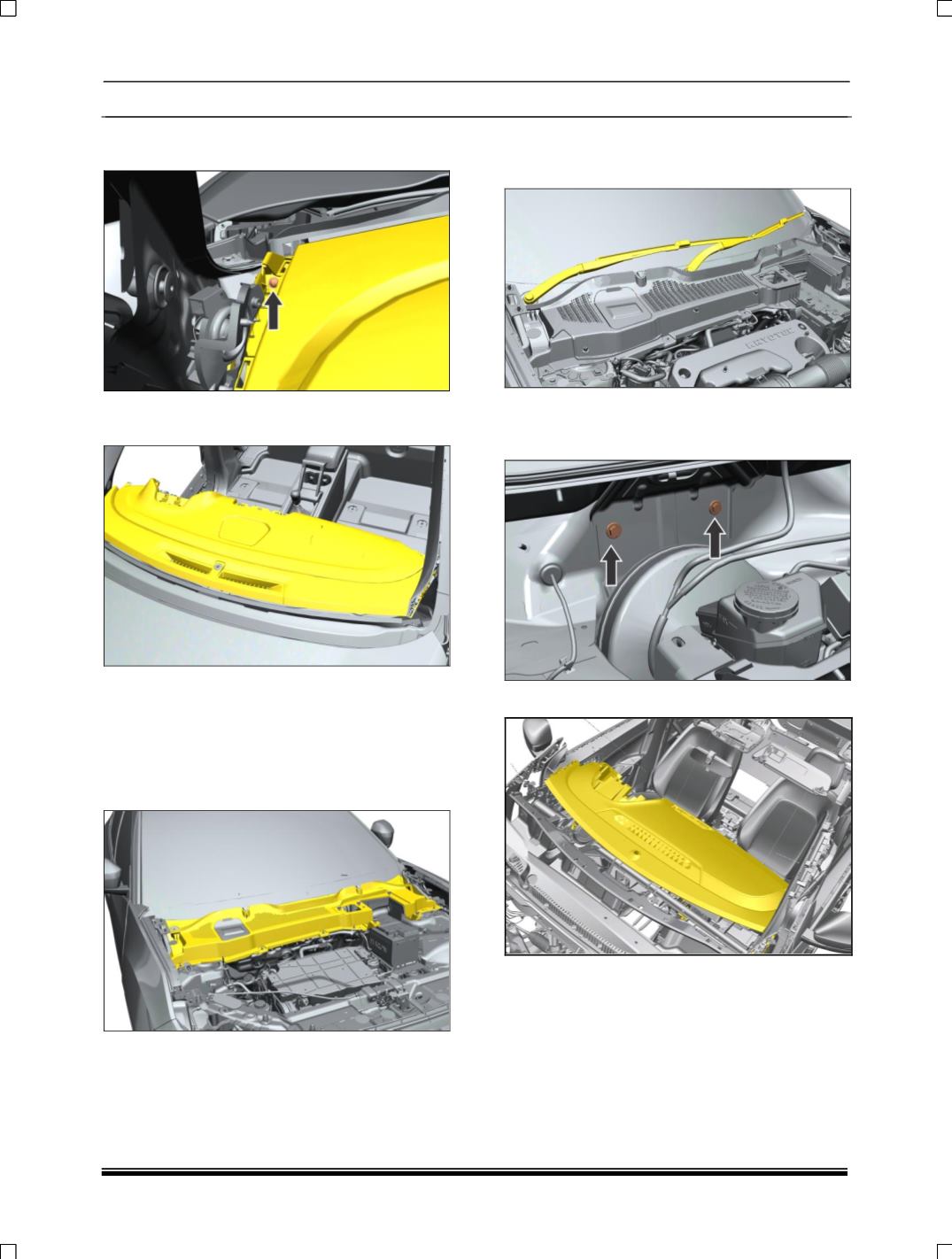

29. Remove two mounting screw near A
pillar.(LH,RH)
30. Disengage 3 locators located on BIW plenum
panel brackets.
31. Remove the dashboard, while removing
Dashboard carefully disengage HVAC system
behind the glove box.
32. Open the Bonnet.
33. Pay out seven Grommet pin and pull out
plenum cover ,
34. Remove Front Wiper (For procedure refers
Front Wiper removal process in Wiper
section.)
35. Remove mounting three (M8X110) bolts of
cockpit from engine side.( Torque 2.25 ± 10%
kg-m))
36. Pull out cockpit with dashboard
FITMENT
For fitment follow reverse procedure of the
removal.
