G. HEATER HOSE REMOVAL AND ASSEM-
BLY
a) HEATER OUTLET HOSE REMOVAL
1. Remove clamp spring band from firewall side.
2. Remove clamp spring band from engine side.
3. Remove heater hose HVAC out.
FITMENT
For fitment follow the reverse procedure of removal.
b) HEATER INLET HOSE REMOVAL
1. Remove clamp spring band from firewall side.
2. Remove quick connector from engine side.

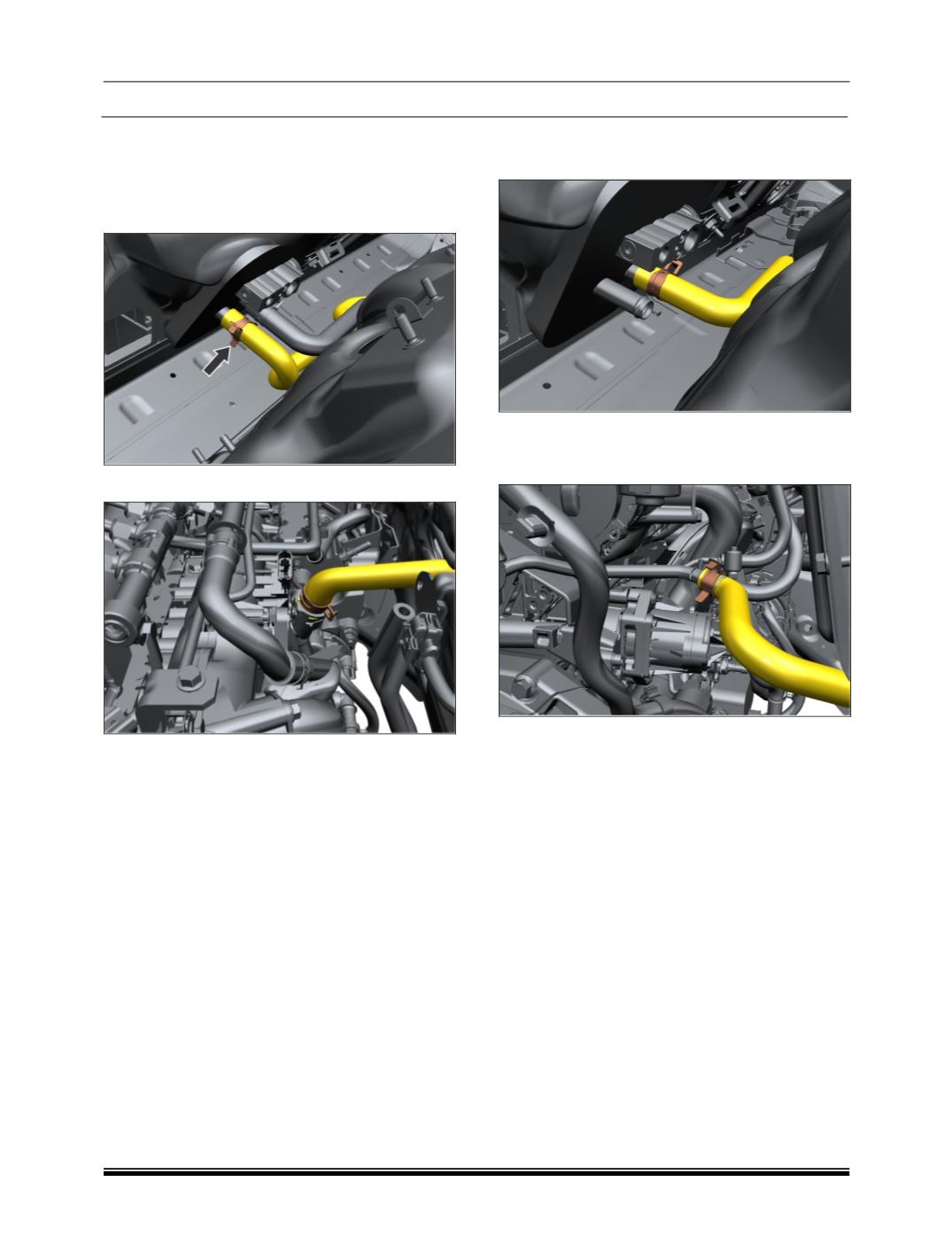

3. Remove hose clamps attached to the firewall as
shown in below figure.
4. Remove outlet hose.
FITMENT
For fitment follow the reverse procedure of removal.
