543 / 948
FATC
55

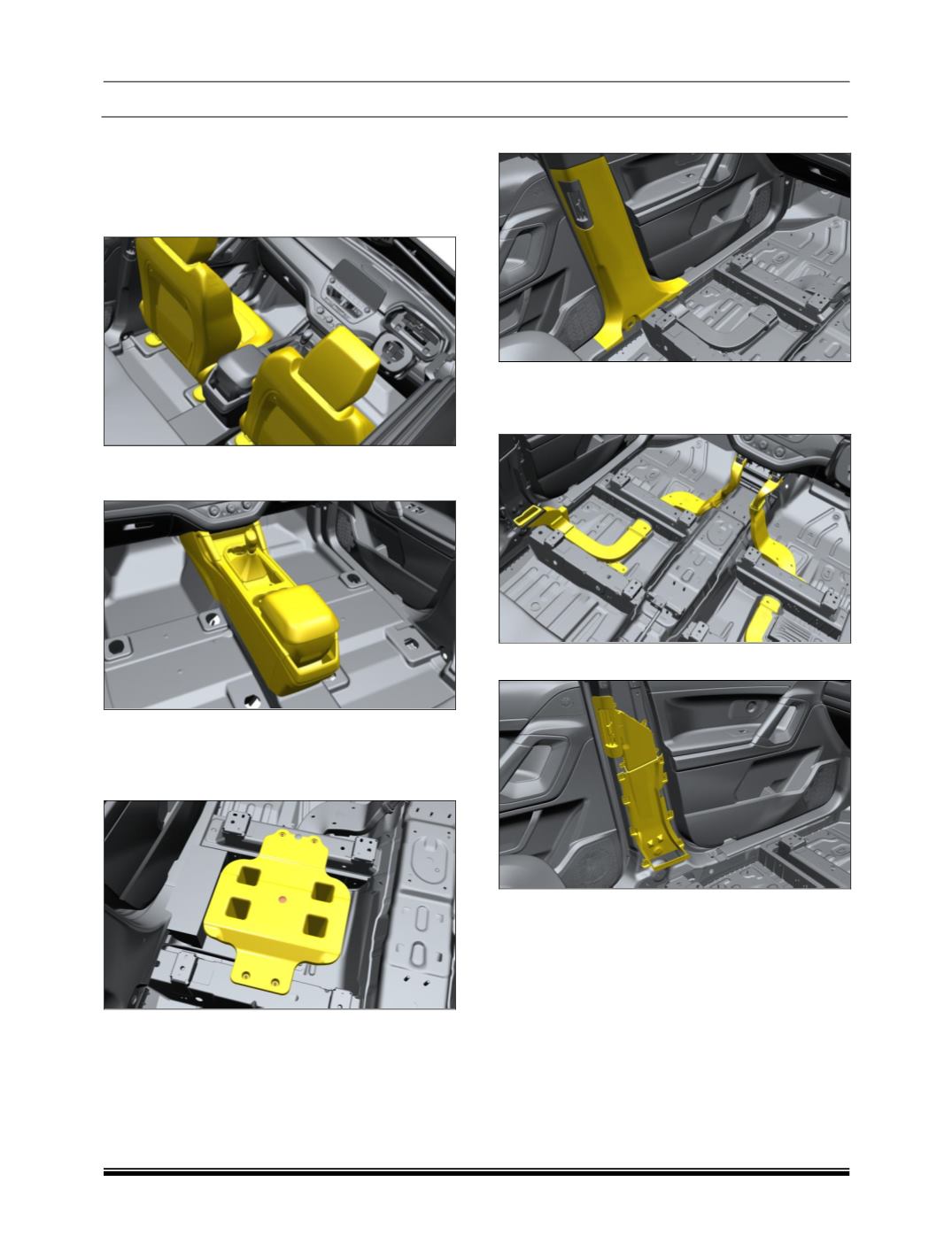

E. B-PILLAR VENT REMOVAL AND AS-
SEMBLY
1. Remove Driver and Co-driver side Front
Seat.(Refer Body Draft for Seat Removal Proce-
dure)
2. Remove Floor Console Assembly. (Refer Body
Draft for Seat Removal Procedure)
3. Remove Carpet passenger compartment.
4. Remove rear floor carpet.
5. Remove carpet mounting bracket.
6. Remove B-Pillar.(From LH & RH side)
7. Remove B-Pillar Duct Assembly LH & RH
Mountings on Body and take out B-Pillar Duct
Assembly.
8. Remove B-Pillar Housing Rear Vent.(LH & RH)
ASSEMBLY
For assembly follow the reverse procedure of re-
moval.
