BRAKES
44

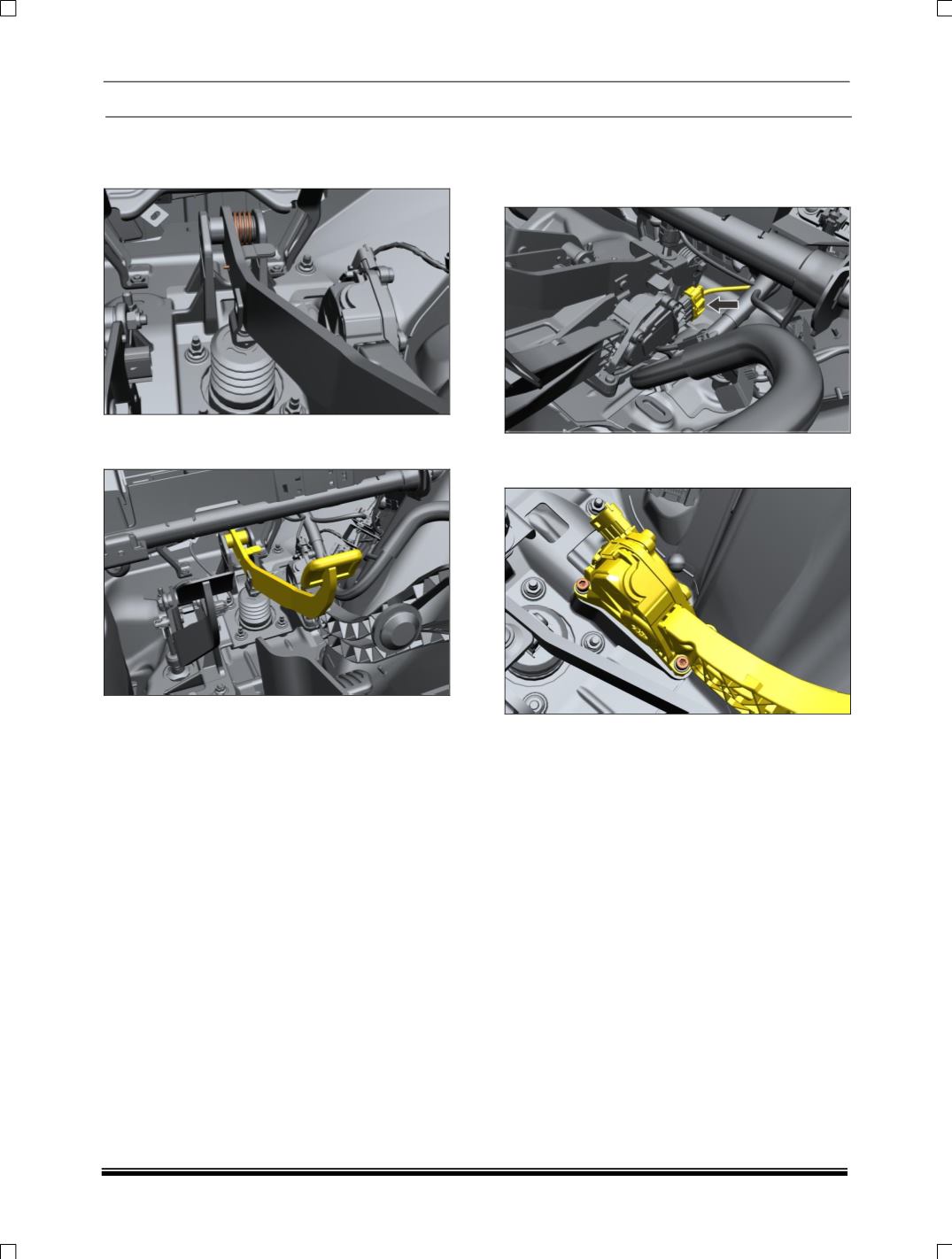

7. Disconnect the brake pedal return spring from
steering column mounting bracket and from
the brake pedal.
8. Take out brake pedal from brake booster
assembly.
FITMENT BRAKE PEDAL
For fitment follow the reverse procedure of brake
pedal removal.
REMOVAL OF ACCELERATOR PEDAL
1. Remove Electrical connection from the
accelerator pedal.
2. Remove all M6 cap screw on accelerator
pedal.
3. Lastly take out accelerator pedal.
FITMENT ACCELERATOR PEDAL
For fitment follow the reverse procedure of
accelerator pedal removal.
