SUSPENSION
32
20. INSTALLATION OF REAR DAMPER
ASSEMBLY AND COIL SPRINGS:
1.
Refit the Damper Assembly top mounting
fasteners with new nylon nut on Body and
tighten to 11 kgm Torque.
2.
Fit and rotate the top rubber with the coil
spring.

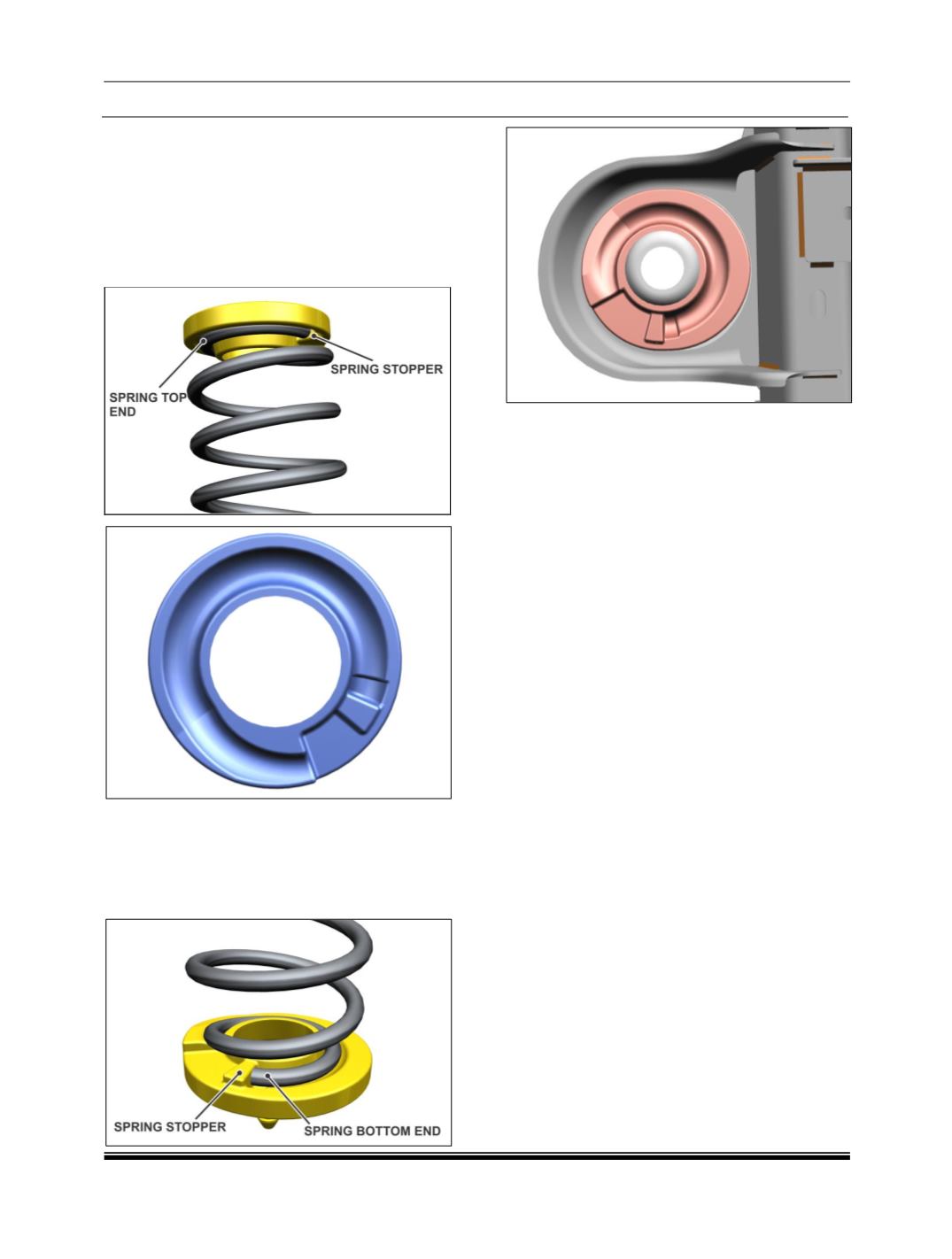

LH / RH Spring Orientation
3.
Position the spring bottom rubber pad is to
fixed to twist beam in two holes. Spring to be
oriented such that end rest and against the
stopper of bottom rubber pad.
Spring Orientation
4.
Raise the torsion beam using hydraulic jack so
that the coil spring gets compressed and
Damper Assembly
sits exactly over torsion
beam properly.
5.
Refit and Torque Rear
Damper Assembly
Bottom Fastener. (As per torque table).
6.
Refit the rear wheels.
7.
Remove the Car from 2 Post Lift.
NOTE:
While fitment of damper the bottom bush to be
tighten in ECIE condition. Jacking on the
beam not to be done to avoid failure.
