68 / 71
791A G 0.35 (HQ)
CAB
514K Y 0.35 (HQ)
CAB
23U Y 0.35 (ALL)
CAB
36U G 0.35 (ALL)
CAB
23AB Y 0.35 (ALL)
FRT
36AB G 0.35 (ALL)
FRT
36AQ G 0.35 (ALL)
FRT
23AQ Y 0.35 (ALL)
FRT
36S G 0.35 (ALL)
CAB
23S Y 0.35 (ALL)
CAB
36AM G 0.35 (ALL)
CAB
23AM Y 0.35 (ALL)
CAB
36F G 0.35 (DZ)
CAB
23F Y 0.35 (DZ)
CAB
23L Y 0.35 (DZ)
CAB
36L G 0.35 (DZ)
CAB
23C Y 0.35 (DZ)
CAB
36C G 0.35 (DZ)
CAB
23A Y 0.35 (HQ)
CAB
36A G 0.35 (HQ)
CAB
36AG G 0.35 (NK)
CAB
23AG Y 0.35 (NK)
CAB
23W Y 0.35 (HA)
CAB
36W G 0.35 (HA)
CAB
23AC Y 0.35 (ALL)
FRT
36AC G 0.35 (ALL)
FRT
14PP028135
08.10.18
24.08.18
12.06.18
11.06.18
14PP028120
14PP028093
14PP028073

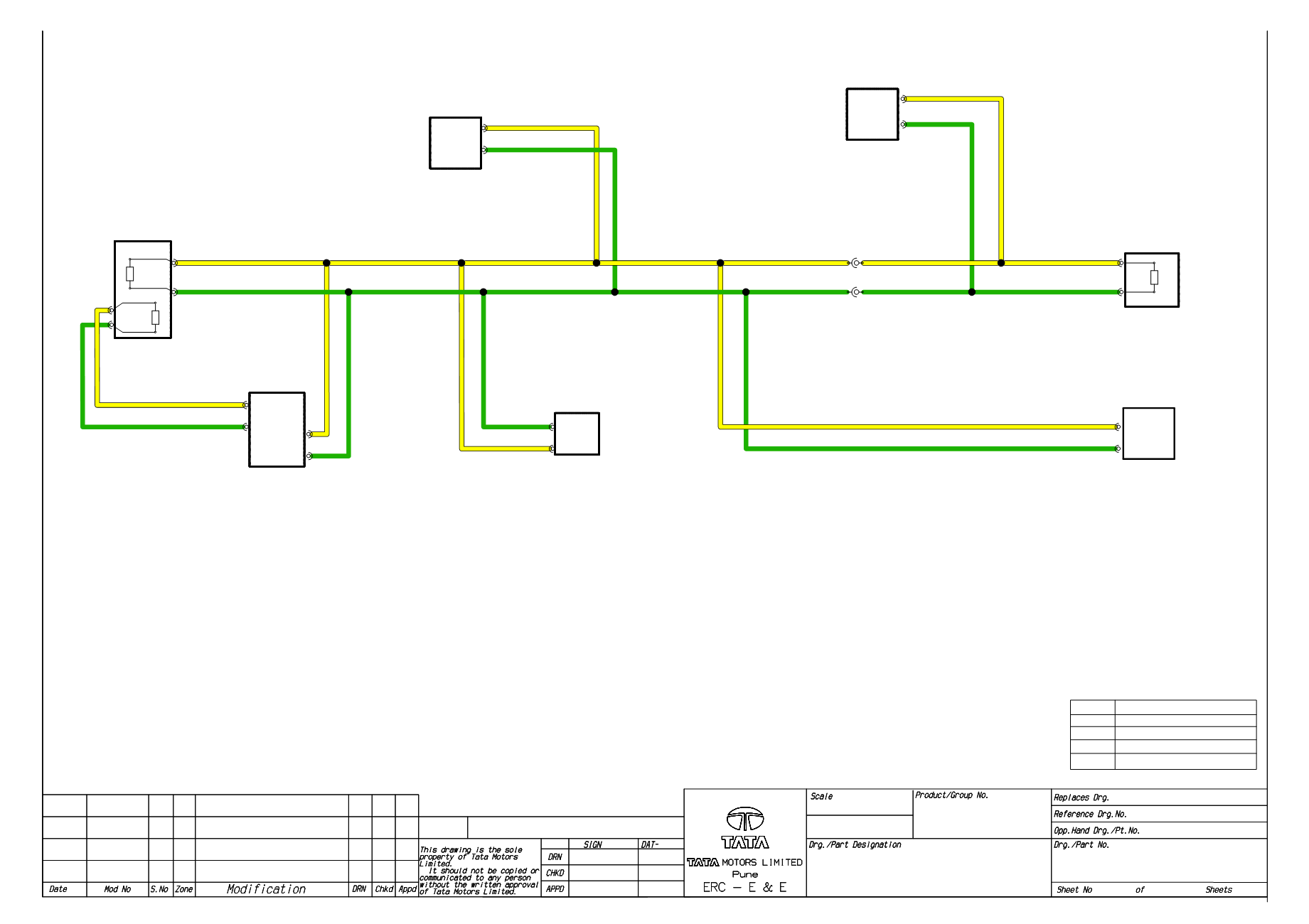

CAN SYSTEM - XE
Q501/Q502
SOP RELEASE
PP RELEASE
P0 RELEASE
BETA - II RELEASE
PR IW TS
PR IW TS
PR IW TS
PR IW TS
NR
a
b
c
PHASE
DESIGN
DR4
HM
06/10/17
NU
TS
06/10/17
06/10/17
29
CAOA
NTS
5412 5400 0007
67
70
NK
HA
DZ
ALL
OPTION
FCA DIESEL BS-IV
MANUAL TRANSMISSION
IMMOBILIZER
ALL VARIANTS
DESCRIPTION
INSTRUMENT CLUSTER-SEGMENTED
120.00 Ohms
CONNECTOR
DIAGNOSTIC
IMMOBILISER
120.00 Ohms
C001UF C001UM 40
C001UF C001UM 54
MODULE
RESTRAINTS CONTROL
EMS ECU (DIESEL)
120.00 Ohms
BCM
ABS/ESP ECU
C026A-23
V CAN L
C026A-22
V CAN H
C026A-26
CAN L
C026A-25
CAN H
C018-6 DIAG CAN H
C016A-8
CAN_L
C016A-3
CAN_H
C018-14 DIAG CAN L
C018-8
V CAN H
C018-9
V CAN L
S23A
S36A
S23B
S36B
S23J
S36J
S23K
S36K
C176A-1
V CAN H
C176A-2
V CAN L
S23M
S36M
C017K-13
CAN1 H
C017K-14
CAN1 L
C006A-26
CAN_H
C006A-14
CAN_L
C021A-48
V CAN H
C021A-49
V CAN L
