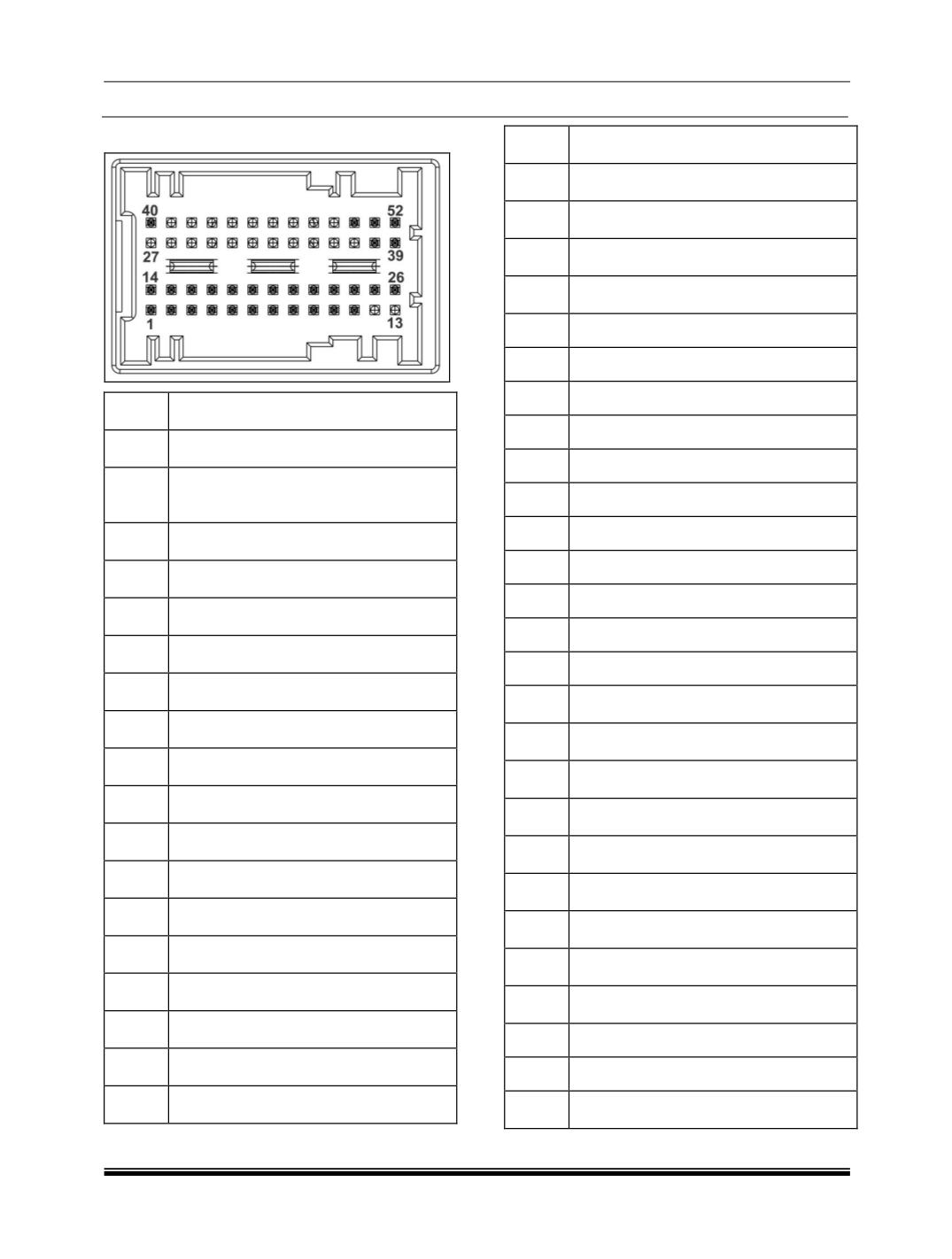

CONNECTOR D
PIN
DETAILS
1
Wiper Front Low High Relay Control
2
Central
Lock
Internal
Switch
Signal/InternalLockUnlockSwSig
3
Bonnet State
4
Rear Right Door State
5
Low Beam Switch Signal
6
Wiper Front Low Speed Signal
7
Mirror Fold Unfold Switch
8
Smart Entry Wakeup Signal
9
Spare3
10
Auto Light ON Signal
11
CAN_Body_H
12
CAN_Body_L
13
Tailgate State
14
Cent Unlock Internal Switch Signal
15
Rear Left Door State
16
Main Beam Switch Signal
17
Wiper Front High Speed Signal
18
Cockpit dimming Signal
19
Wiper Rear Fixed Internal Signal
20
ML Fail safe Switch Signal
21
Spare4
22
LIN 2
23
Battery GND3
24
-
25
-
26
-
27
-
28
-
29
-
30
-
31
-
32
-
33
-
34
-
35
Roof Lamp LED Out
36
DRL Position Lamp Control RH
37
Head Lamp High Beam Relay
38
-
39
-
40
-
41
-
42
-
43
-
44
MirrorFold-
45
MirrorUnFold
46
-
