ELECTRICAL

182

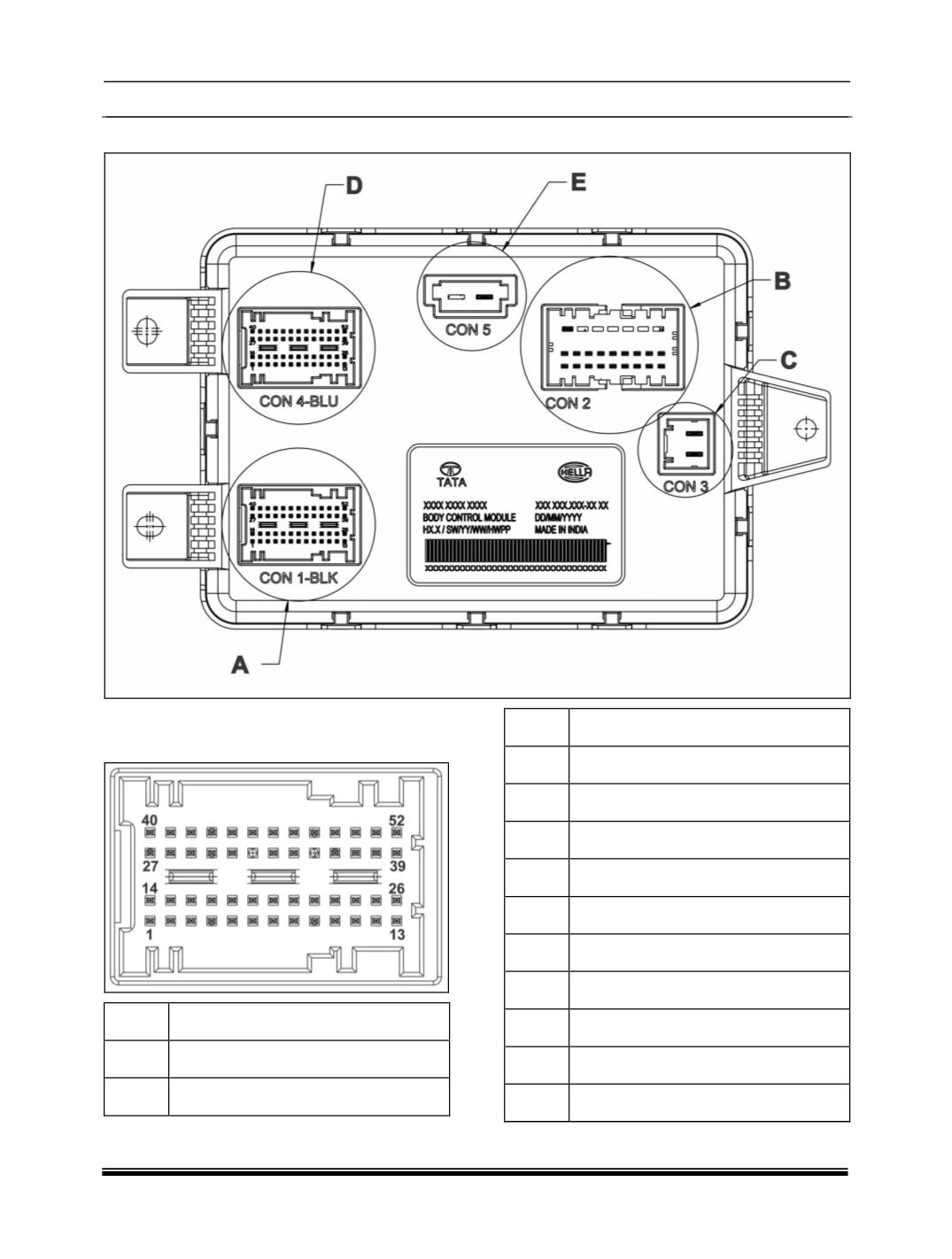

CONNECTION DETAILS

PINOUT DETAILS

CONNECTOR A

PIN

DETAILS

1

Driver Door State

2

Transport Link Signal

3

Door Window Up Switch

4

Head Lamp ON Signal

5

Wiper Rear park Signal

6

Turn Right Switch Signal

7

Driver Door Unlock Signal

8

Ignition Key State IGN

9

Key IN Signal

10

Wash Rear Switch Signal

11

Wiper Rear Mode Switch Signal

12

Co-driver/Other Door State

13

Position Lamp Switch Signal
