ELECTRICAL
85

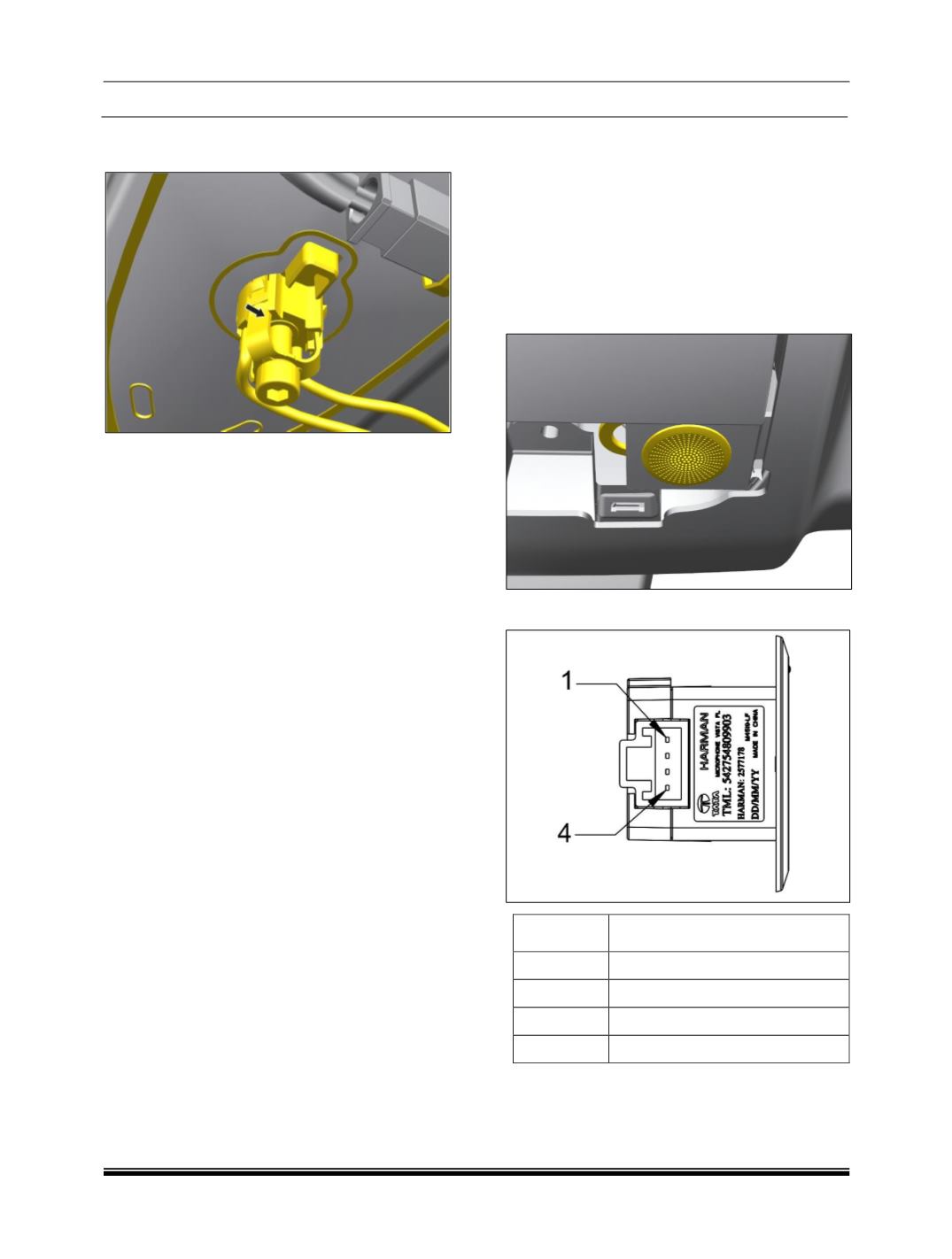

3. Loosen the fixing screw and take out the
antenna from top.
REFITMENT
For refitment follow the removal procedure in
reverse.
Torque specified for fixing screw: 4 Nm±1
17.4 MICROPHONE
A microphone is an acoustic-to-electric transducer
or sensor that converts sound into an electrical
signal.
The microphone helps communicate calls through
the infotainment system. In some models provision is
given for fitment.
LOCATION
It is fitted on roof lamp bezel.
PINOUT DETAILS
PIN
DESCRIPTION
1
MIC -
2
MIC +
3
NC
4
NC
