ELECTRICAL
82

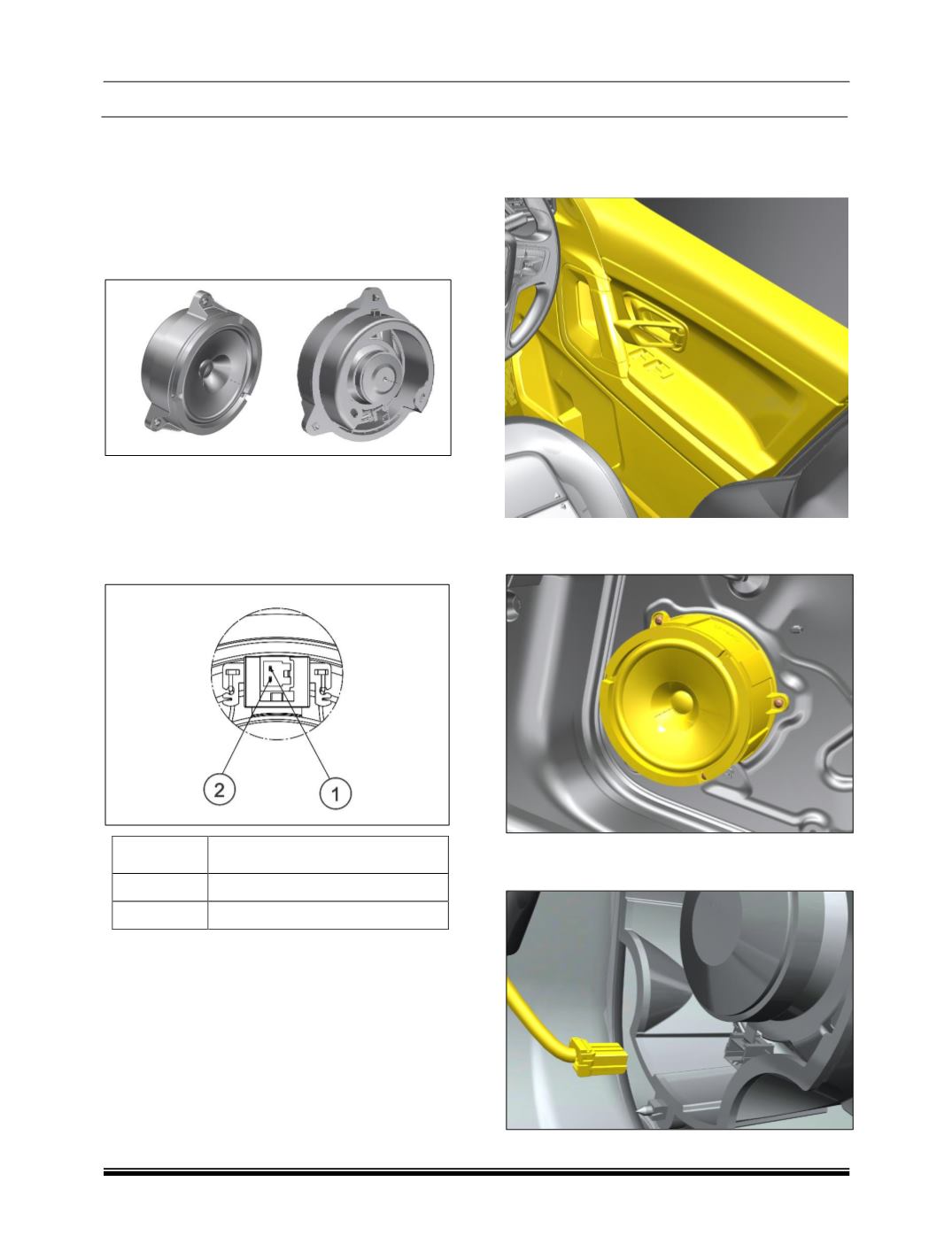

17.2 SPEAKERS
Front & rear door speakers are component speaker
which consist of woofer only
Speakers and tweeters are provided on models with
infotainment system. Provisions are given for music
system and speakers on models without infotainment
system.
LOCATION
There are total 4 speakers fitted in the vehicle of
which two are fitted in the front door and rear door
respectively.
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
+ve
REMOVAL
1. Remove the door trim
(For procedure refers
door trims removal process in body section.)
2. Loosen and remove the three mounting screws
of speaker.
3. Pull out the speaker. Disconnect the connection
and take out the speaker.
