ELECTRICAL
73

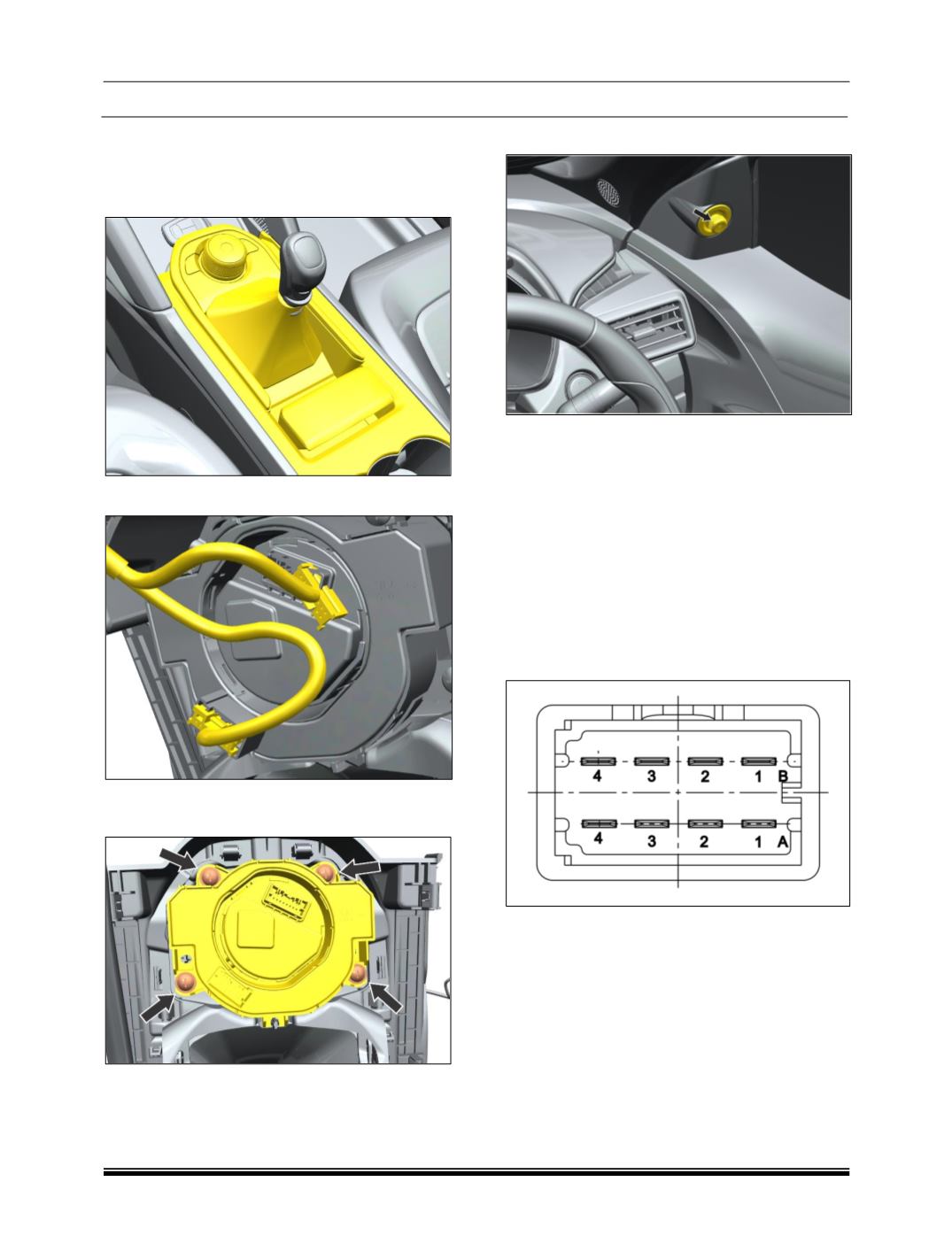

REMOVAL
1. Remove the front console.
(For procedure
refers front console removal process in body
section.)
2. Remove electrical connection of switch.
3. Lossen and remove the moutning screw of
switch.
REFITMENT
For refitment follow the removal procedure in
reverse.
16. MIRROR SWITCH (If Applicable)
Function:-
1. Mirror selection LH / RH
2. LH / RH Mirror Adjustment
3. Mirror Fold / Unfold
Mirror fold/Unfold (If applicable)-
Knob need to be in center. It should not be at left &
right mirror selection.
Pull Knob down for Mirror folding & again for mirror
unfolding.
PINOUT DETAILS
