ELECTRICAL
70

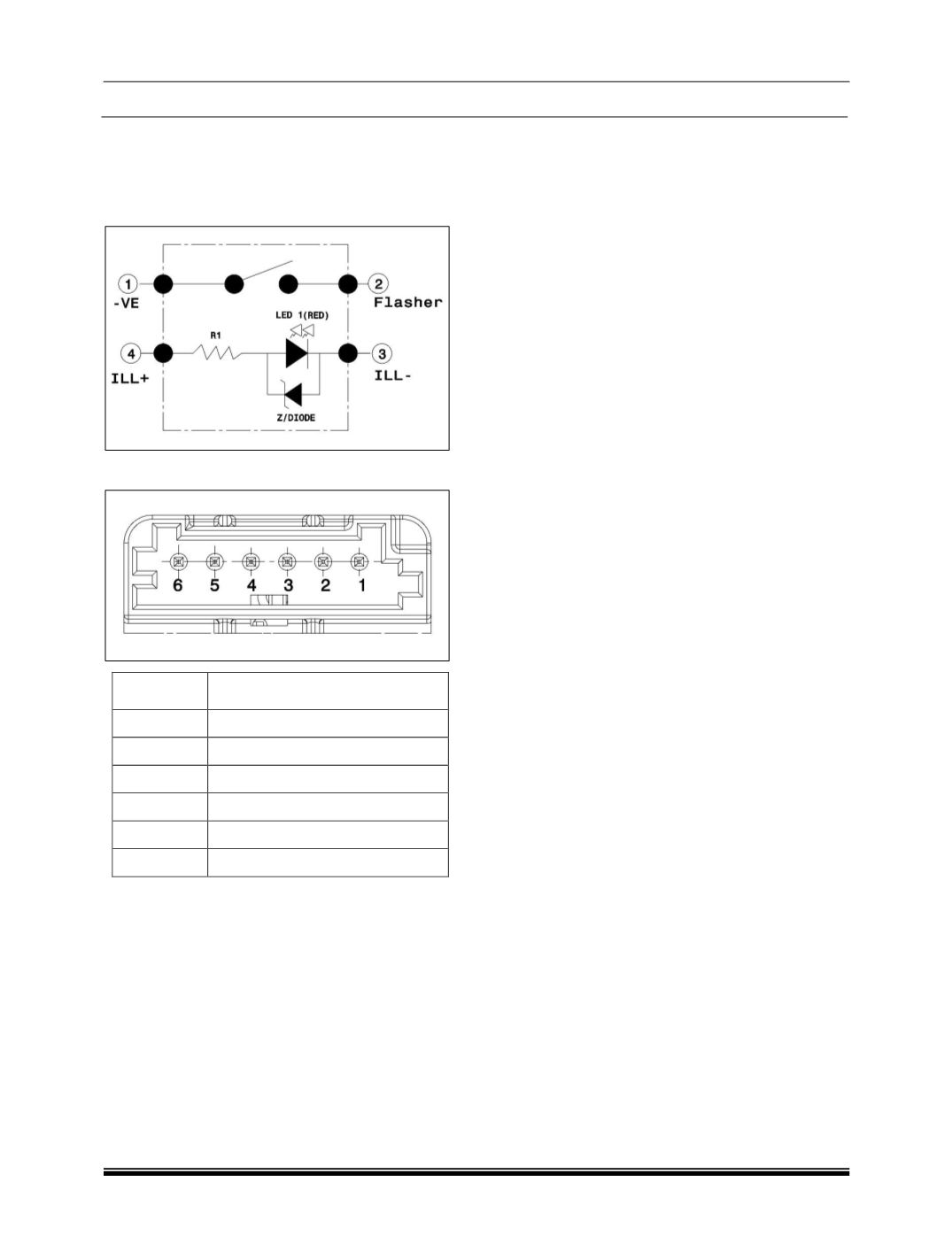

A. HAZARD SWITCH
When the switch is pressed, hazard waning
indicators start flashing.
CIRCUIT DETAILS
PINOUT DETAILS
PIN
DESCRIPTION
1
-VE
2
FLASHER
3
ILLUMINATION -
4
ILLUMINATION +
5
NC
6
NC
B. ECO DRIVE MODE SWITCH (If Applicable)
Three drive modes are provided. These modes can
be used to adjust characteristics of engine &
Vehicle performance.
Drive mode switch is provided on Centre Floor
console. Selected drive mode will be displayed on
instrument cluster as telltale
When Switch is in ECO mode, Switch sends
continuous signal to EMS ECU at ECO Pin.
There is no Signal at Sport Pin
When Switch is in Sport mode, Switch sends
continuous signal to EMS ECU at Sport Pin.
There is no Signal at ECO Pin
When Switch is in City mode, Switch does not
send any signal to EMS ECU Switching
sequence City-->ECO-->Sport will be repeated
in 4 sets in one 360 rotation in clock wise knob
rotation & Vice versa for antilock wise direction.
