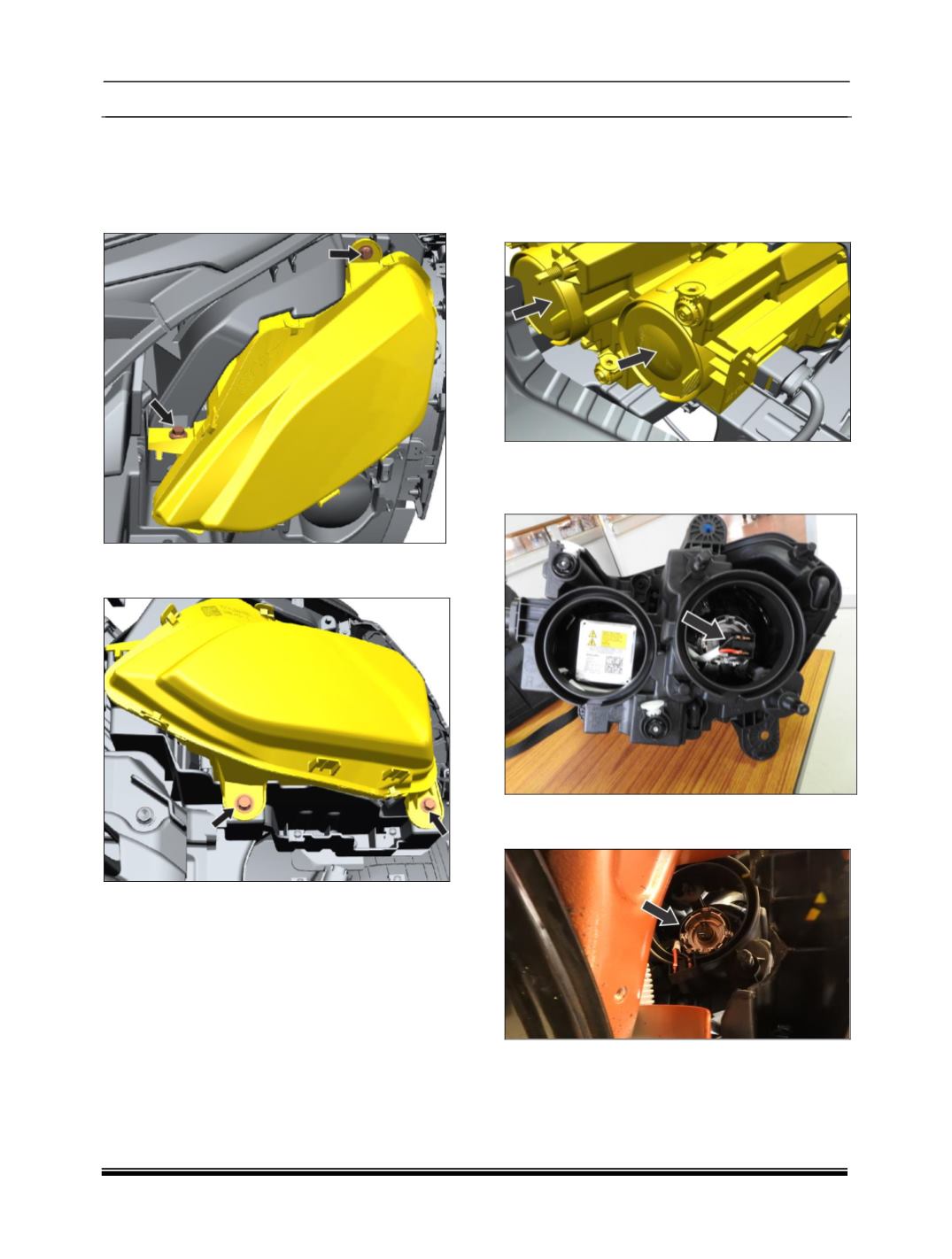

4. Remove the front bumper (For procedure refer

Front bumper removal process in Body

section.)

5. Loosen and remove the headlamp two top

mounting fasteners.

6. Loosen and remove the headlamp "Inner

Mounting" & side fastener.

7. Hold head lamp properly and remove it.

REFITMENT

1. Position headlamp to its proper place.

2. Refit headlamp Inner fastener. (One No.)

3. Refit headlamp top fasteners. (Two No.)

4. Connect headlamp connection.

5. Refit front bumper.

REMOVAL & REFITMENT OF HEAD LAMP

BULBS

1. Open engine hood & ensure all lamps in OFF

condition.

2. Remove beam & position lamp press fit cover.

3. Push harness downward direction and

Disconnect connect (if required) & lamp

connection.

4. Rotated the Anticlockwise direction bulb and

tilled in forward direction and remove.

5. Remove bulb.
