650 / 948
ELECTRICAL
25

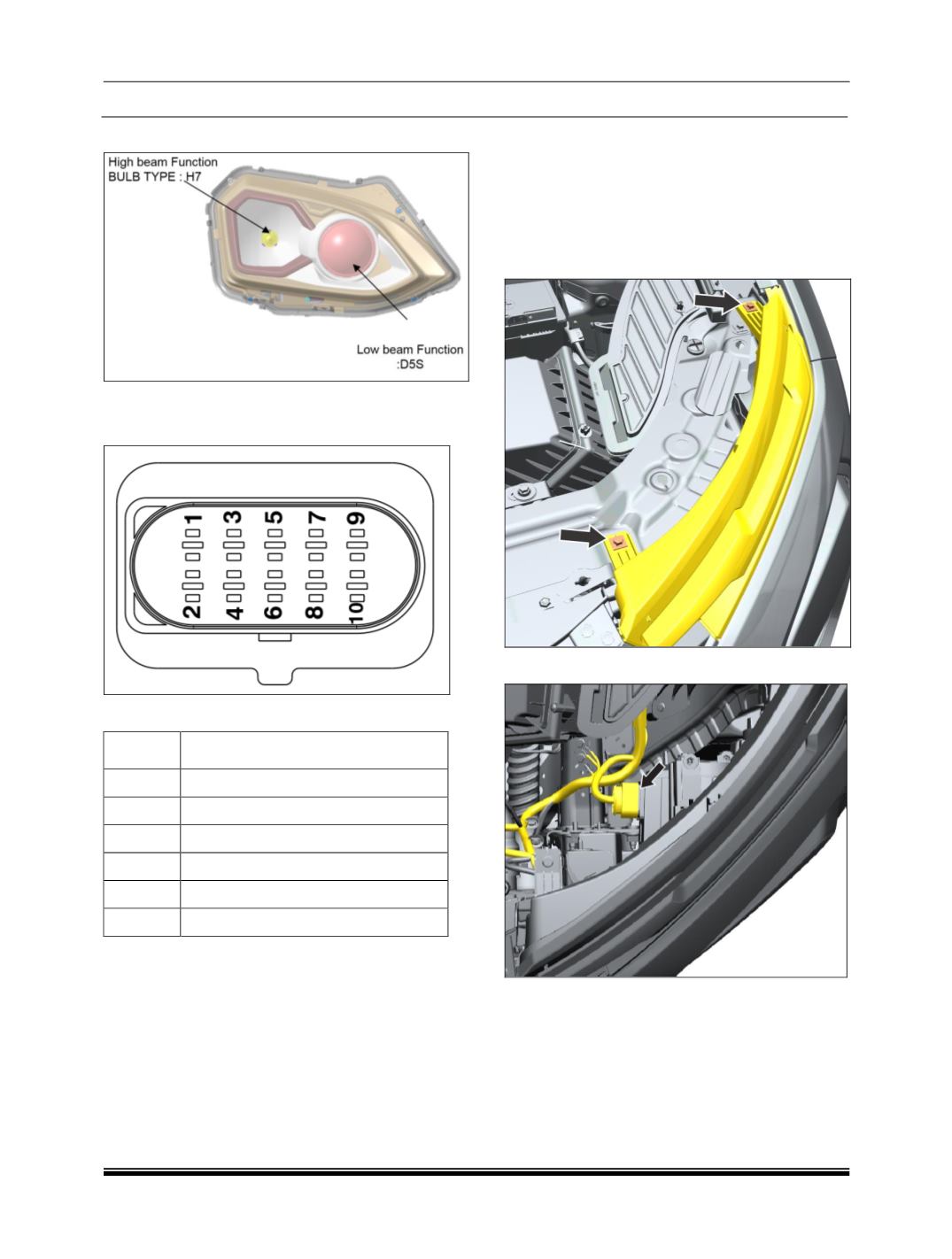

7.4 HEAD LAMP
PINOUT DETAILS
Headlamp connector
i. High version
PIN
DESCRIPTION
1
Low Beam (D5S, 12V , 25W)
2
High Beam (H7, 12V , 55W)
3
GROUND(LOW BEAM + VAC)
4
GROUND (HIGH BEAM)
5
INTERNAL VAC(+Ve)
6
INTERNAL VAC(SINGLE)
REMOVAL AND REFITMENT OF HEAD LAMP
REMOVAL
1. Open engine hood & ensure all lamps are in
OFF condition.
2. Loosen and remove the mounting fasteners.
3. Disconnect DRL electrical connectors.
