FATC
14

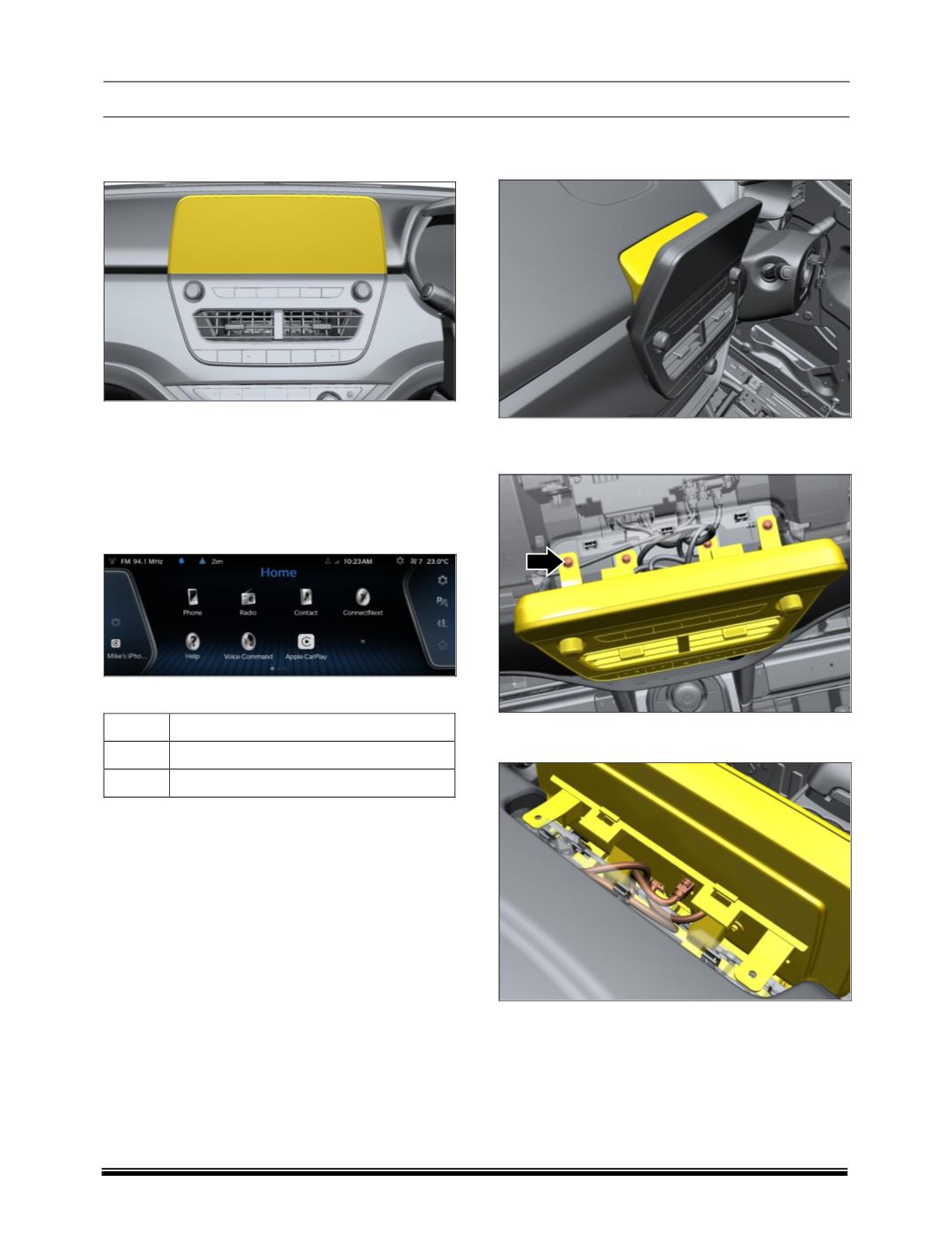

5. HMI CLIMATE CONTRL DISPLAY
It is located on the dashboard.
HMI CLIMATE CONTRL STATUS DISPLAY
The Climate Control feature is vehicle dependent.
The infotainment system displays the following cli-
mate control related information in its display screen
bottom bar.
Display Screen with Climate Control Details in
Right side
Display Screen Climate Information
1.
AC ON/OFF display and control
2.
Blower speed display and control
3.
Temperature display and control
CLIMATE SETTINGS CHANGE POPUP
The system displaysmessage when you change any
of the climate settings like temperature / blower us-
ing the FATC controls. The system displays popup
message when you:
Switch ON/OFF the AC
Increase/decrease the blower speed
Increase/decrease the temperature
Shift between air re-circulation options (Recircu-
late or Fresh)
Change the air distribution mode
Set Maximum Defrost
Set Economy mode
Set AUTO mode
REMOVAL OF CLIAMTE CONTROL DISPLAY
1. Carefully remove cover assembly.
2. Remove the four mounting screw on infotain-
ment.
3. Disconnect all the electrical connections to pull
out the display from dashboard.
REFITMENT
For fitment, follow reverse procedure of removal.
