499 / 948
FATC
11
SR
NO.
DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION

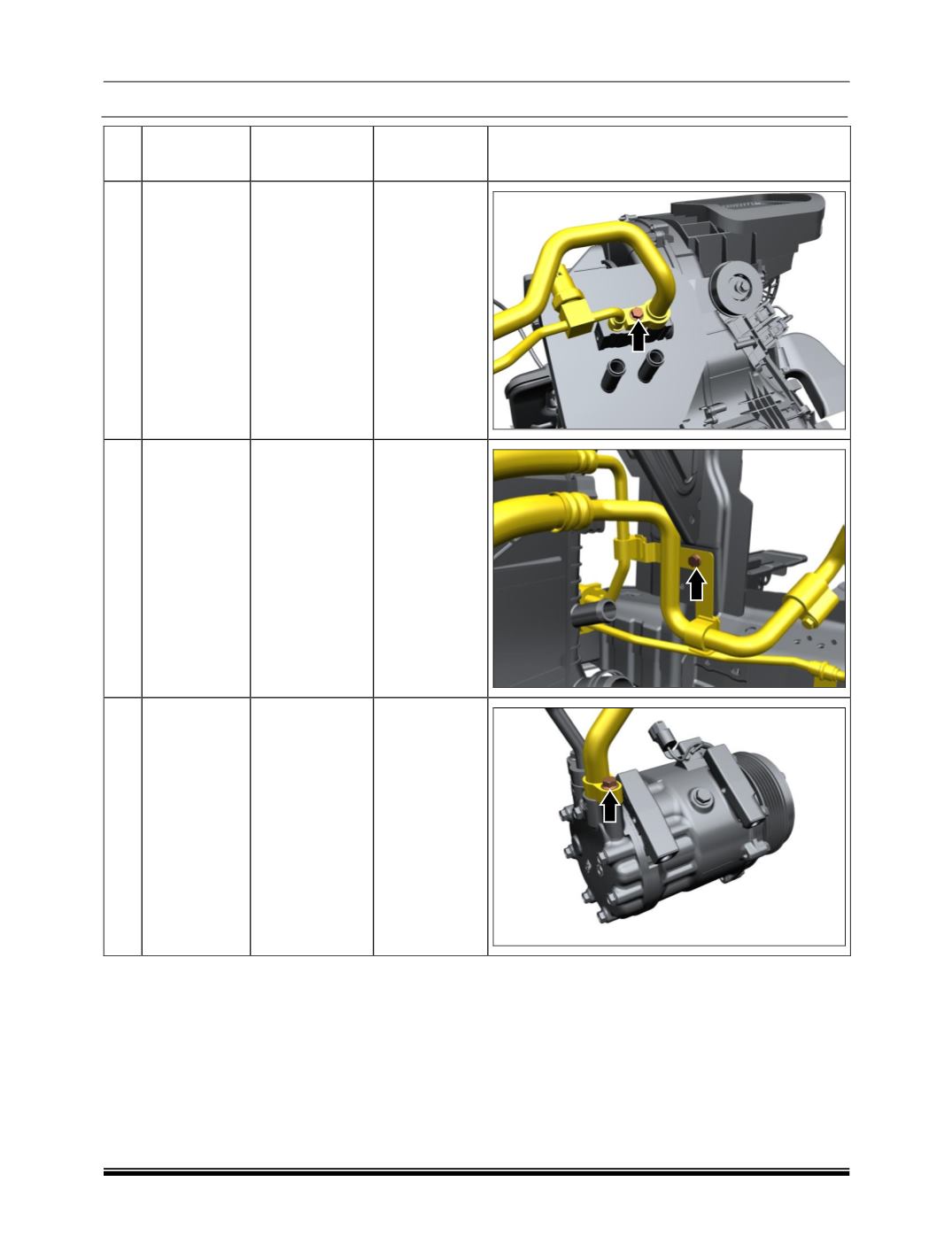

6
Liquid and suc-
tion
pipe
assembly
clamping with
TXV
HEX FL BOLT
M6X28
6 ~ 8
HVAC bracket
clamping on
vertical mem-
ber
H/FL SCREW
M6X14
6 ~ 8
Suction hose
assembly
HEX FL SCR
M6X30
6 ~ 8
