KRYOTEC ENGINE
38

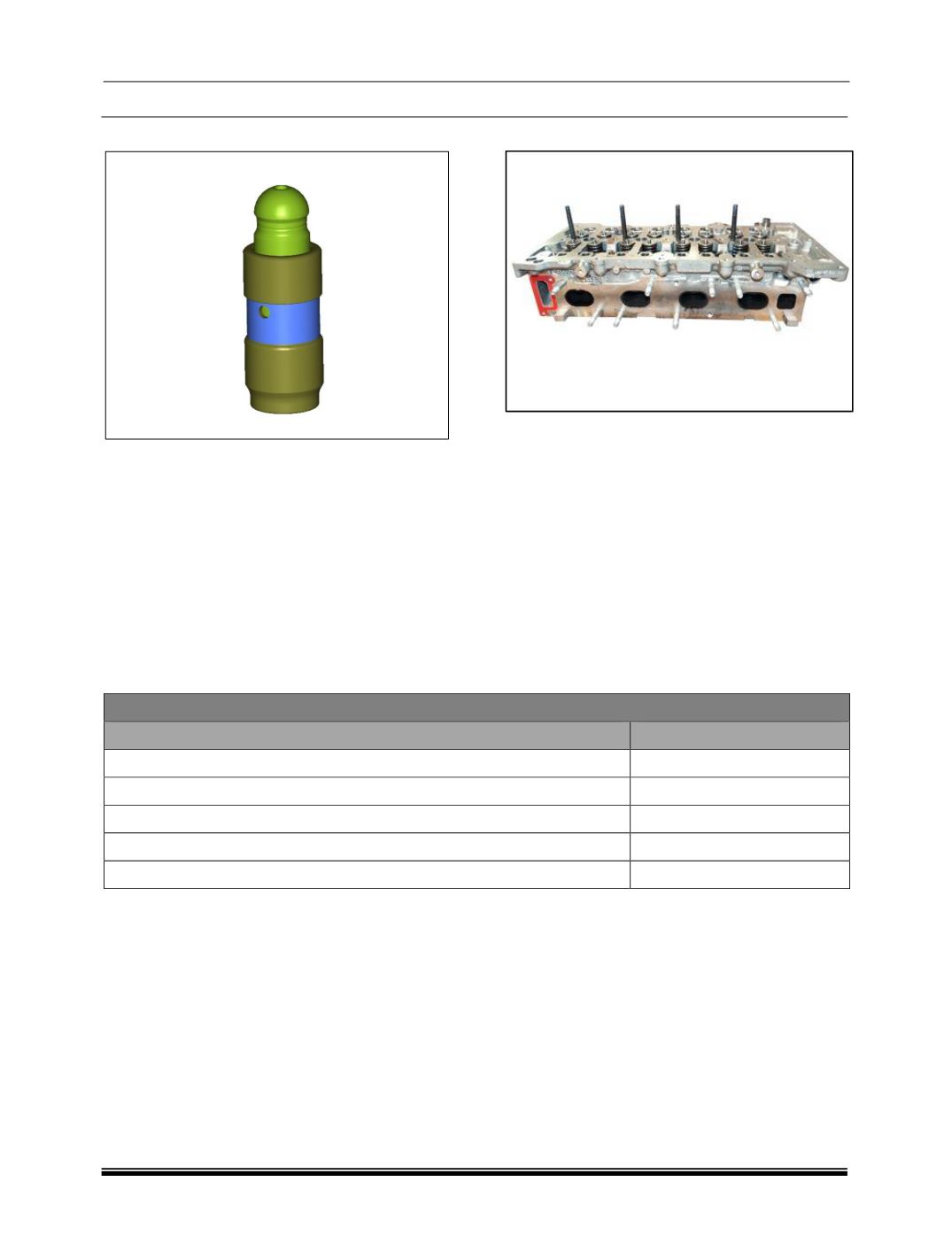

F. HYDRAULIC LASH ADJUSTER
1. Hydraulic Lash Adjuster supports the pivot end
of the rocker arm while automatically
controlling the rocker arm position to keep it in
contact with the camshafts and valve.
2. The range of the hydraulic lash adjuster
accommodates engine build tolerances; hence
no adjustment is required during engine
assembly. It also compensates for variation
that occurs during the life of the engine.
3. Check lash adjuster for functionality, replace if
necessary.
G. VALVE GUIDES
1.
In case of valve stem sticking in valve guide
bore or Excessive clearance between them,
remove replace cylinder head.
2.
Check the condition of valve guide oil seals.
3.
Check valve guide bore diameter in cylinder
head.
4.
Fit Valve guide oil seals
VALVE GUIDES
Measure
Value
Valve stem diameter- Intake (mm)
4.982 - 5.000
Valve stem diameter - Exhaust (mm)
4.972 - 4.990
Outer diameter valve guides (mm)
010 - 10.030
Increase outer diameter valve guides (mm)
05 / 0.10 / 0.25
Internal diameter valve guides (mm)
015 - 5.033
NOTE
Valve Guides and Valve Seats are separately not serviceable. They come along with the cylinder head as an
assembly.
