SUSPENSION
17
8.
EXPLODED VIEWS
OF
REAR SUSPENSION

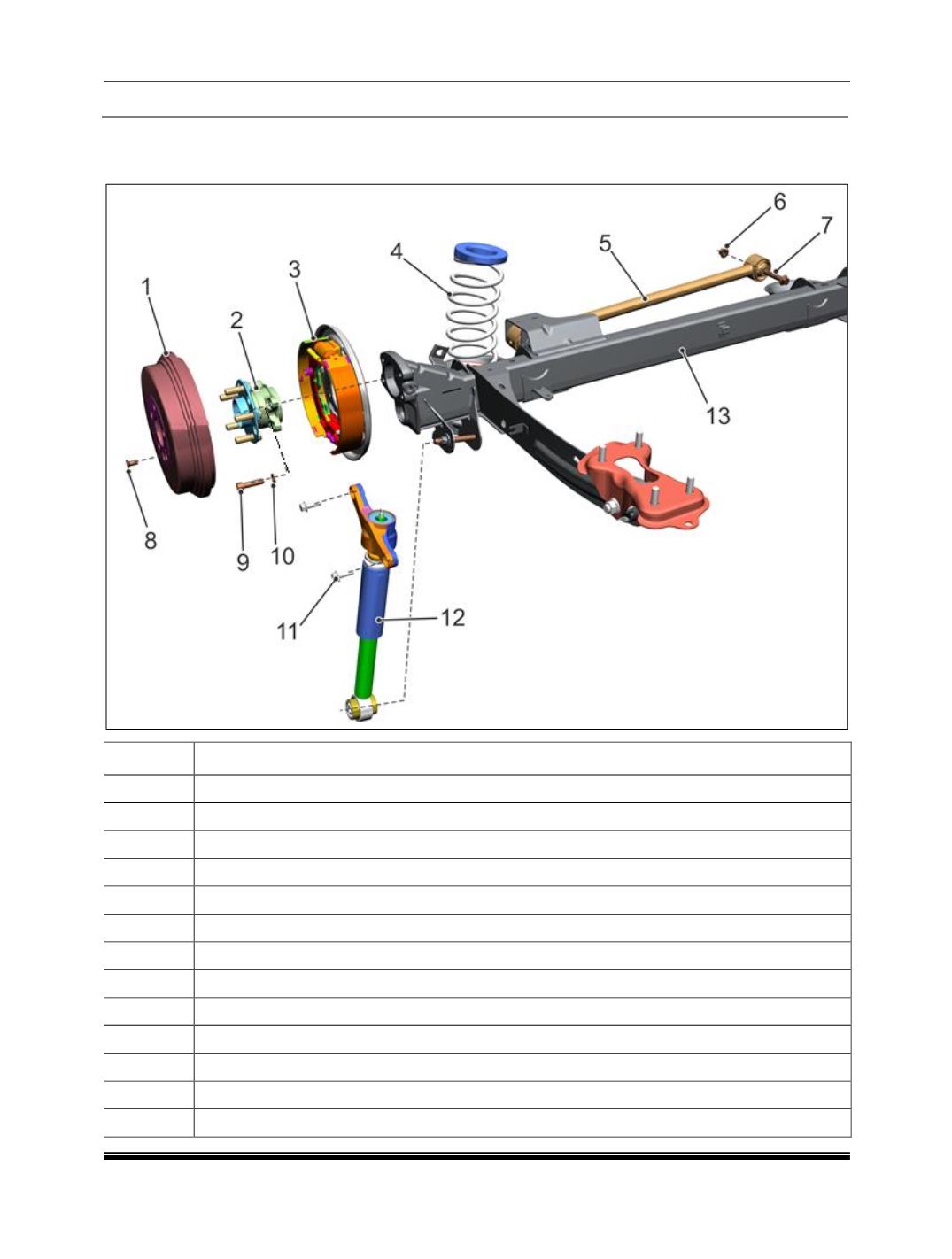

A) REAR AXLE EXPLODED VIEW
SR. NO.
DESCRIPTION
01
BRAKE DRUM,REAR DIA. 254
02
HUB ASSY
03
DRUM BRAKE ASSY,REAR
04
REAR SPRING;WITH ISOLATORS
05
PANHARD ROD
06
H/FL NUT AM14X1.5 TS17430 -10SS8451S2-YH
07
BOLT M14X1.5X95 TS17130-10.9SS8451S2-YH
08
SL CSK SCREW M10X20
09
HEX SCREW
10
WASHER
11
SCR M12X1.5X35
12
DAMPER ASSY,REAR
13
CROSS BEAM,REAR TWIST BEAM
