C635 TRANSAXLE
26
Input shaft Locking Plate 5412 5890 2608

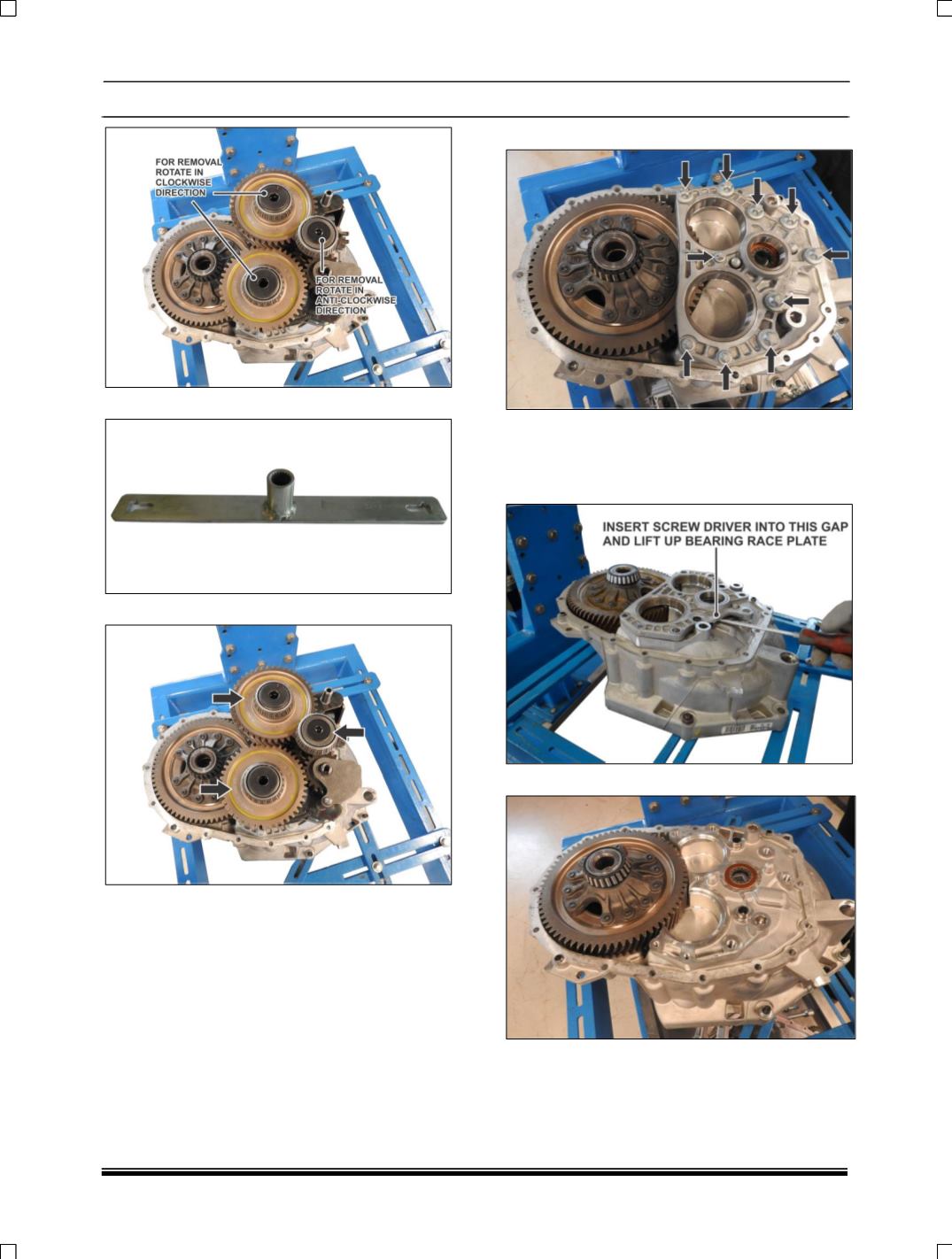

18.Remove the output and main shafts as a group.
19.Remove the bearing race plate bolts.
NOTE:
Use a screw drive or equivalent as an aid in
releasing the plate from the locating bushings.
20.Remove the bearing race plate.
21.Remove the differential assembly.
22.Assemble the Race plate to remove the input &
output shaft bearing outer race.
23.Remove the output shafts bearing outer race
from bearing race mounting plate using Puller
