BRAKES
49

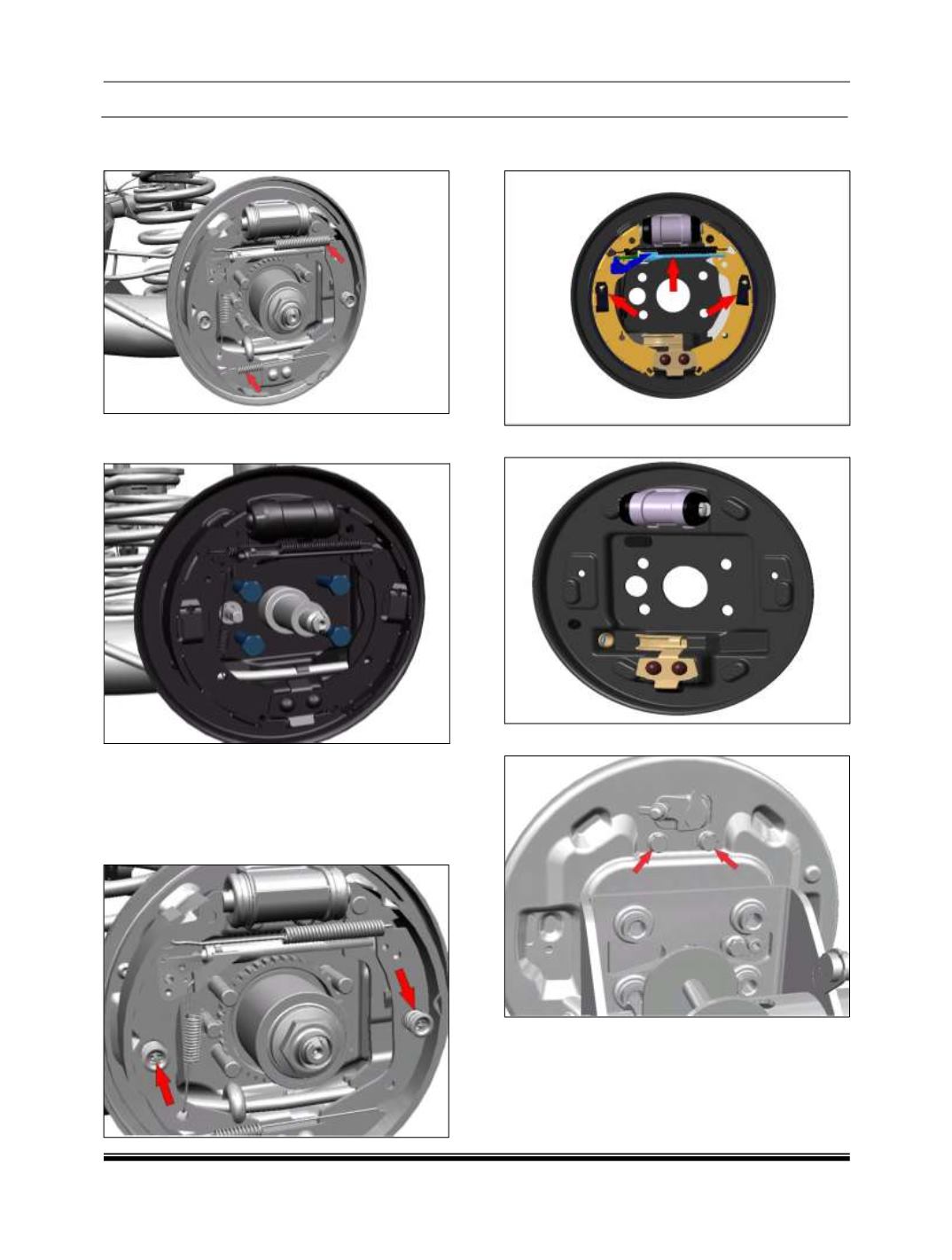

7. Remove the brake shoe return springs by
using a brake spring tool.
8. Unscrew the mounting bolts of the back plate
and Remove the back plate
9. Remove the brake shoe hold-down springs.
Press against the head of the hold-down pin at
the rear of the backing plate with finger, then
compress the hold-down spring with a plier or
brake hold-down spring tool. Turn the cup/tool
to remove it from the pin
(IF APPLICABLE).
10.Remove brake adjuster assembly along with
shoe holding clips.
11.Remove brake shoes.
12.Remove brake cylinder bolts.
