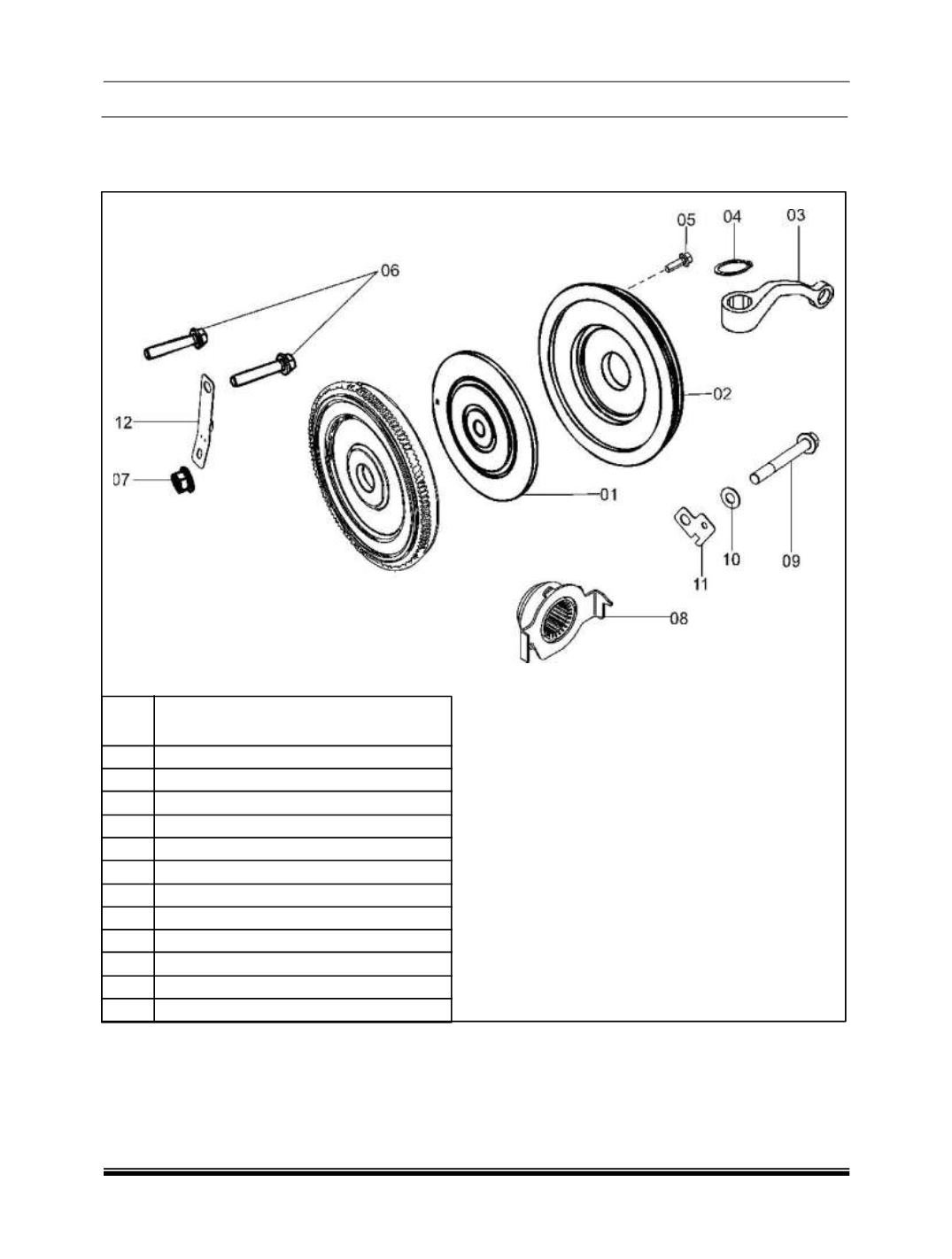

G EXPLODED VIEW
(1) CLUTCH ASSEMBLY - QUADRAJET
ITEM DESCRIPTION
NO.
01
ASSY. 215 DIA. CLUTCH DISC
02
ASSY. 215 DIA. CLUTCH COVERS
03
CLUTCH RELEASE LEVER (HYD)
04
EXT.CIRCLIP
05
H/FL SCR M6X16
06
FL SCR M12X1.25X65
07
HEX FL NUT AM12X1.25
08
CLUTCH REL BRG
09
FLBOLT M12X1.25X100
10
DISC SPRING
11
REVERSE LAMP MTG BKT
12
BATTERY CABLE MTG BKT
